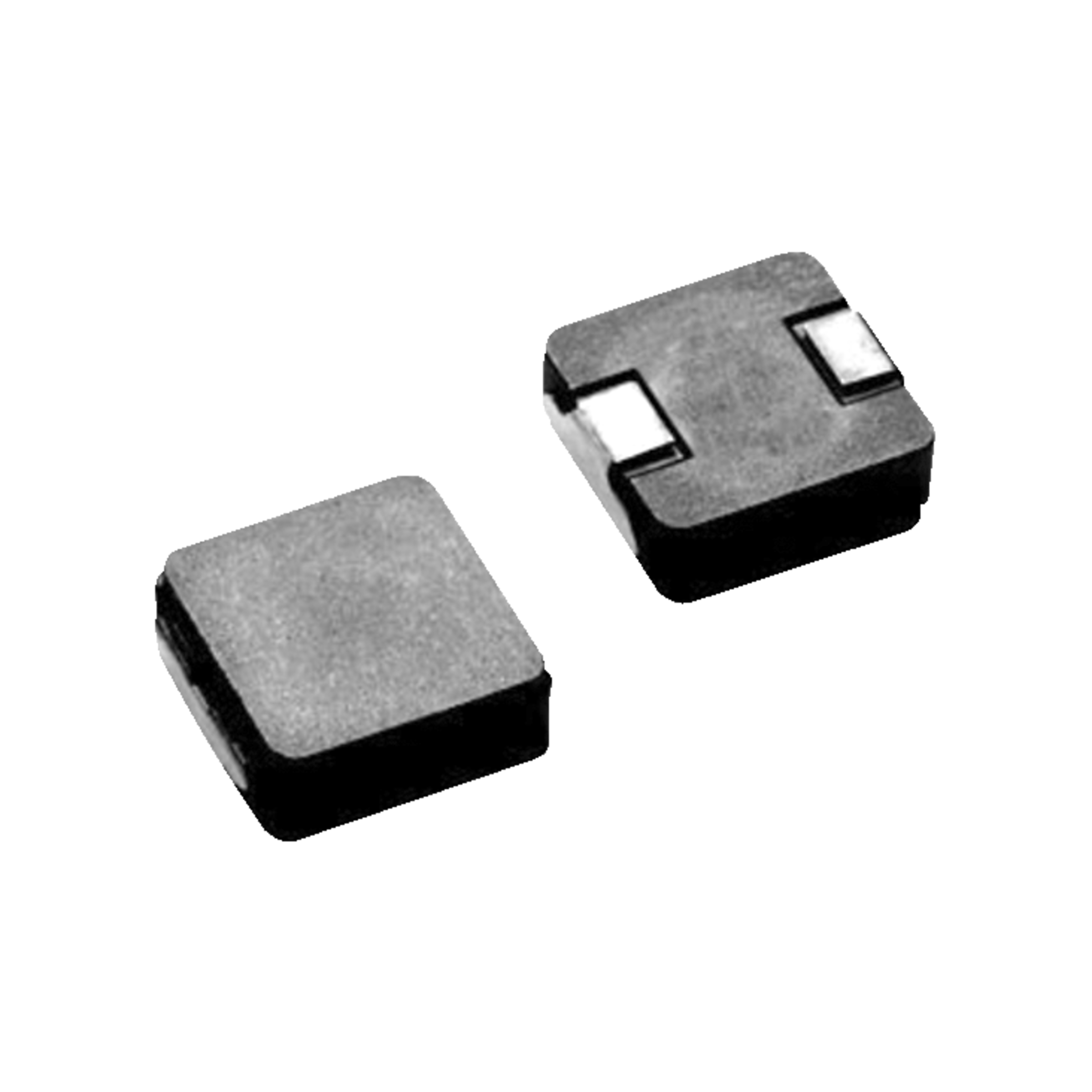

IHLP4040DZER150M11
Vishay Inductors throttle IHLP-4040DZ-11 6,25A 15µH -20-20% 10,79mm 10,16mm 4mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
105 Pcs. in stock
Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Kind
- throttle
- Inductance
- 15 µH
- Inductance tolerance
- -20 %
- Nominal resistance
- 40,9 mOhm
- Rated current
- 6.25 A
- Housing
- SMD
- Dimension: Length
- 10.79 mm
- Dimension: Width
- 10.16 mm
- Dimension: Height
- 4 mm
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 10.79 mm
- Dimension: Width
- 10.16 mm
- Dimension: Height
- 4 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 125 °C
Technical features
- Inductance
- 15 µH
- Inductance tolerance
- -20 %
- Nominal resistance
- 40,9 mOhm
- Rated current
- 6.25 A
- Saturation current (30% inductance reduction)
- 6 A
