CRCW06031M00FKEA

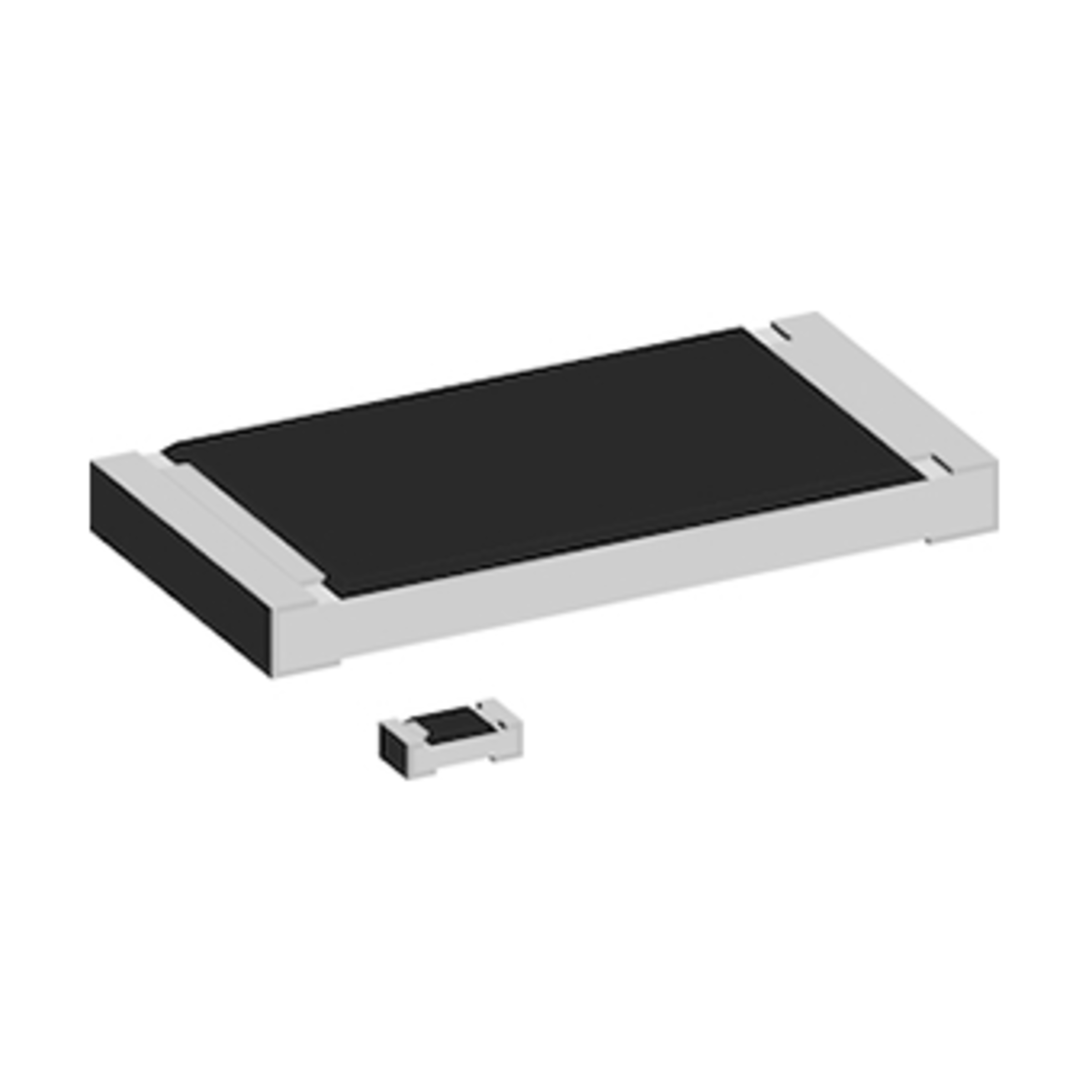

Vishay SMD thick film resistor D11/CRCW0603 e3 0603 0,1W 1MOhm 1% AEC-Q200
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
36.000 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 5000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1000 or multiple of 1000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Thick film resistor
- Series
- D11/CRCW0603 e3
- Housing
- 0603
- Rated power
- 0.1 W
- Resistance
- 1 MOhm
- Resistance tolerance
- 1 %
- Qualification
- AEC-Q200
- RoHS-Conform
Specifications
Open all

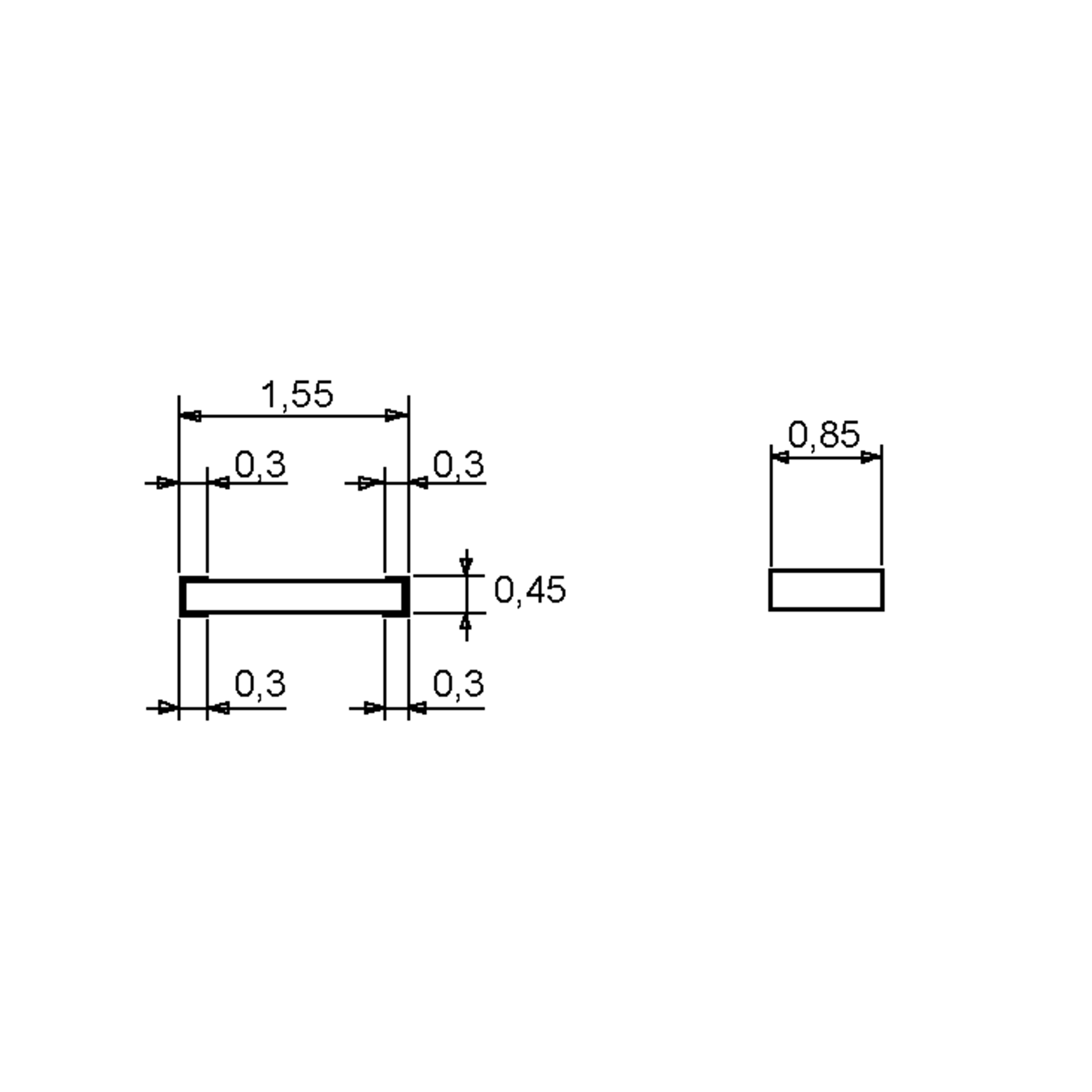

Dimensions and Weights
- Dimension: Length
- 1.55 mm
- Dimension: Width
- 0.85 mm
- Dimension: Height
- 0.45 mm
- Weight
- 0.002 g
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 155 °C
Technical Features
- Resistance value
- 1
- Resistance unit
- MOhm
- Resistance
- 1 MOhm
- Resistance tolerance
- 1 %
- Rated power
- 0.1 W
- Max. Operating voltage (DC)
- 75 V DC
- Max. Operating voltage (AC)
- 75 V AC
- Temperature coefficient
- 100 ppm/°
- Failure rate
- 0,1 x 10^-9/h
- Climate category
- 55/125/56
Safety/Certifications
- Qualification
- AEC-Q200
- Standards
- EN 140401-802, EN 60115-1, EN 60115-8, IEC 60068
Documents
PCN_DBR-00006-2024-REV-0-VERSION-38046_EN.pdf
