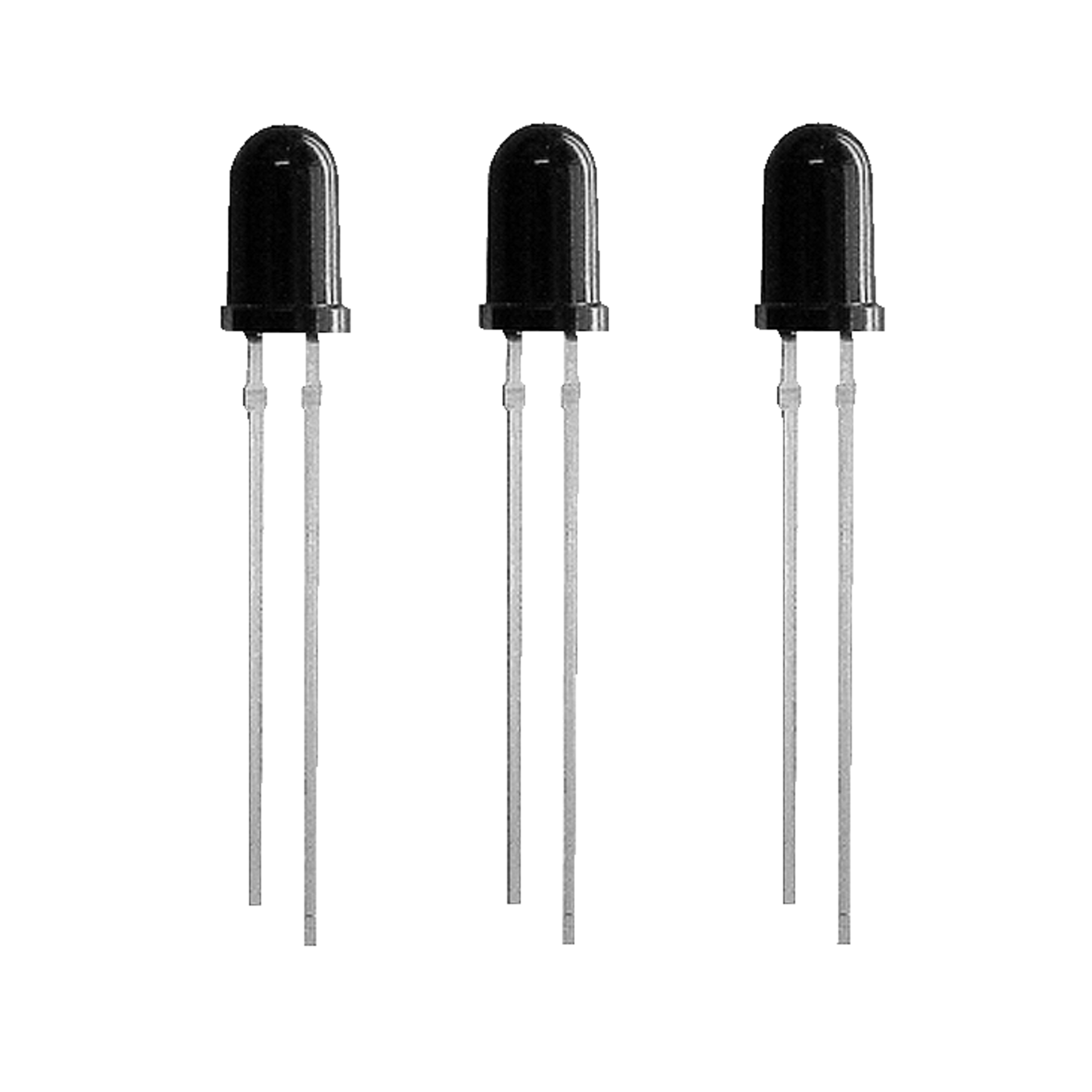

BPV10NF
Vishay THT Photodiode 5nA 940nm 40° 5mm
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
20.600 Pcs. in stock
Planned delivery time
Ø 50 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 100 °C
Electrical properties
- (Ubr) Breakdown Voltage
- 60 V
- Dark Current
- 5 nA
- Wavelength Of Peak Sensitivity
- 940 Nm
- Angle Of Half Sensitivity
- 40 °
- Daylight Blocking
- yes
- (IS) Light Current
- 60 µA
- Lens Colour
- black
