357BO102MAB251S22

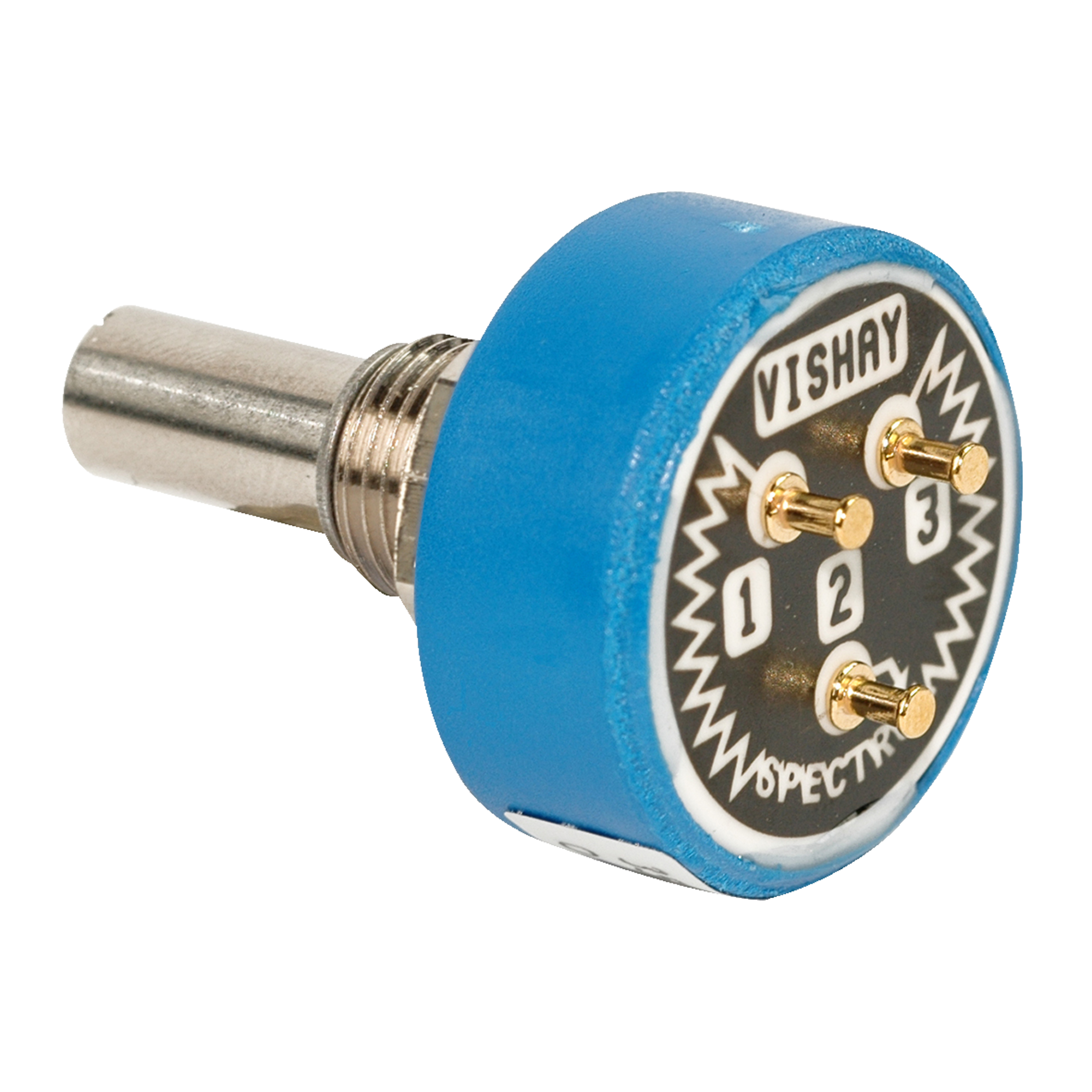

Vishay Conductive plastic potentiometer 357 linear 1W 1kOhm 20% Shaft-Ø6,35mm metal
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
41 Pcs. in stock
Planned delivery time
Ø 15 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable dials, knurled discs and plug-in-axles. - Type
- Conductive plastic potentiometer
- Series
- 357
- Resistance curve
- linear
- Resistance
- 1 kOhm
- Resistance tolerance
- 20 %
- Diameter, shaft
- 6.35 mm
- Length, shaft
- 22 mm
- Shaft
- metal
- RoHS-Conform
Specifications
Open all

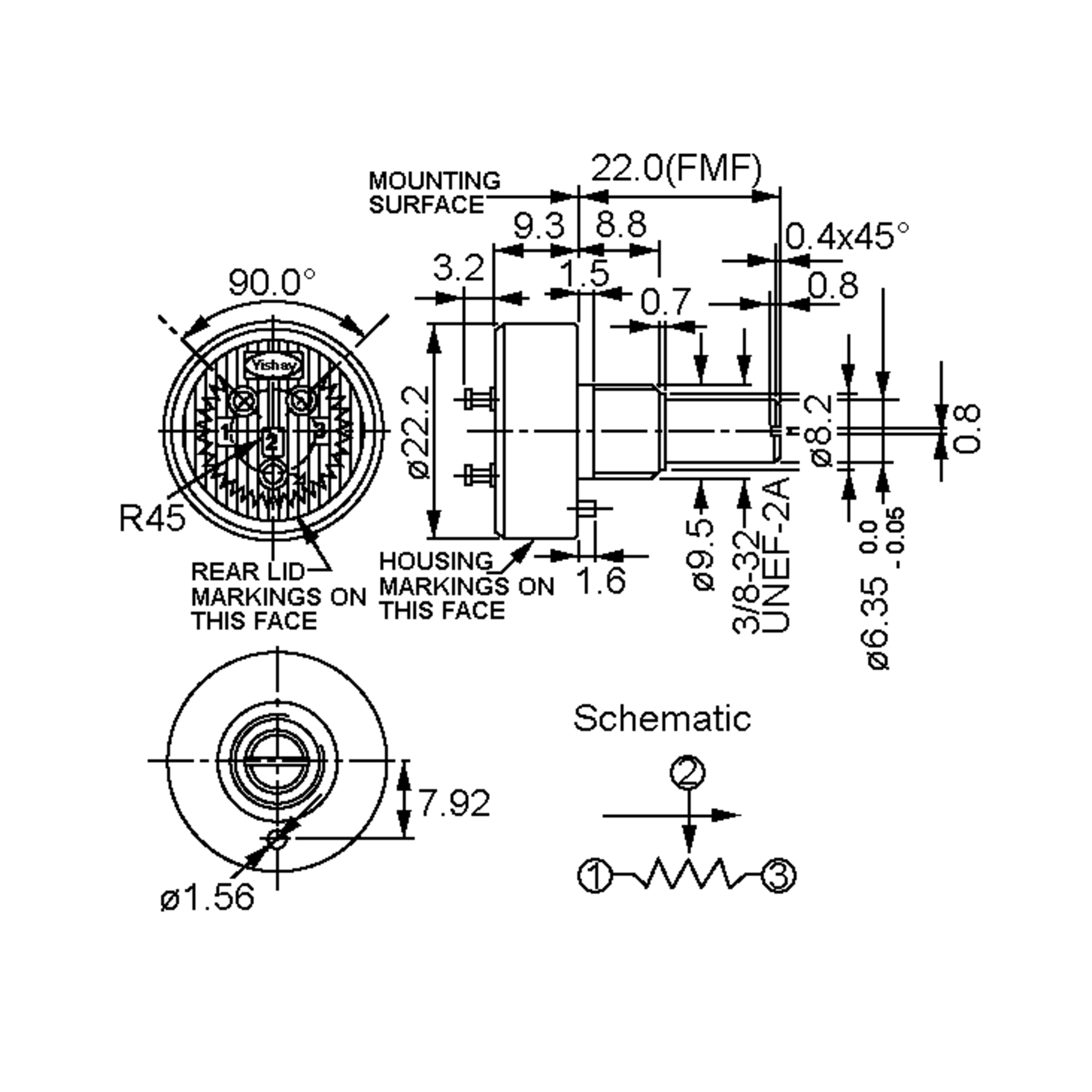

Dimensions and Weights
- Weight
- 17.5 g
- Diameter Body
- 22.2 mm
- Length, shaft
- 22 mm
- Diameter, shaft
- 6.35 mm
- Shaft
- metal
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 125 °C
Technical Features
- Resistance value
- 1
- Resistance unit
- kOhm
- Resistance
- 1 kOhm
- Resistance tolerance
- 20 %
- Resistance curve
- linear
- Rated power
- 1 W
- Dielectric strength (RMS)
- 1,000 V
- Insulation resistance
- 1.000 MOhm
Mechanical Features
- Number of connections
- 3
- Rotation angle, mechanical
- 360 °
- Rotation angle, electric
- 340 °
