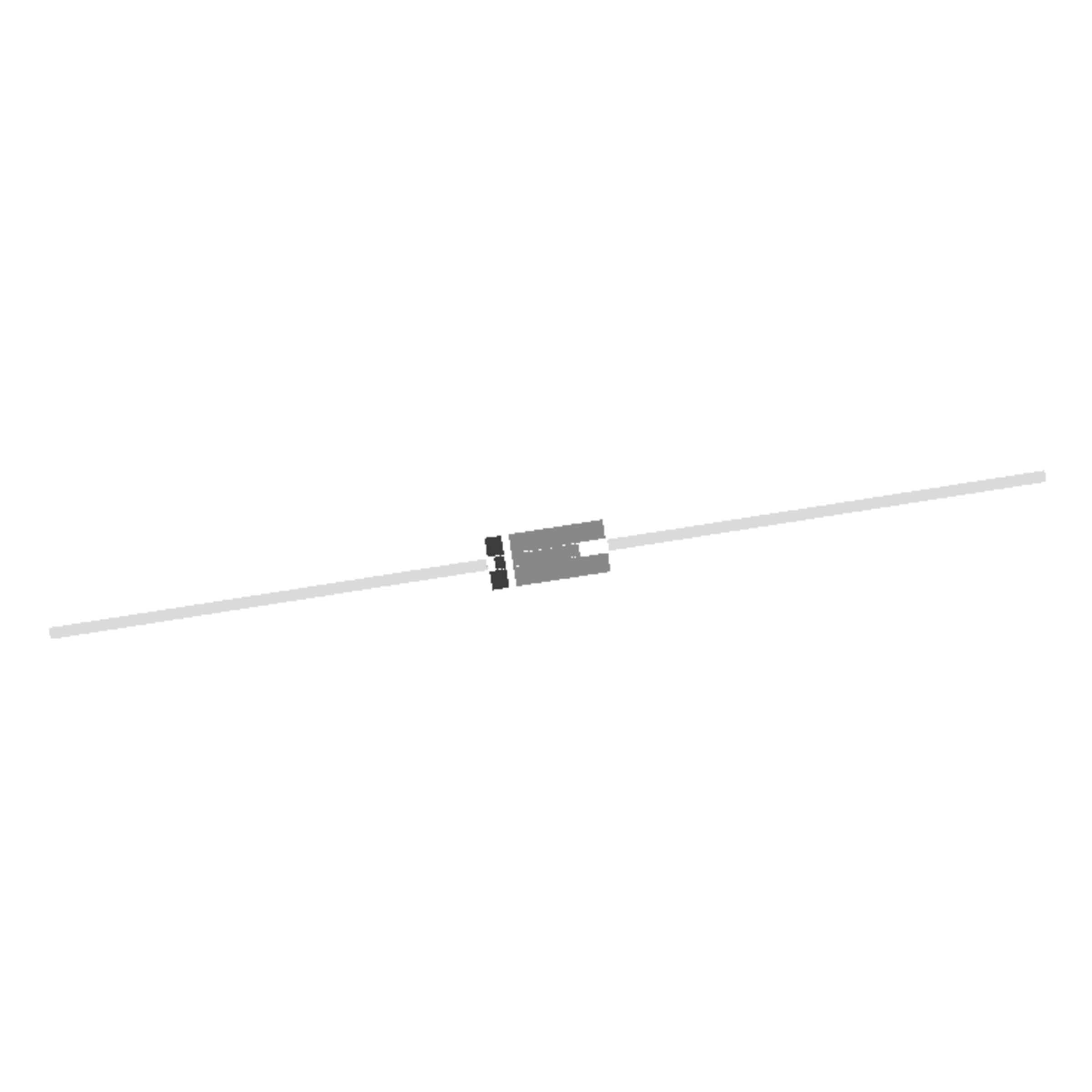

1N4148-TR
Vishay THT Si Standard Diode 100V 1V 300mA DO-35
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
16.000 Pcs. in stock
Next Stock Receipt
Week 03/2025
20.000 Pcs.
20.000 Pcs.
Planned delivery time
Ø 9 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1000 or multiple of 1000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- (Uf) Forward Voltage
- 1 V
- (If) Forward Current
- 300 mA
- Peak Let-Through Surrent Max.
- 2,000 mA
- (Ur) Reverse Voltage
- 75 V
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Max.
- 175 °C
- Storage Temperature Min.
- -65 °C
- Storage Temperature Max.
- 150 °C
Electrical properties
- (Uf) Forward Voltage
- 1 V
- (If) Forward Current
- 300 mA
- Peak Let-Through Surrent Max.
- 2,000 mA
- (Urrm) Peak Recurrent Reverse Voltage Max.
- 100 V
- (Ur) Reverse Voltage
- 75 V
- (Ir) Reverse Current
- 5,000 nA
- (Pd) Power Dissipation
- 0.5 W
- Reset Time
- 8 ns
Conformity
- REACH Notice
- REACh Art. 33: contains Lead CAS# 7439-92-1
