DRGR875MB681

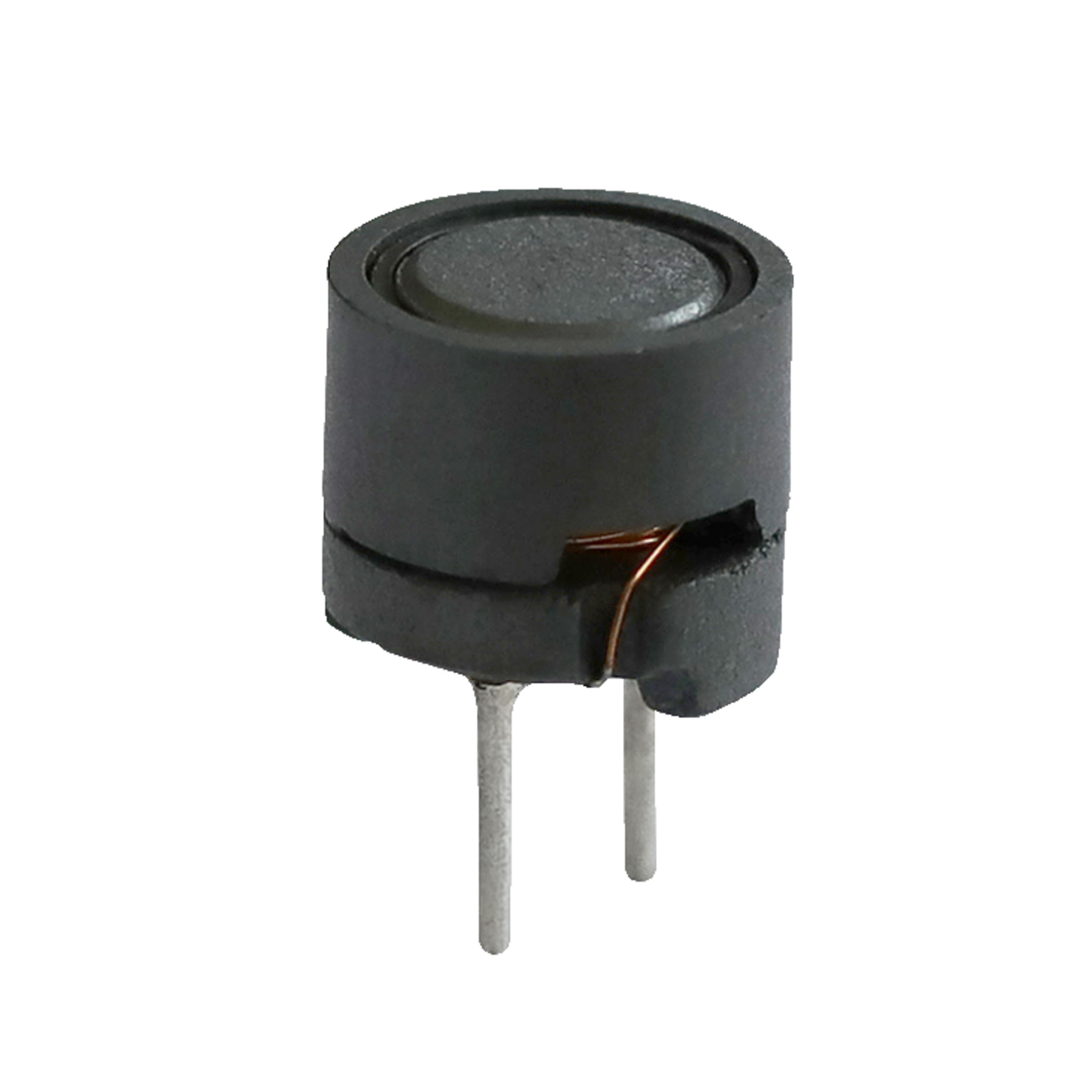

Viking Tech Corporation Inductors DRGR875 0,28A 680µH -20-20% 7,5mm 7,8mm THT, radial
Manufacturer Part No.
DRGR875MB681
Schukat Part No.
DRGR875MB681
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
300 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 200 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Inductance
- 680 µH
- Inductance tolerance
- -20 %
- Nominal resistance
- 2,07 Ohm
- Rated current
- 0.28 A
- Housing
- THT, radial
- Dimension: Length
- 7.5 mm
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Diameter
- 7.8 mm
- Dimension: Length
- 7.5 mm
- Wire diameter
- 0.65 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 125 °C
Technical features
- Inductance
- 680 µH
- Inductance tolerance
- -20 %
- Nominal resistance
- 2,07 Ohm
- Rated current
- 0.28 A
- Test frequency of Q
- 1 kHz
