DRGH110KB331

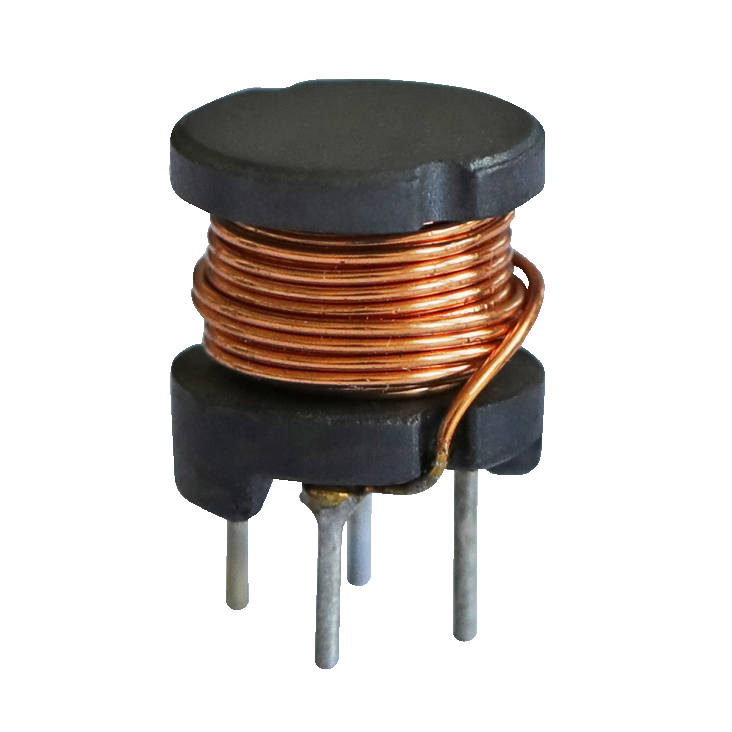

Viking Tech Corporation Inductors DRGH110 0,93A 330µH -10-10% 10,5mm 10mm THT, radial
Manufacturer Part No.
DRGH110KB331
Schukat Part No.
DRGH110KB331
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1.296 Pcs.
1.296 Pcs.
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 144 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1296 or multiple of 1296)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Inductance
- 330 µH
- Inductance tolerance
- -10 %
- Nominal resistance
- 0,520 Ohm
- Rated current
- 0.93 A
- Housing
- THT, radial
- Dimension: Length
- 10.5 mm
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Diameter
- 10 mm
- Dimension: Length
- 10.5 mm
- Wire diameter
- 0.8 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 125 °C
Technical features
- Inductance
- 330 µH
- Inductance tolerance
- -10 %
- Nominal resistance
- 0,520 Ohm
- Rated current
- 0.93 A
- Test frequency of Q
- 1 kHz
