CSRV0207FTDT1004

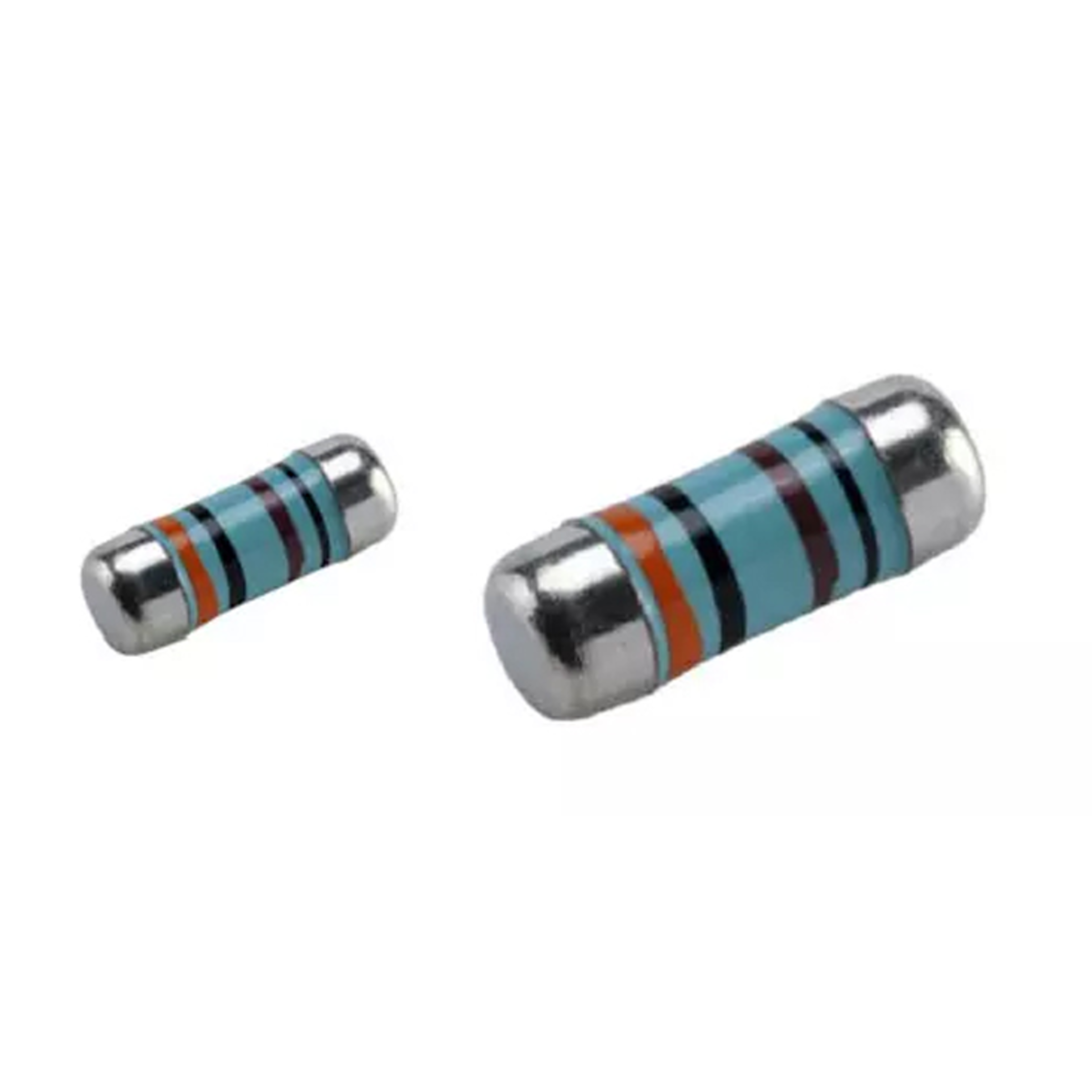

Viking Tech Corporation Precision resistor MELF CSRV0207 SMD 0207 1W 1MOhm 1% AEC-Q200
Manufacturer Part No.
CSRV0207FTDT1004
Schukat Part No.
CSRV0207FTDT1004
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
3.500 Pcs. in stock
Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 2000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Resistance value
- 1 MOhm
- Resistance tolerance
- 1 %
- Rated power
- 1 W
- Housing
- 0207
- RoHS-Conform
Specifications
Open all

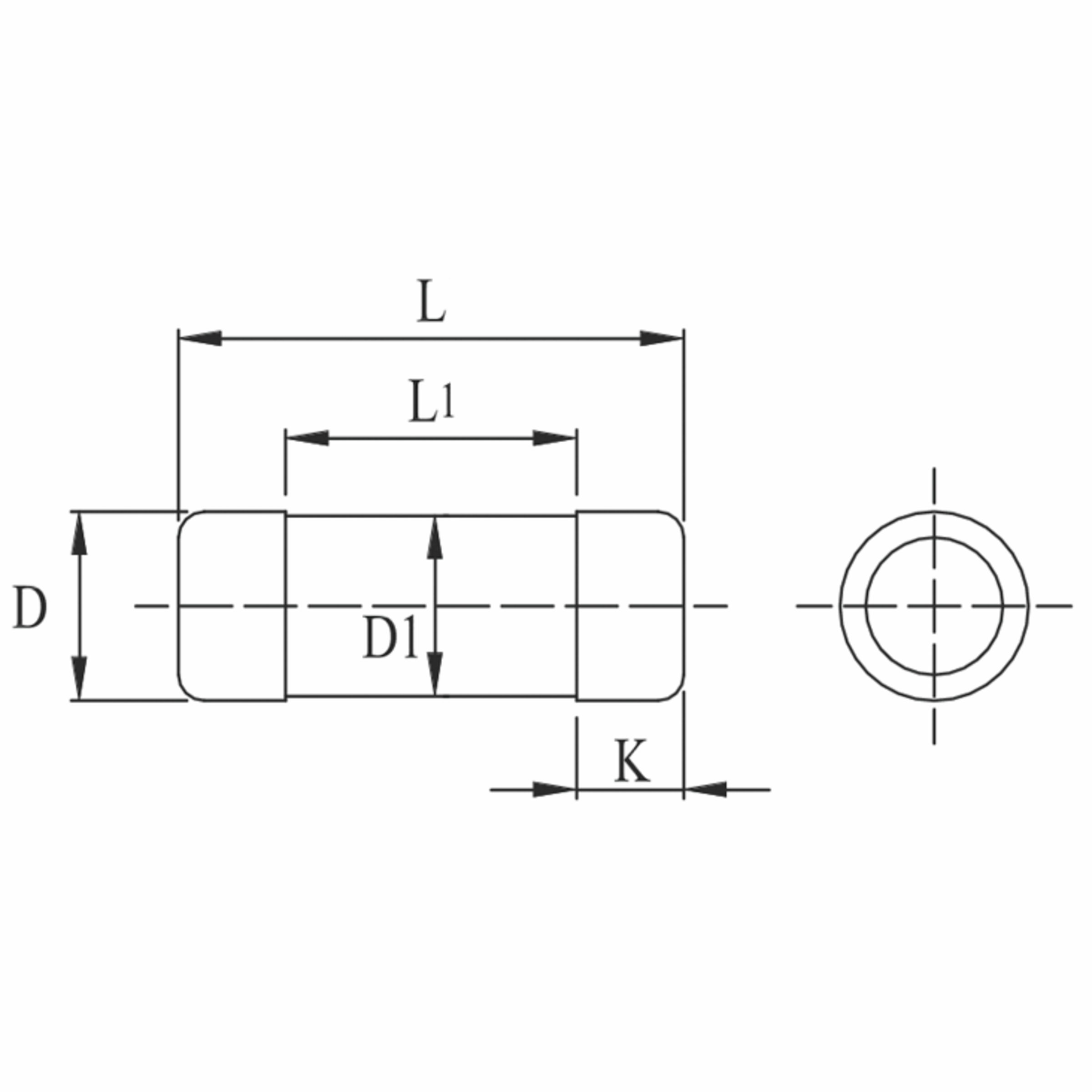

Dimensions and weights
- Dimension: Length
- 5.9 mm
- Weight
- 0.081 g
- Diameter, resistor body
- 2.2 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 155 °C
Technical features
- Resistance value
- 1
- Resistance unit
- MOhm
- Resistance value
- 1 MOhm
- Resistance tolerance
- 1 %
- Rated current
- 5,000 mA
- Rated power
- 1 W
- Max. Operating voltage (DC)
- 350 V DC
- Rated Voltage
- 200 V
- Temperature coefficient
- 50 ppm/°
Safety/Certifications
- Qualification
- AEC-Q200
