6430 501 511

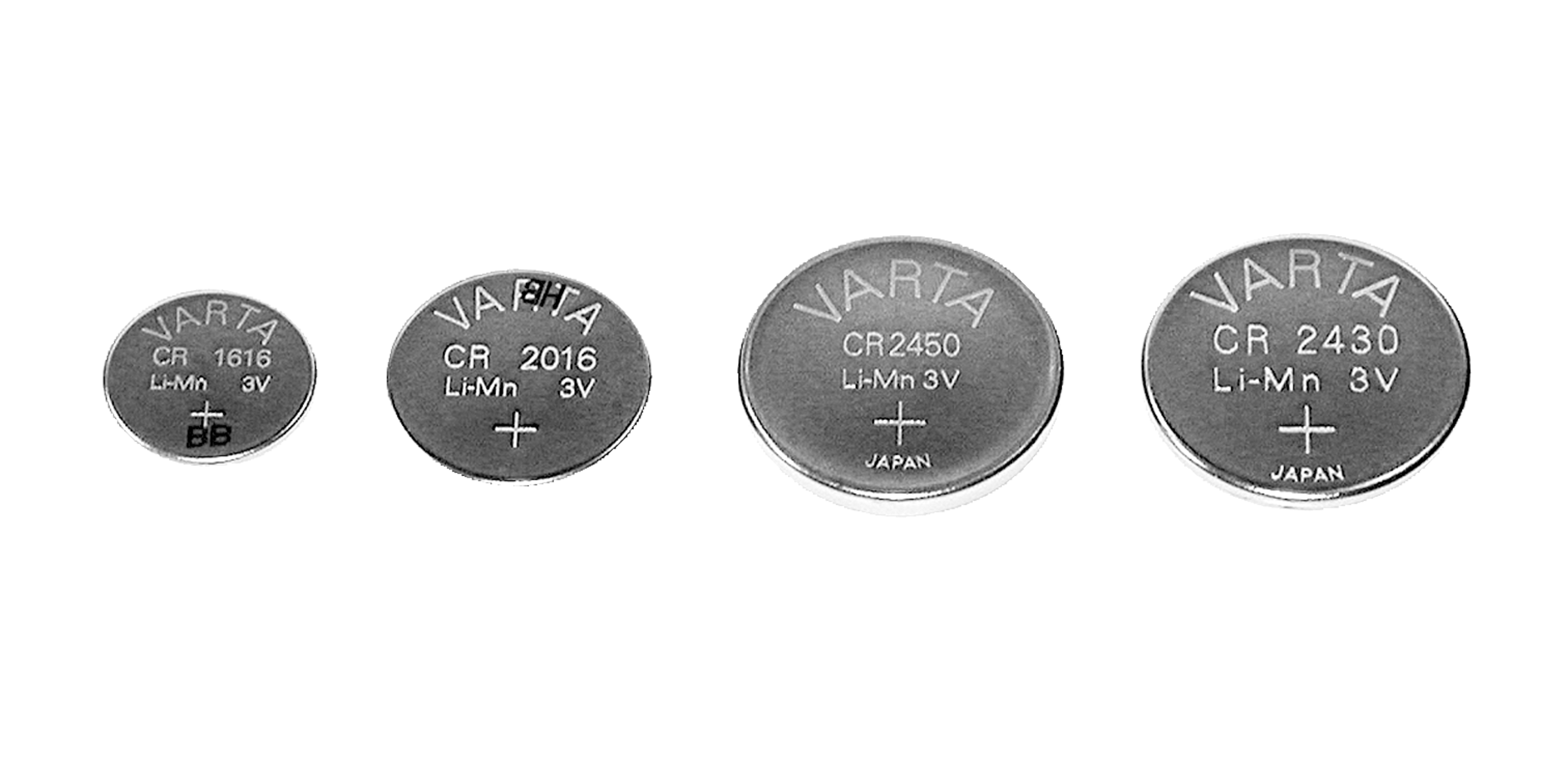

Varta Lithium manganese dioxide (LiMn2O4) Button Cell 6430 CR2430 3V 280mAh
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
460 Pcs. in stock
Planned delivery time
Ø 29 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 20 or multiple of 20)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- UN Number (Dangerous Goods)
- 3090 - Lithium Metal Battery
- Rated Voltage
- 3 V
- Nominal capacity
- 280 mAh
- Chemical system
- Lithium manganese dioxide (LiMn2O4)
- IEC Code
- CR2430
Specifications
Open all
Operating conditions
- Self-discharge (% p.m.)
- 0.083 %/Monat
- Storage Temperature Min.
- -55 °C
- Storage Temperature Max.
- 70 °C
- Shelf life (years)
- 10
Electrical features
- Nominal capacity
- 280 mAh
- Energy storage, capacity
- 0.84 Wh
- Rated Voltage
- 3 V
Hazardous Substances/Goods
- UN Number (Dangerous Goods)
- 3090 - Lithium Metal Battery
Documents
6430.pdf
MSDS_05_Primary_Lithium_Button_Series_CR_en.pdf
