6206101511

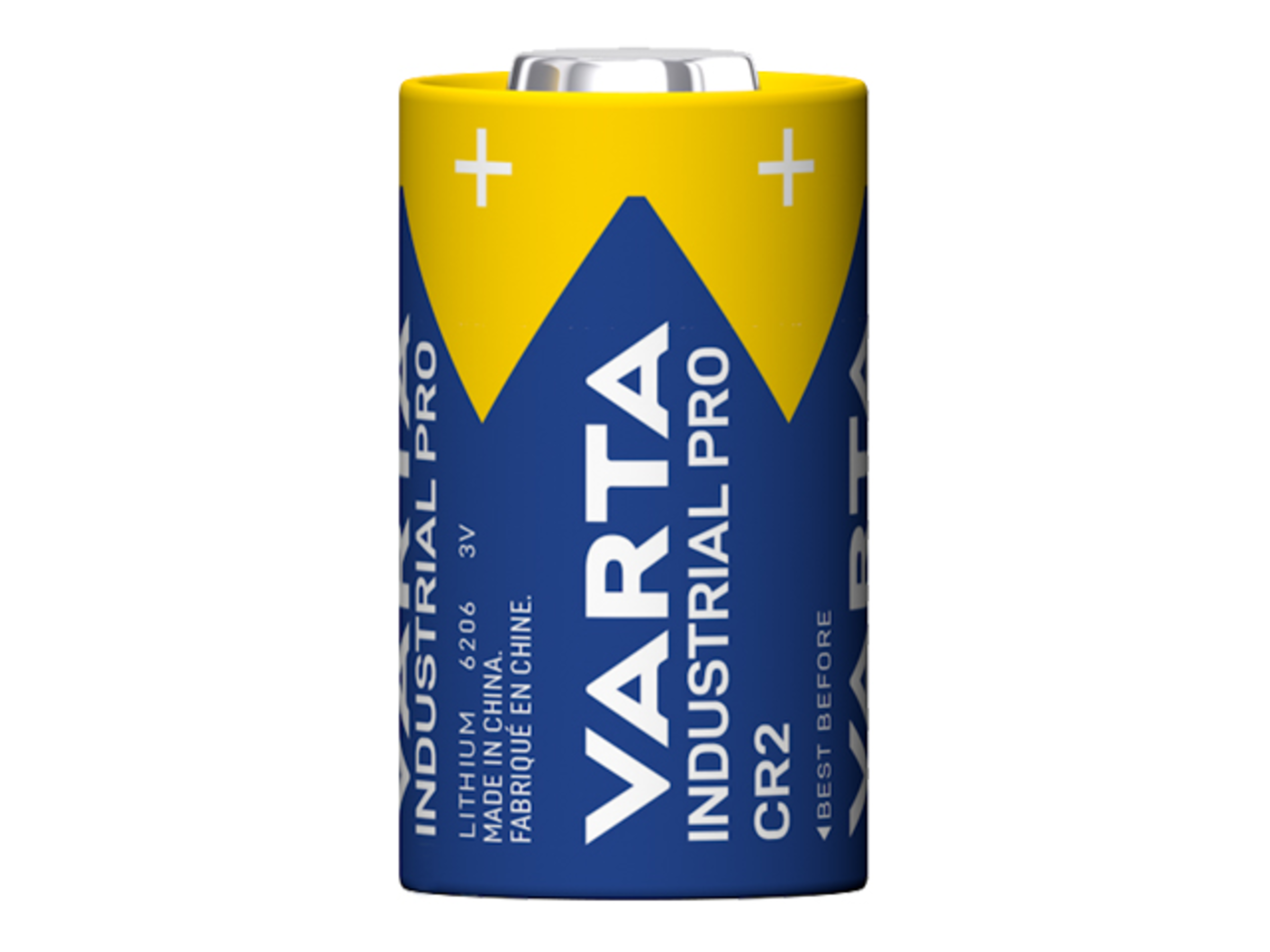

Varta Lithium manganese dioxide (LiMn2O4) Round Cell 6206 3V CR2 CR15H270
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
626 Pcs. in stock
Planned delivery time
Ø 17 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 660 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- UN Number (Dangerous Goods)
- 3090 - Lithium Metal Battery
- Rated Voltage
- 3 V
- Nominal capacity
- 850 mAh
- Chemical system
- Lithium manganese dioxide (LiMn2O4)
- IEC Code
- CR2
- Other designation
- CR15H270
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating temperature min.
- -20 °C
- Operating temperature max.
- 60 °C
- Self-discharge (% p.m.)
- 0.083 %/Monat
- Storage Temperature Min.
- -20 °C
- Storage Temperature Max.
- 45 °C
- Shelf life (years)
- 10
Electrical features
- Nominal capacity
- 850 mAh
- Energy storage, capacity
- 2.55 Wh
- Rated Voltage
- 3 V
Hazardous Substances/Goods
- UN Number (Dangerous Goods)
- 3090 - Lithium Metal Battery
Documents
6206.pdf
MSDS_07_Primary_Lithium_Cylindrical_Series_CR_Coiled_en.pdf
