6127 201 301

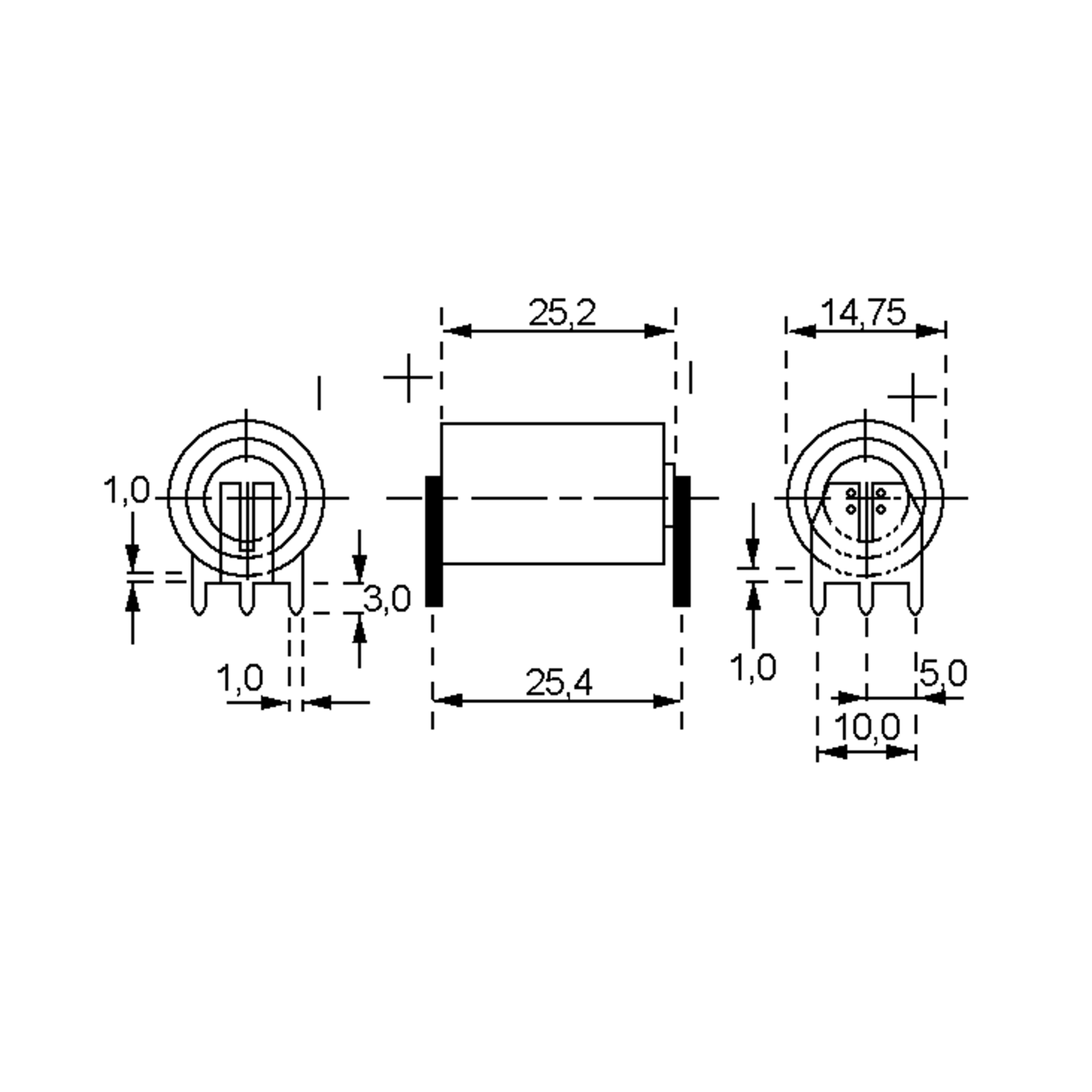

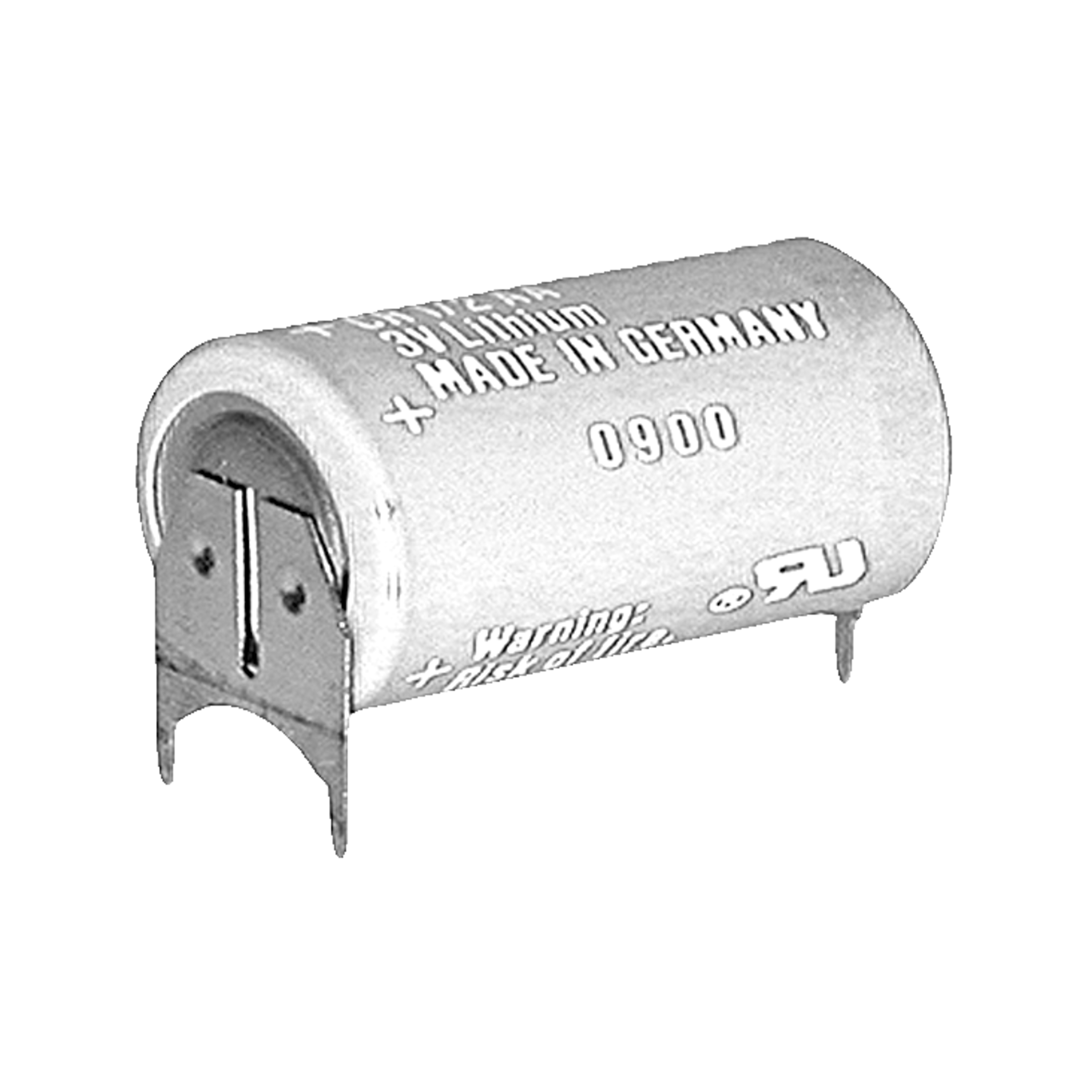

Varta Lithium Manganese Dioxide Round Cell CR 1/2 AA 3V CR14250 1/2AA Polarized Tags
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.507 Pcs. in stock
Planned delivery time
Ø 5 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 150 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Rated Voltage
- 3 V
- Nominal capacity
- 950 mAh
- Chemical system
- Lithium Manganese Dioxide
- IEC Code
- CR14250
- Other designation
- 1/2AA
Specifications
Open all
Operating conditions
- Operating temperature min.
- -30 °C
- Operating temperature max.
- 75 °C
- Storage Temperature Min.
- -55 °C
- Storage Temperature Max.
- 75 °C
Electrical features
- Nominal capacity
- 950 mAh
- Rated Voltage
- 3 V
Hazardous Substances/Goods
- UN number
- 3090 - Lithium metal battery
Documents
MSDS_08_Primary_Lithium_Cylindrical_Series_CR_en.pdf
MSDS_08_Primary_Lithium_Cylindrical_Series_CR_en.pdf
