55615602059

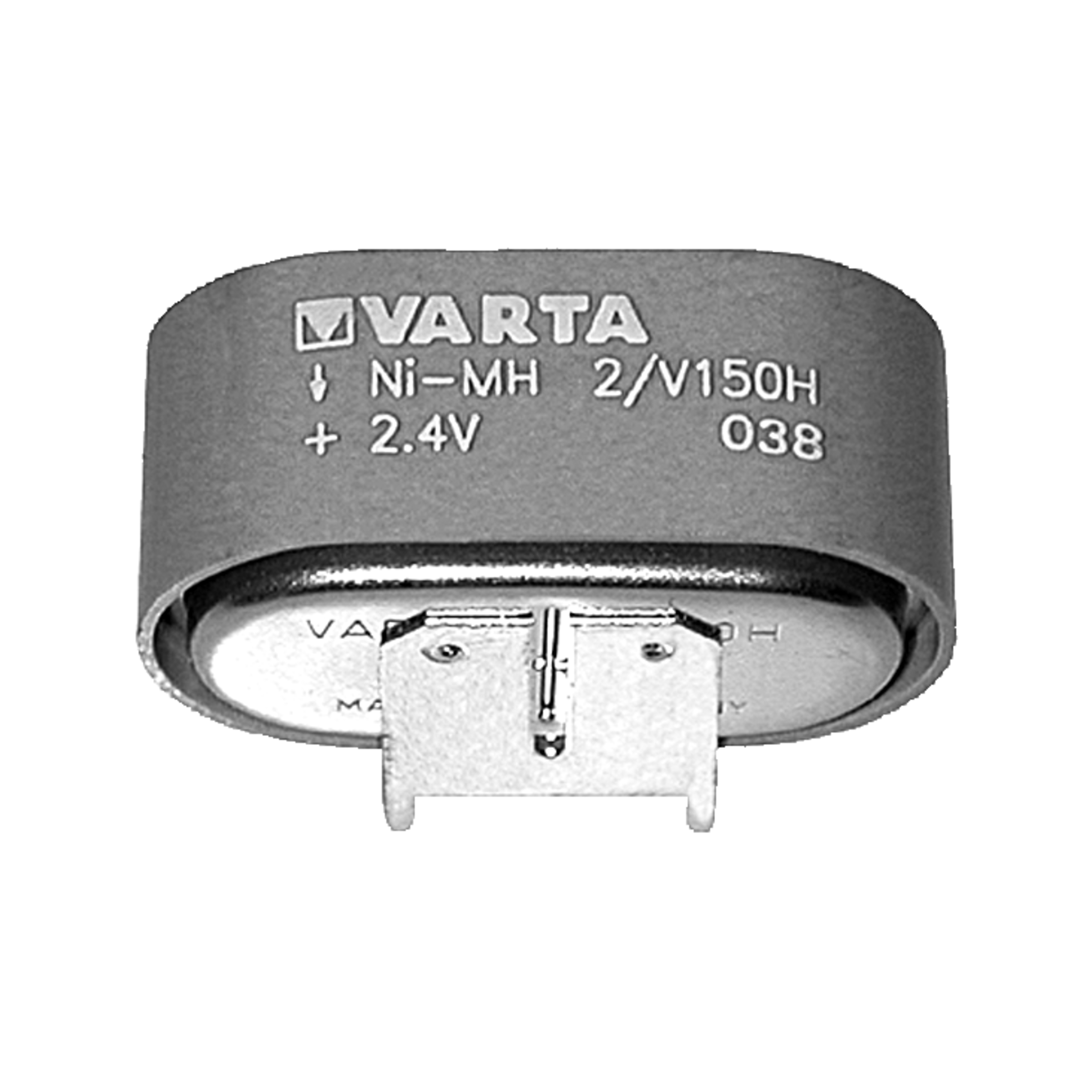

Varta Battery pack Button Cell Accu V 150 H Nickel metal hydride (NiMH) 2,4V 150mAh
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
447 Pcs. in stock
Planned delivery time
Ø 17 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 17 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- UN Number (Dangerous Goods)
- 3496 - Batteries, Nickel Metal Hydride
- Rated Voltage
- 2.4 V
- Nominal capacity
- 150 mAh
- Chemical system
- Nickel metal hydride (NiMH)
Specifications
Open all
Operating conditions
- Operating temperature, charge, min.
- 0 °C
- Operating temperature, charge, max.
- 65 °C
- Operating temperature, discharge, min.
- -20 °C
- Operating temperature, discharge, max.
- 65 °C
- Shelf life, IEC
- 1,000 Zyklen
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 65 °C
Electrical features
- Nominal capacity
- 150 mAh
- Impedance
- 130 mOhm
- Rated Voltage
- 2.4 V
- Charge current, standard
- 14 mA
- Charge current, fast
- 70 mA
- Discharge current, max.
- 280 mA
Safety/Certifications
- Approvals
- UL
Hazardous Substances/Goods
- UN Number (Dangerous Goods)
- 3496 - Batteries, Nickel Metal Hydride
Documents
MSDS_02_Rechargeable_NiMH_Button_Series_V_H_HT_HR_HRT_en.pdf
PI_55615602059.pdf
VM_Folder_Rechargeable_Nickel-Metal-Hydrid_Butto_Cells_2022_final.pdf
