55615303059

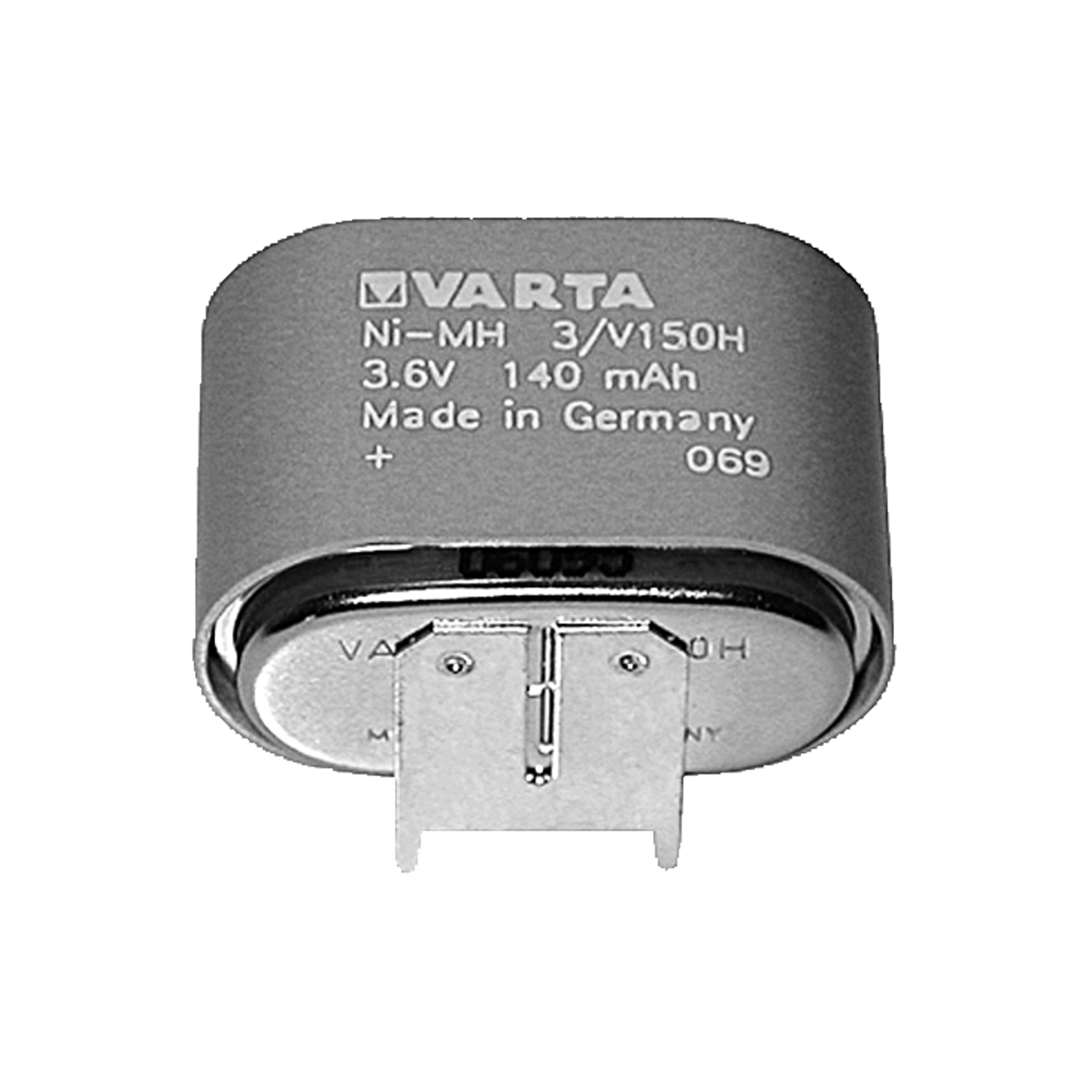

Varta Battery pack Button Cell V 150 H Nickel Metal Hydride 3,6V 150mAh
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
576 Pcs. in stock
Next Stock Receipt
Week 07/2025
295 Pcs.
295 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 495 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Rated Voltage
- 3.6 V
- Nominal capacity
- 150 mAh
- Chemical system
- Nickel Metal Hydride
Specifications
Open all
Operating conditions
- Operating temperature, charge, min.
- 0 °C
- Operating temperature, charge, max.
- 65 °C
- Operating temperature, discharge, min.
- -20 °C
- Operating temperature, discharge, max.
- 65 °C
- Shelf life, IEC
- 1,000 Zyklen
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 65 °C
Electrical features
- Nominal capacity
- 150 mAh
- Impedance
- 130 mOhm
- Rated Voltage
- 3.6 V
- Charge current, standard
- 14 mA
- Charge current, fast
- 70 mA
Safety/Certifications
- Approvals
- UL
