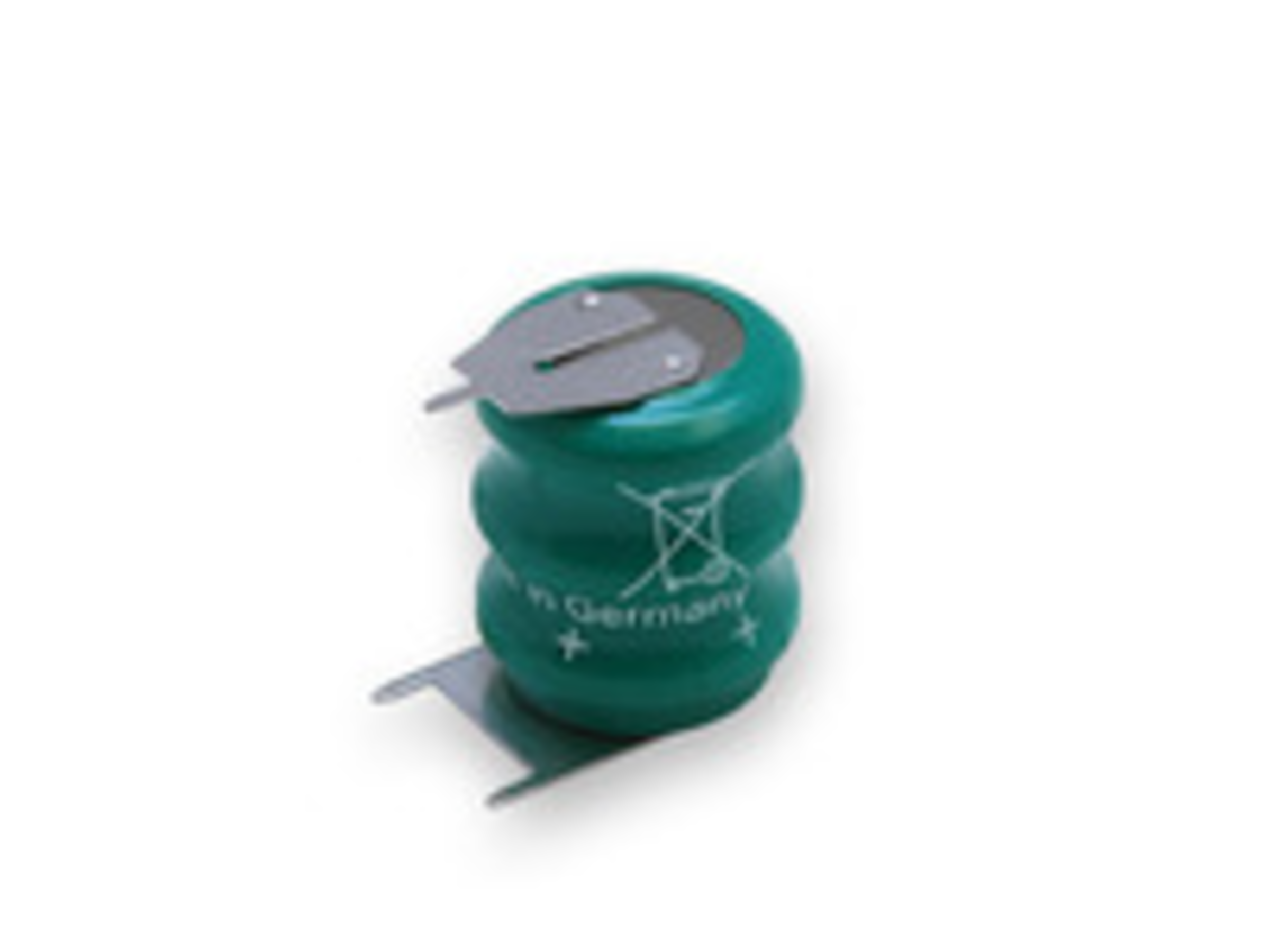

Varta Battery pack Button Cell V 80 H Nickel Metal Hydride 3,6V 80mAh
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
106 Pcs. in stock
Next Stock Receipt
Week 02/2025
55 Pcs.
55 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 120 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Rated Voltage
- 3.6 V
- Nominal capacity
- 80 mAh
- Chemical system
- Nickel Metal Hydride
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating temperature, charge, min.
- 0 °C
- Operating temperature, charge, max.
- 65 °C
- Operating temperature, discharge, min.
- -20 °C
- Operating temperature, discharge, max.
- 65 °C
- Shelf life, IEC
- 1,000 Zyklen
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 65 °C
Electrical features
- Nominal capacity
- 80 mAh
- Impedance
- 220 mOhm
- Rated Voltage
- 3.6 V
- Charge current, standard
- 7 mA
- Charge current, fast
- 35 mA
- Discharge current, max.
- 140 mA
Safety/Certifications
- Approvals
- UL
Documents
071340.pdf
MSDS_02_Rechargeable_NiMH_Button_Series_V_H_HT_HR_HRT_en.pdf
071340.pdf
MSDS_02_Rechargeable_NiMH_Button_Series_V_H_HT_HR_HRT_en.pdf
