2242

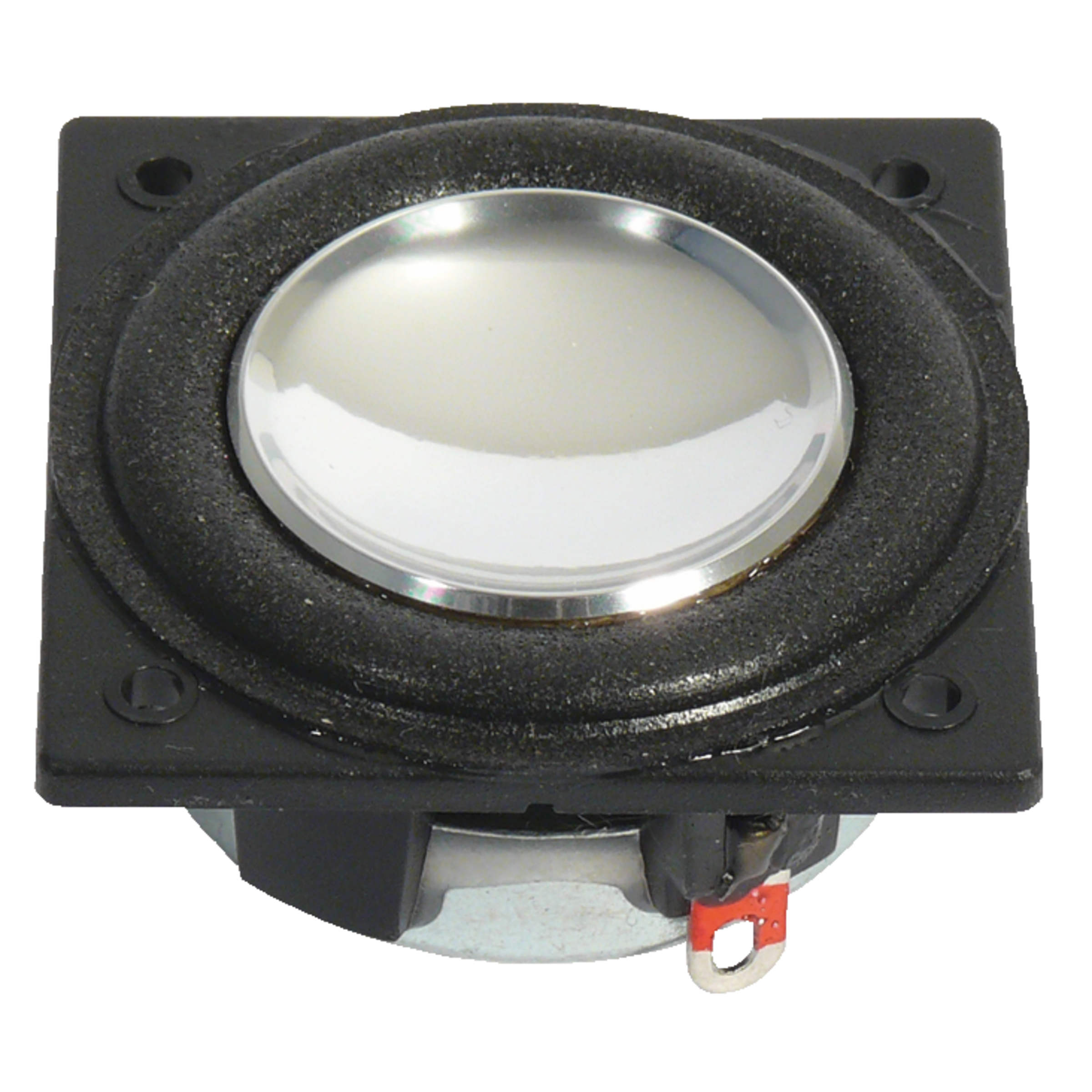

VISATON Speaker BF 32 31,5mm 78dB 8Ohm 280Hz
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
41 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Speaker
- Sound pressure level, min.
- 78 dB
- Impedance
- 8 Ohm
- Rated Power
- 2 W
- Maximum Power
- 5 W
- Resonant frequency
- 280 Hz
- Termination Style
- Solder lug
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 70 °C
Electrical features
- Impedance
- 8 Ohm
- Rated Power
- 2 W
- Maximum Power
- 5 W
- Frequency, min.
- 150 Hz
- Frequency, max.
- 20,000 Hz
- Resonant frequency
- 280 Hz
- Sound pressure level, min.
- 78 dB
