2205

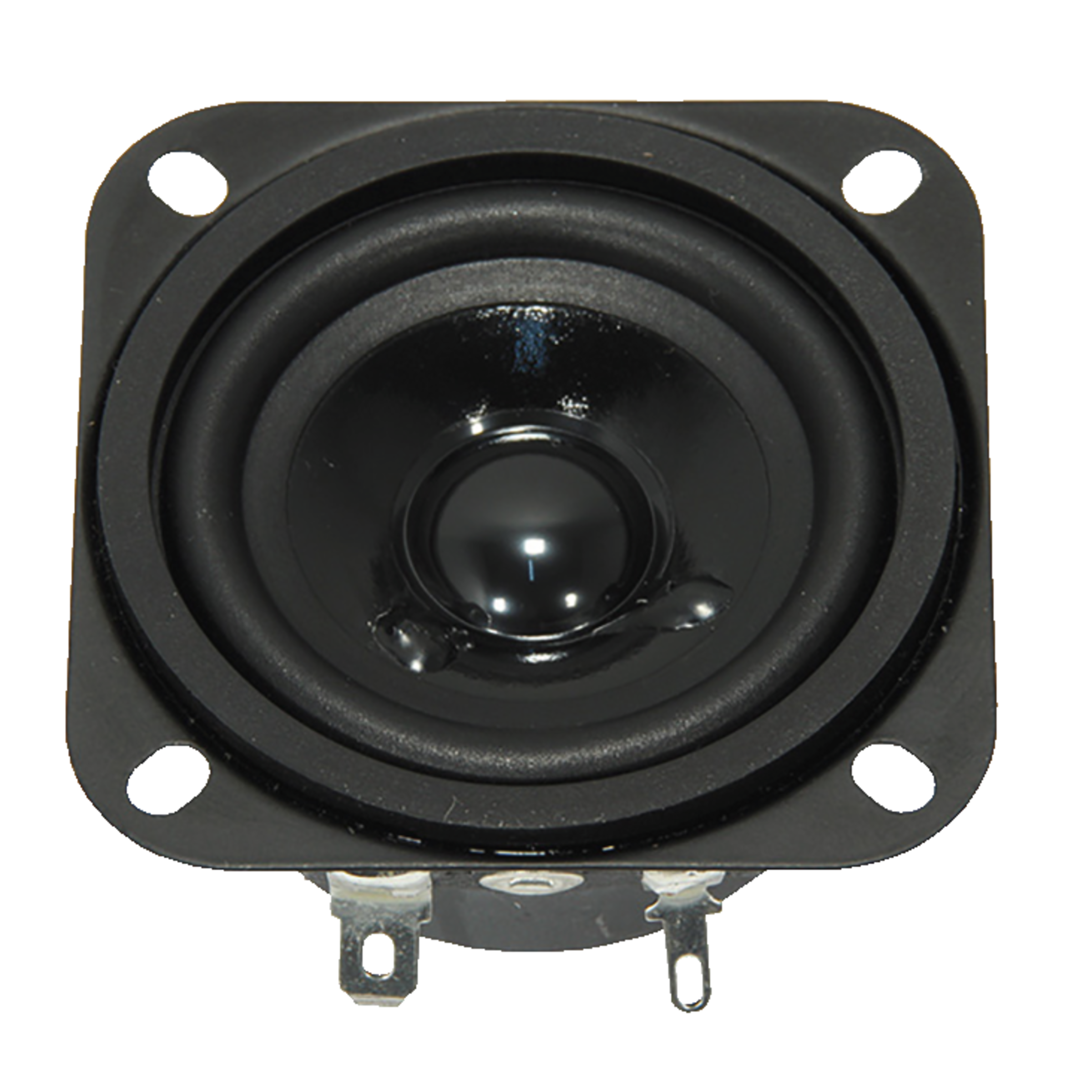

VISATON Speaker FR 58 57mm 81dB 8Ohm 190Hz
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
102 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Speaker
- Sound pressure level, min.
- 81 dB
- Impedance
- 8 Ohm
- Rated Power
- 10 W
- Resonant frequency
- 190 Hz
- Termination Style
- Flat plug
- Protection Class IP
- IP64
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 100 °C
Electrical features
- Impedance
- 8 Ohm
- Rated Power
- 10 W
- Frequency, min.
- 120 Hz
- Frequency, max.
- 20,000 Hz
- Resonant frequency
- 190 Hz
- Sound pressure level, min.
- 81 dB
Safety/Certifications
- Protection Class IP
- IP64
