UG1741L

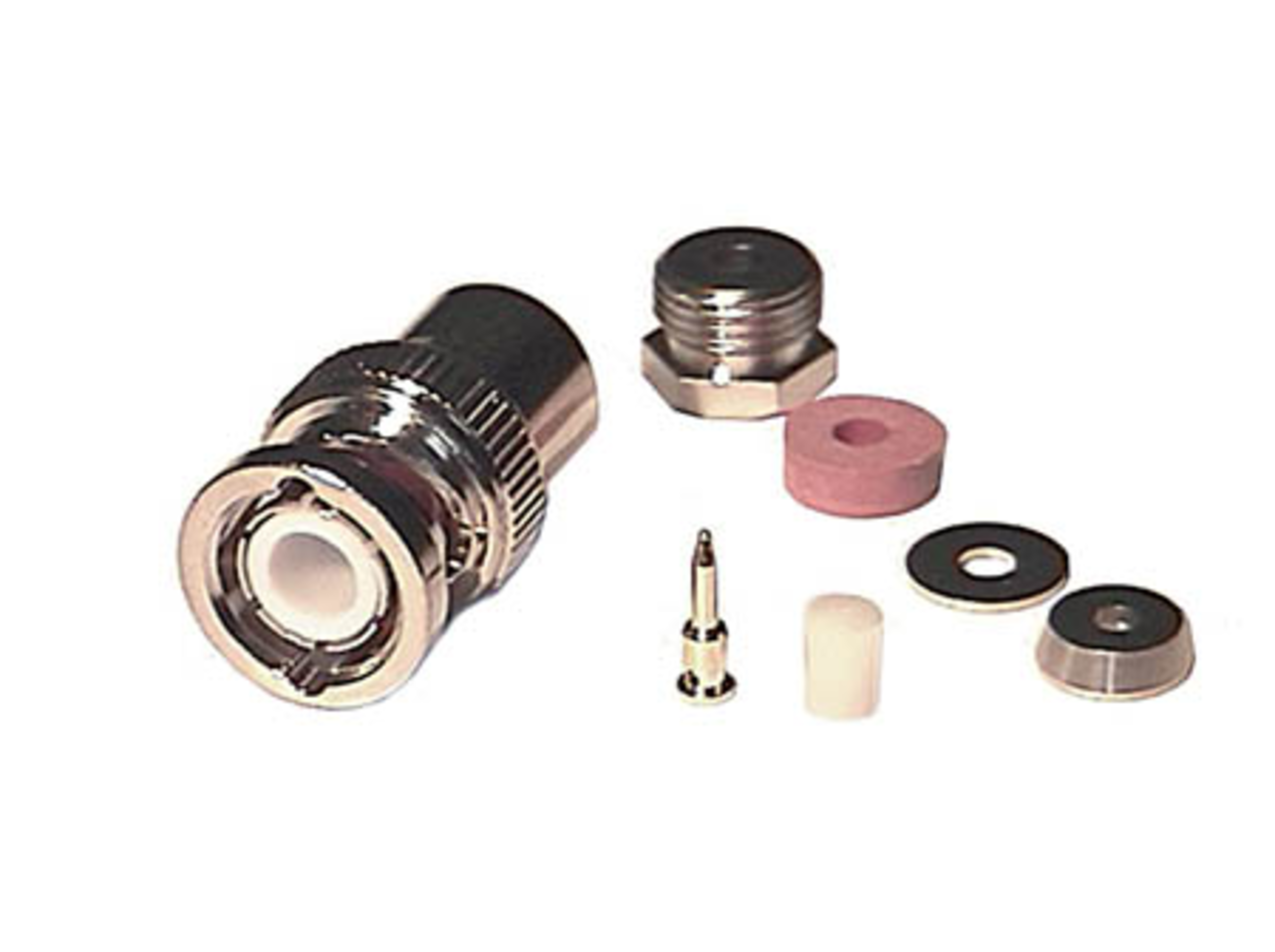

Plug UG1741L Plug Bayonet straight 1 Pole Solder RG174/U RG316U
Manufacturer Part No.
UG1741L
Schukat Part No.
UG1741L
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
60 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Plug
- Type
- Plug
- Connector Contact
- Solder
- Series
- UG1741L
- Housing material
- Brass
- Housing
- round
- Design
- Cable
- Characteristic Impedance
- 50 Ohm
- Insulating body
- Teflon (PTFE)
- Cable diameter, max.
- 2.8 mm
- Number of poles
- 1
- Contact Type
- BNC
- Alignment
- straight
- Locking Type
- Bayonet
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 23.7 mm
- Cable diameter, max.
- 2.8 mm
Technical Features
- Test voltage
- 1,500 V AC
- Insulation resistance
- 5.000 mOhm
- Characteristic Impedance
- 50 Ohm
- Contact resistance, inner contact
- 1,5 x 10^-3 Ohm
- Contact resistance, outer contact
- 1,0 x 10^-3 Ohm
Mechanical Features
- Durability
- 500
- Housing material
- Brass
- Insulating body
- Teflon (PTFE)
- Contact Surface Input
- vergoldet
- Crimp sleeve
- Copper, nickel plated
- Frequency range
- 0...1 GHz
