Results (327)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Type | Manufacturer | Assembly Type | Housing | Actuation | Resistance value | Resistance unit | Resistance tolerance | Rated power | Shaft | Rotation angle, mechanical | Dimension: Length | Dimension: Width | Dimension: Height | Diameter, housing | Pitch | Operating Temperature Min. | Operating Temperature Max. | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

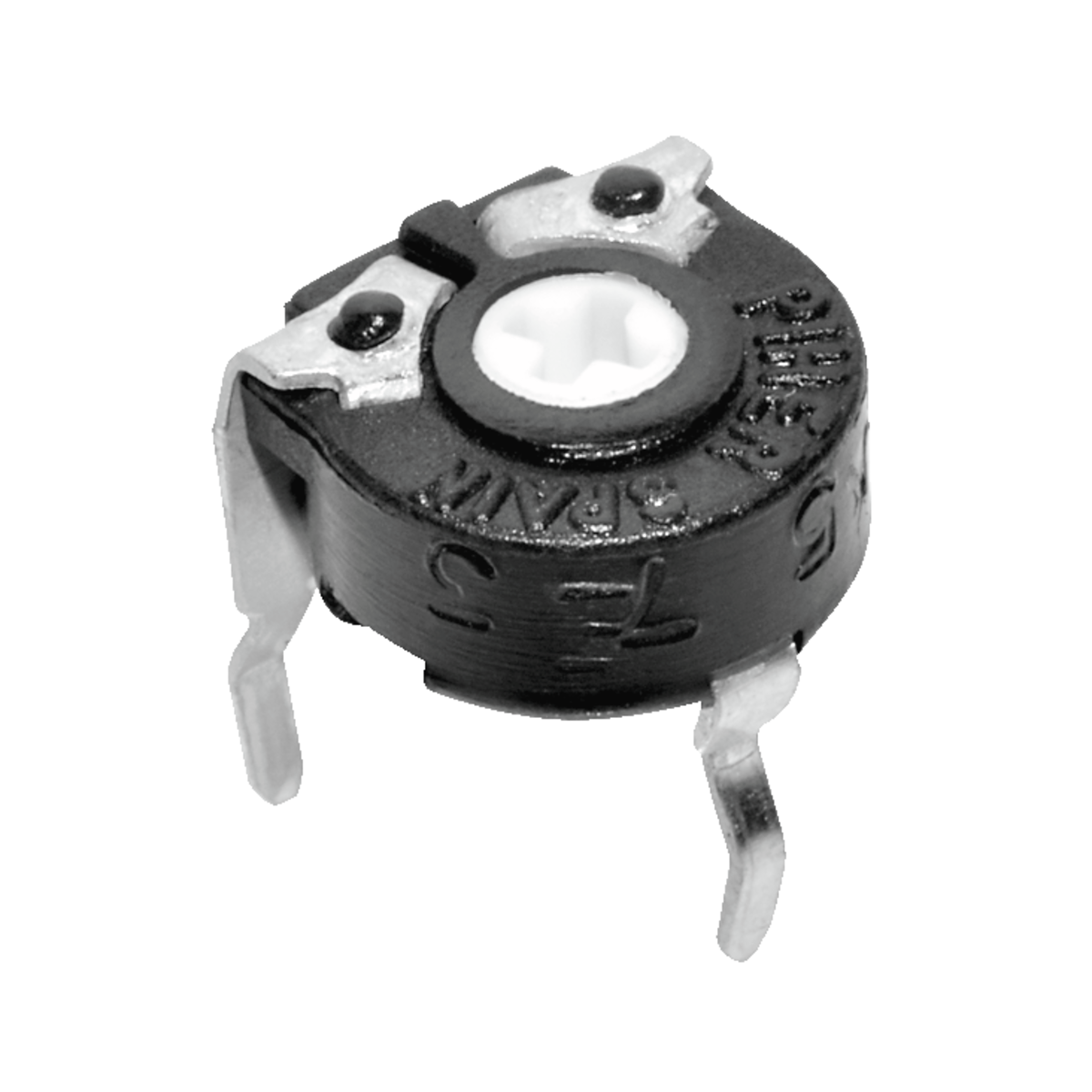

226 |  | Manufacturers Part No. PT6KV-252A2020(PT6VK002.5) Piher Carbon film trimmer PT6 horizontal 0,1W 2,5kOhm 20% Actuation from above arrow slot P5mm | Customer Part No. Customer Project No. | 775 Pcs. Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | horizontal | from above | 2.5 | kOhm | 20.0 % | 0.1 W | arrow slot | 235.0 ° | 7.3 mm | 6.3 mm | 5.0 mm | -25.0 °C | 70.0 °C | ||||||||
227 | | Manufacturers Part No. PT6KV-502A2020(PT6VK005) Piher Carbon film trimmer PT6 horizontal 0,1W 5kOhm 20% Actuation from above arrow slot P5mm | Customer Part No. Customer Project No. | 1.975 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | horizontal | from above | 5.0 | kOhm | 20.0 % | 0.1 W | arrow slot | 235.0 ° | 7.3 mm | 6.3 mm | 5.0 mm | -25.0 °C | 70.0 °C | ||||||||
228 | | Manufacturers Part No. PT6KV-103A2020(PT6VK010) Piher Carbon film trimmer PT6 horizontal 0,1W 10kOhm 20% Actuation from above arrow slot P5mm | Customer Part No. Customer Project No. | 3.225 Pcs. Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | horizontal | from above | 10.0 | kOhm | 20.0 % | 0.1 W | arrow slot | 235.0 ° | 7.3 mm | 6.3 mm | 5.0 mm | -25.0 °C | 70.0 °C | ||||||||
229 | | Manufacturers Part No. PT6KV-253A2020(PT6VK025) Piher Carbon film trimmer PT6 horizontal 0,1W 25kOhm 20% Actuation from above arrow slot P5mm | Customer Part No. Customer Project No. | 1.100 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | horizontal | from above | 25.0 | kOhm | 20.0 % | 0.1 W | arrow slot | 235.0 ° | 7.3 mm | 6.3 mm | 5.0 mm | -25.0 °C | 70.0 °C | ||||||||
230 | | Manufacturers Part No. PT6KV-503A2020(PT6VK050) Piher Carbon film trimmer PT6 horizontal 0,1W 50kOhm 20% Actuation from above arrow slot P5mm | Customer Part No. Customer Project No. | 975 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | horizontal | from above | 50.0 | kOhm | 20.0 % | 0.1 W | arrow slot | 235.0 ° | 7.3 mm | 6.3 mm | 5.0 mm | -25.0 °C | 70.0 °C | ||||||||
231 | | Manufacturers Part No. PT6KV-104A2020(PT6VK100) Piher Carbon film trimmer PT6 horizontal 0,1W 100kOhm 20% Actuation from above arrow slot P5mm | Customer Part No. Customer Project No. | 950 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | horizontal | from above | 100.0 | kOhm | 20.0 % | 0.1 W | arrow slot | 235.0 ° | 7.3 mm | 6.3 mm | 5.0 mm | -25.0 °C | 70.0 °C | ||||||||
232 | | Manufacturers Part No. PT6KV-254A2020(PT6VK250) Piher Carbon film trimmer PT6 horizontal 0,1W 250kOhm 20% Actuation from above arrow slot P5mm | Customer Part No. Customer Project No. | 500 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | horizontal | from above | 250.0 | kOhm | 20.0 % | 0.1 W | arrow slot | 235.0 ° | 7.3 mm | 6.3 mm | 5.0 mm | -25.0 °C | 70.0 °C | ||||||||
233 | | Manufacturers Part No. PT6KV-504A2020(PT6VK500) Piher Carbon film trimmer PT6 horizontal 0,1W 500kOhm 20% Actuation from above arrow slot P5mm | Customer Part No. Customer Project No. | 800 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | horizontal | from above | 500.0 | kOhm | 20.0 % | 0.1 W | arrow slot | 235.0 ° | 7.3 mm | 6.3 mm | 5.0 mm | -25.0 °C | 70.0 °C | ||||||||
234 | | Manufacturers Part No. PT6KV-105A2020(PT6VM001) Piher Carbon film trimmer PT6 horizontal 0,1W 1MOhm 20% Actuation from above arrow slot P5mm | Customer Part No. Customer Project No. | 750 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | horizontal | from above | 1.0 | MOhm | 20.0 % | 0.1 W | arrow slot | 235.0 ° | 7.3 mm | 6.3 mm | 5.0 mm | -25.0 °C | 70.0 °C | ||||||||
235 | | Manufacturers Part No. PT6KH-104A2020(PT6HK100) Piher Carbon film trimmer PT6 vertical 0,1W 100kOhm 20% Actuation from the side arrow slot P5mm | Customer Part No. Customer Project No. | 375 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | vertical | from the side | 100.0 | kOhm | 20.0 % | 0.1 W | arrow slot | 235.0 ° | 3.3 mm | 6.3 mm | 5.0 mm | -25.0 °C | 70.0 °C | ||||||||
236 | | Manufacturers Part No. T63XB472KT20(T63XBK004.7) Vishay Cermet spindle trimmer T63 vertical 0,25W 4,7kOhm 10% Actuation from the side slot P2,54mm | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Cermet spindle trimmer | Vishay | THT | vertical | from the side | 4.7 | kOhm | 10.0 % | 0.25 W | slot | 6.8 mm | 5.0 mm | 10.8 mm | 2.54 mm | -55.0 °C | 155.0 °C | ||||||||
237 | | Manufacturers Part No. T63YB103KT20(T63YBK010) Vishay Cermet spindle trimmer T63 vertical 0,25W 10kOhm 10% Actuation from above slot P2,54mm TOP | Customer Part No. Customer Project No. | 1.780 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Cermet spindle trimmer | Vishay | THT | vertical | from above | 10.0 | kOhm | 10.0 % | 0.25 W | slot | 6.8 mm | 5.0 mm | 11.8 mm | 2.54 mm | -55.0 °C | 155.0 °C | ||||||||
238 | | Manufacturers Part No. T63YA104KT20(T63YAK100) Vishay Cermet spindle trimmer T63 vertical 0,25W 100kOhm 10% Actuation from above slot P2,54mm | Customer Part No. Customer Project No. | 220 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 10 or mul. of 10) | Cermet spindle trimmer | Vishay | THT | vertical | from above | 100.0 | kOhm | 10.0 % | 0.25 W | slot | 6.8 mm | 5.0 mm | 11.8 mm | 2.54 mm | -55.0 °C | 155.0 °C | ||||||||
239 | | Manufacturers Part No. FT-63EP-102(FT63EPK001) Copal Cermet trimmer FT-63 vertical 0,5W 1kOhm 10% Actuation from above crossed slot P5mm | Customer Part No. Customer Project No. | 2.125 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 25 or mul. of 25) | Cermet trimmer | Copal | THT | vertical | from above | 1.0 | kOhm | 10.0 % | 0.5 W | crossed slot | 260.0 ° | 7.0 mm | 7.0 mm | 13.0 mm | 5.0 mm | -55.0 °C | 125.0 °C | |||||||
240 | | Manufacturers Part No. FT-63EP-202(FT63EPK002) Copal Cermet trimmer FT-63 vertical 0,5W 2kOhm 10% Actuation from above crossed slot P5mm | Customer Part No. Customer Project No. | 250 Pcs. Available (from stock) | (at least 25 or mul. of 25) | Cermet trimmer | Copal | THT | vertical | from above | 2.0 | kOhm | 10.0 % | 0.5 W | crossed slot | 260.0 ° | 7.0 mm | 7.0 mm | 13.0 mm | 5.0 mm | -55.0 °C | 125.0 °C | |||||||
241 | | Manufacturers Part No. FT-63ES-203(FT63ESK020) Copal Cermet trimmer FT-63 vertical 0,5W 20kOhm 10% Actuation from the side crossed slot P5mm | Customer Part No. Customer Project No. | 250 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 25 or mul. of 25) | Cermet trimmer | Copal | THT | vertical | from the side | 20.0 | kOhm | 10.0 % | 0.5 W | crossed slot | 260.0 ° | 7.0 mm | 7.0 mm | 18.4 mm | 5.0 mm | -55.0 °C | 125.0 °C | |||||||
242 | | Manufacturers Part No. FT-63ES-103(FT63ESK010) Copal Cermet trimmer FT-63 vertical 0,5W 10kOhm 10% Actuation from the side crossed slot P5mm | Customer Part No. Customer Project No. | 2.600 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 25 or mul. of 25) | Cermet trimmer | Copal | THT | vertical | from the side | 10.0 | kOhm | 10.0 % | 0.5 W | crossed slot | 260.0 ° | 7.0 mm | 7.0 mm | 18.4 mm | 5.0 mm | -55.0 °C | 125.0 °C | |||||||
243 | | Manufacturers Part No. CA6XV05-100RA2020(CA6VE100) ACP Carbon film trimmer CA6 horizontal 0,1W 100Ohm 20% Actuation from above crossed slot P5mm | Customer Part No. Customer Project No. | 2.600 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 100) | Carbon film trimmer | ACP | THT | horizontal | from above | 100.0 | Ohm | 20.0 % | 0.1 W | crossed slot | 235.0 ° | 6.5 mm | 6.5 mm | 8.2 mm | 5.0 mm | -25.0 °C | 70.0 °C | |||||||
244 | | Manufacturers Part No. FT-63EP-502(FT63EPK005) Copal Cermet trimmer FT-63 vertical 0,5W 5kOhm 10% Actuation from above crossed slot P5mm | Customer Part No. Customer Project No. | 1.500 Pcs. Available (from stock) | (at least 25 or mul. of 25) | Cermet trimmer | Copal | THT | vertical | from above | 5.0 | kOhm | 10.0 % | 0.5 W | crossed slot | 260.0 ° | 7.0 mm | 7.0 mm | 13.0 mm | 5.0 mm | -55.0 °C | 125.0 °C | |||||||
245 | | Manufacturers Part No. PT6KH-102A2020(PT6HK001) Piher Carbon film trimmer PT6 vertical 0,1W 1kOhm 20% Actuation from the side arrow slot P5mm | Customer Part No. Customer Project No. | 800 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | vertical | from the side | 1.0 | kOhm | 20.0 % | 0.1 W | arrow slot | 235.0 ° | 3.3 mm | 6.3 mm | 5.0 mm | -25.0 °C | 70.0 °C | ||||||||
246 | | Manufacturers Part No. T63XB102KT20(T63XBK001) Vishay Cermet spindle trimmer T63 vertical 0,25W 1kOhm 10% Actuation from the side slot P2,54mm | Customer Part No. Customer Project No. | 210 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 10 or mul. of 10) | Cermet spindle trimmer | Vishay | THT | vertical | from the side | 1.0 | kOhm | 10.0 % | 0.25 W | slot | 6.8 mm | 5.0 mm | 10.8 mm | 2.54 mm | -55.0 °C | 155.0 °C | ||||||||
247 | | Manufacturers Part No. CA6XV05-250RA2020(CA6VE250) ACP Carbon film trimmer CA6 horizontal 0,1W 250Ohm 20% Actuation from above crossed slot P5mm | Customer Part No. Customer Project No. | 1.400 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 100) | Carbon film trimmer | ACP | THT | horizontal | from above | 250.0 | Ohm | 20.0 % | 0.1 W | crossed slot | 235.0 ° | 6.5 mm | 6.5 mm | 8.2 mm | 5.0 mm | -25.0 °C | 70.0 °C | |||||||
248 | | Manufacturers Part No. FT-63EP-103(FT63EPK010) Copal Cermet trimmer FT-63 vertical 0,5W 10kOhm 10% Actuation from above crossed slot P5mm | Customer Part No. Customer Project No. | 3.325 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 25 or mul. of 25) | Cermet trimmer | Copal | THT | vertical | from above | 10.0 | kOhm | 10.0 % | 0.5 W | crossed slot | 260.0 ° | 7.0 mm | 7.0 mm | 13.0 mm | 5.0 mm | -55.0 °C | 125.0 °C | |||||||
249 | | Manufacturers Part No. PT6KH-252A2020(PT6HK002.5) Piher Carbon film trimmer PT6 vertical 0,1W 2,5kOhm 20% Actuation from the side arrow slot P5mm | Customer Part No. Customer Project No. | 1.000 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | vertical | from the side | 2.5 | kOhm | 20.0 % | 0.1 W | arrow slot | 235.0 ° | 3.3 mm | 6.3 mm | 5.0 mm | -25.0 °C | 70.0 °C | ||||||||
250 | | Manufacturers Part No. T63XB103KT20(T63XBK010) Vishay Cermet spindle trimmer T63 vertical 0,25W 10kOhm 10% Actuation from the side slot P2,54mm | Customer Part No. Customer Project No. | 870 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 10 or mul. of 10) | Cermet spindle trimmer | Vishay | THT | vertical | from the side | 10.0 | kOhm | 10.0 % | 0.25 W | slot | 6.8 mm | 5.0 mm | 10.8 mm | 2.54 mm | -55.0 °C | 155.0 °C |
