Results (327)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Type | Manufacturer | Assembly Type | Housing | Actuation | Resistance value | Resistance unit | Resistance tolerance | Rated power | Shaft | Rotation angle, mechanical | Dimension: Length | Dimension: Width | Dimension: Height | Diameter, housing | Pitch | Operating Temperature Min. | Operating Temperature Max. | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
176 |  | Manufacturers Part No. PT10LV10-504A2020-S(PT10VK500) Piher Carbon film trimmer PT10 horizontal 0,15W 500kOhm 20% Actuation from above arrow slot P10mm | Customer Part No. Customer Project No. | 2.525 Pcs. Planned Delivery Time Ø 7 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | horizontal | from above | 500.0 | kOhm | 20.0 % | 0.15 W | arrow slot | 235.0 ° | 9.5 mm | 10.3 mm | 10.0 mm | -25.0 °C | 70.0 °C | ||||||||
177 | | Manufacturers Part No. CA9PH2,5-500KA2020(CA9HK500) ACP Carbon film trimmer CA9 vertical 0,15W 500kOhm 20% Actuation from the side arrow slot P5mm | Customer Part No. Customer Project No. | 2.100 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 100) | Carbon film trimmer | ACP | THT | vertical | from the side | 500.0 | kOhm | 20.0 % | 0.15 W | arrow slot | 240.0 ° | 9.8 mm | 5.2 mm | 16.0 mm | 5.0 mm | -25.0 °C | 70.0 °C | |||||||

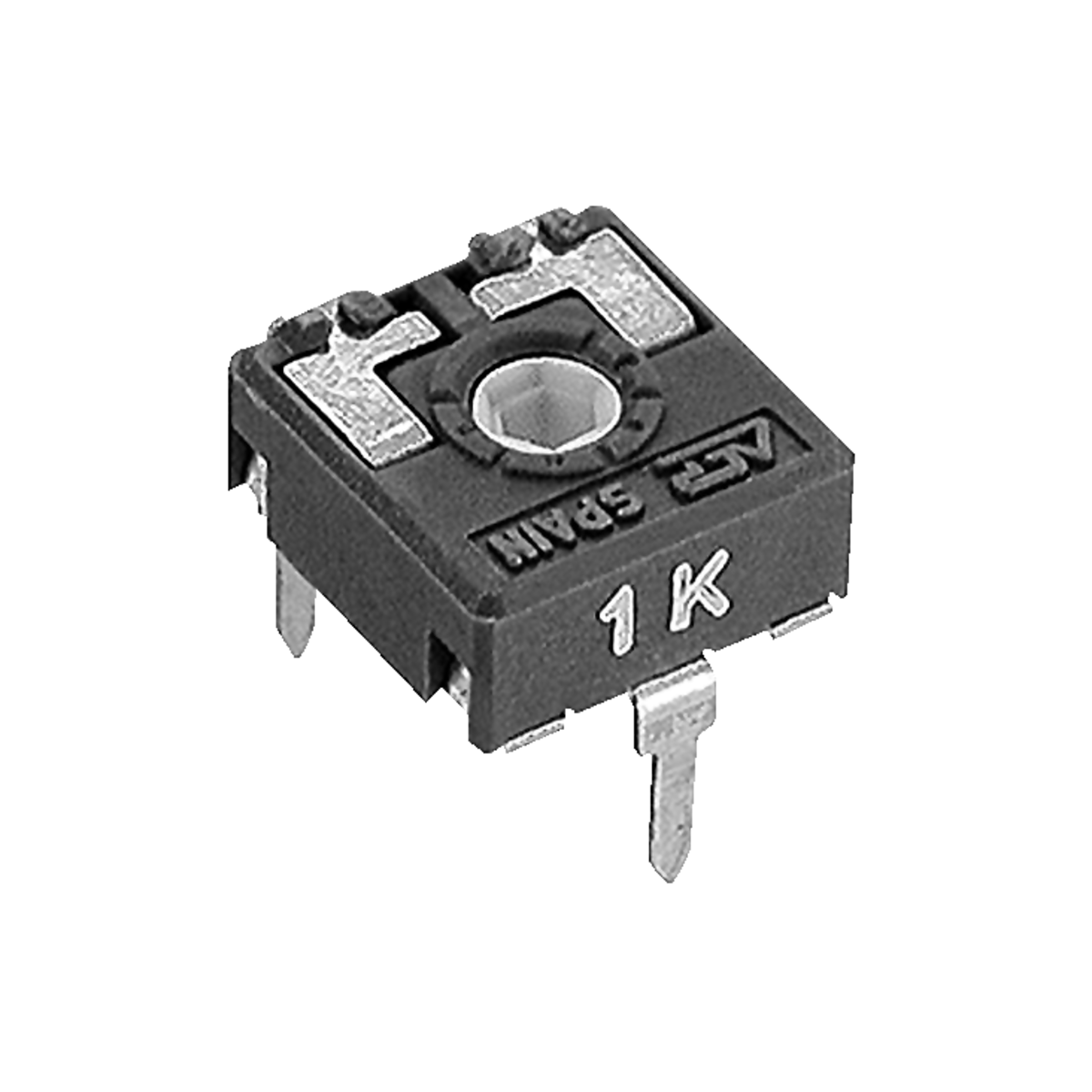

178 | | Manufacturers Part No. CA9MV10-100KA2020(CA9MVK100) ACP Carbon film trimmer CA9 horizontal 0,15W 100kOhm 20% Actuation from above hexagon P10mm | Customer Part No. Customer Project No. | 500 Pcs. Available (from stock) | (at least 100 or mul. of 50) | Carbon film trimmer | ACP | THT | horizontal | from above | 100.0 | kOhm | 20.0 % | 0.15 W | hexagon | 240.0 ° | 9.8 mm | 10.0 mm | 10.0 mm | -25.0 °C | 70.0 °C | ||||||||
179 | | Manufacturers Part No. CA9PH2,5-1MA2020(CA9HM001) ACP Carbon film trimmer CA9 vertical 0,15W 1MOhm 20% Actuation from the side arrow slot P5mm | Customer Part No. Customer Project No. | 3.000 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 50) | Carbon film trimmer | ACP | THT | vertical | from the side | 1.0 | MOhm | 20.0 % | 0.15 W | arrow slot | 240.0 ° | 9.8 mm | 5.2 mm | 16.0 mm | 5.0 mm | -25.0 °C | 70.0 °C | |||||||
180 | | Manufacturers Part No. CA9PV10-100KA2020(CA9VK100) ACP Carbon film trimmer CA9 horizontal 0,15W 100kOhm 20% Actuation from above arrow slot P10mm | Customer Part No. Customer Project No. | 3.150 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 50) | Carbon film trimmer | ACP | THT | horizontal | from above | 100.0 | kOhm | 20.0 % | 0.15 W | arrow slot | 240.0 ° | 9.8 mm | 10.0 mm | 10.0 mm | -25.0 °C | 70.0 °C | ||||||||

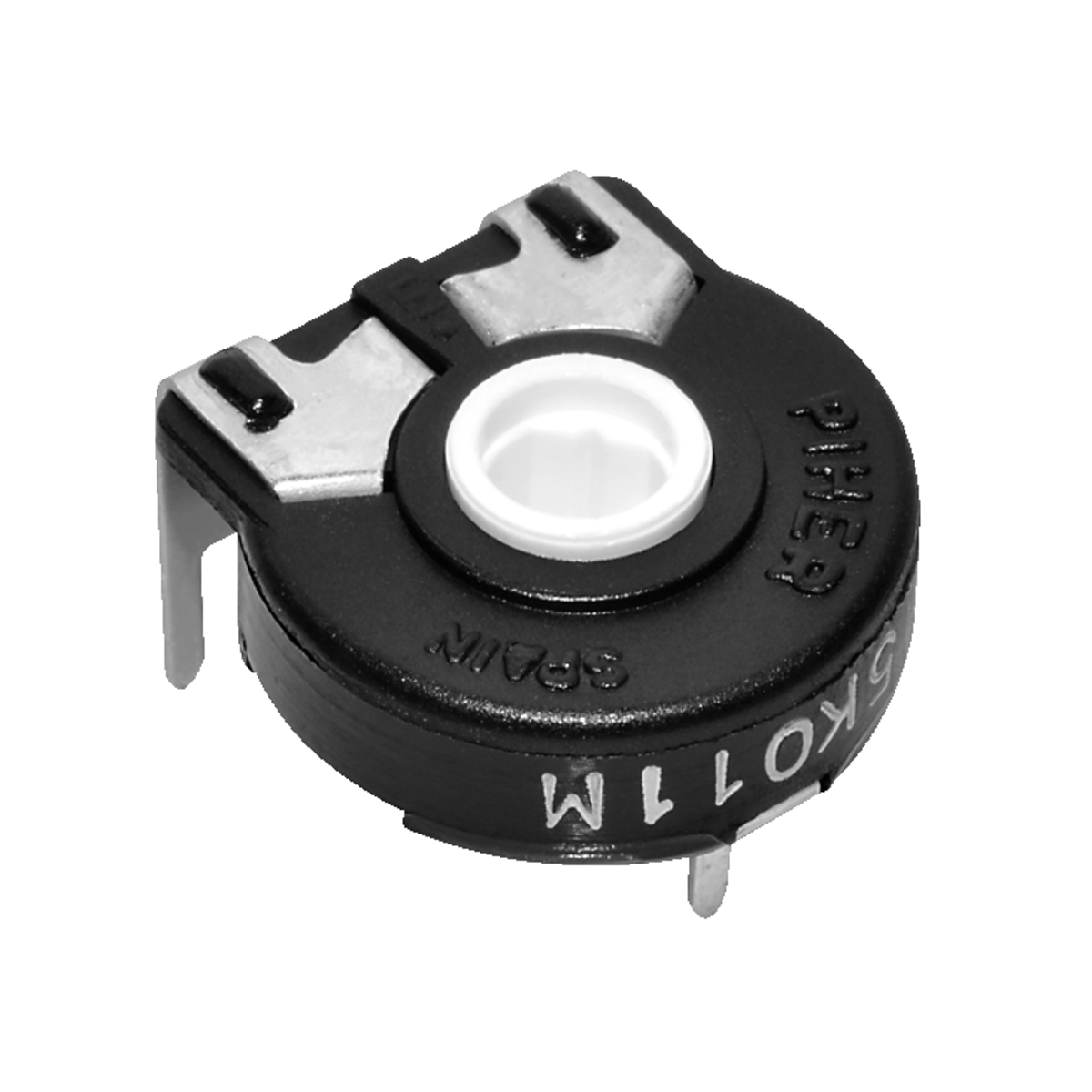

181 | | Manufacturers Part No. PT15NV02-504A2020-S(PT15VK500) Piher Carbon film trimmer PT15 horizontal 0,25W 500kOhm 20% Actuation from above elongated hole P12,5mm | Customer Part No. Customer Project No. | 800 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | horizontal | from above | 500.0 | kOhm | 20.0 % | 0.25 W | elongated hole | 265.0 ° | 11.0 mm | 15.0 mm | 12.5 mm | -25.0 °C | 70.0 °C | ||||||||
182 | | Manufacturers Part No. CA9MH2,5-500KA2020(CA9MHK500) ACP Carbon film trimmer CA9 vertical 0,15W 500kOhm 20% Actuation from the side hexagon P5mm | Customer Part No. Customer Project No. | 2.500 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 100) | Carbon film trimmer | ACP | THT | vertical | from the side | 500.0 | kOhm | 20.0 % | 0.15 W | hexagon | 240.0 ° | 9.8 mm | 5.2 mm | 11.0 mm | 5.0 mm | -25.0 °C | 70.0 °C | |||||||
183 | | Manufacturers Part No. PT15NV02-103A2020-S(PT15VK010) Piher Carbon film trimmer PT15 horizontal 0,25W 10kOhm 20% Actuation from above elongated hole P12,5mm | Customer Part No. Customer Project No. | 3.100 Pcs. Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | horizontal | from above | 10.0 | kOhm | 20.0 % | 0.25 W | elongated hole | 265.0 ° | 11.0 mm | 15.0 mm | 12.5 mm | -25.0 °C | 70.0 °C | ||||||||
184 | | Manufacturers Part No. CA9MV10-25KA2020(CA9MVK025) ACP Carbon film trimmer CA9 horizontal 0,15W 25kOhm 20% Actuation from above hexagon P10mm | Customer Part No. Customer Project No. | 4.100 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 50) | Carbon film trimmer | ACP | THT | horizontal | from above | 25.0 | kOhm | 20.0 % | 0.15 W | hexagon | 240.0 ° | 9.8 mm | 10.0 mm | 10.0 mm | -25.0 °C | 70.0 °C | ||||||||
185 | | Manufacturers Part No. CA14NH05-1MA2020(CA14NHM001) ACP Carbon film trimmer CA14 vertical 0,25W 1MOhm 20% Actuation from the side elougated hole P10mm | Customer Part No. Customer Project No. | 3.000 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | ACP | THT | vertical | from the side | 1.0 | MOhm | 20.0 % | 0.25 W | elougated hole | 265.0 ° | 14.0 mm | 6.0 mm | 21.0 mm | 10.0 mm | -25.0 °C | 70.0 °C | |||||||
186 | | Manufacturers Part No. CA9MV10-500KA2020(CA9MVK500) ACP Carbon film trimmer CA9 horizontal 0,15W 500kOhm 20% Actuation from above hexagon P10mm | Customer Part No. Customer Project No. | 3.600 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 50) | Carbon film trimmer | ACP | THT | horizontal | from above | 500.0 | kOhm | 20.0 % | 0.15 W | hexagon | 240.0 ° | 9.8 mm | 10.0 mm | 10.0 mm | -25.0 °C | 70.0 °C | ||||||||
187 | | Manufacturers Part No. PT15NV02-253A2020-S(PT15VK025) Piher Carbon film trimmer PT15 horizontal 0,25W 25kOhm 20% Actuation from above elongated hole P12,5mm | Customer Part No. Customer Project No. | 350 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | horizontal | from above | 25.0 | kOhm | 20.0 % | 0.25 W | elongated hole | 265.0 ° | 11.0 mm | 15.0 mm | 12.5 mm | -25.0 °C | 70.0 °C | ||||||||
188 | | Manufacturers Part No. PT10LH01-102A2020-S(PT10HK001) Piher Carbon film trimmer PT10 vertical 0,15W 1kOhm 20% Actuation from the side arrow slot P5mm | Customer Part No. Customer Project No. | 3.275 Pcs. Planned Delivery Time Ø 13 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | vertical | from the side | 1.0 | kOhm | 20.0 % | 0.15 W | arrow slot | 235.0 ° | 4.8 mm | 15.6 mm | 10.3 mm | 5.0 mm | -25.0 °C | 70.0 °C | |||||||
189 | | Manufacturers Part No. PT10LV10-101A2020-S(PT10VE100) Piher Carbon film trimmer PT10 horizontal 0,15W 100Ohm 20% Actuation from above arrow slot P10mm | Customer Part No. Customer Project No. | 900 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | horizontal | from above | 100.0 | Ohm | 20.0 % | 0.15 W | arrow slot | 235.0 ° | 9.5 mm | 10.3 mm | 10.0 mm | -25.0 °C | 70.0 °C | ||||||||
190 | | Manufacturers Part No. PT10LV10-255A3030-S(PT10VM002.5) Piher Carbon film trimmer PT10 horizontal 0,15W 2,5MOhm 30% Actuation from above arrow slot P10mm | Customer Part No. Customer Project No. | 1.200 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | horizontal | from above | 2.5 | MOhm | 30.0 % | 0.15 W | arrow slot | 235.0 ° | 9.5 mm | 10.3 mm | 10.0 mm | -25.0 °C | 70.0 °C | ||||||||
191 | | Manufacturers Part No. CA9MV10-1KA2020(CA9MVK001) ACP Carbon film trimmer CA9 horizontal 0,15W 1kOhm 20% Actuation from above hexagon P10mm | Customer Part No. Customer Project No. | 2.500 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 50) | Carbon film trimmer | ACP | THT | horizontal | from above | 1.0 | kOhm | 20.0 % | 0.15 W | hexagon | 240.0 ° | 9.8 mm | 10.0 mm | 10.0 mm | -25.0 °C | 70.0 °C | ||||||||
192 | | Manufacturers Part No. CA9PV10-250KA2020(CA9VK250) ACP Carbon film trimmer CA9 horizontal 0,15W 250kOhm 20% Actuation from above arrow slot P10mm | Customer Part No. Customer Project No. | 4.400 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 50) | Carbon film trimmer | ACP | THT | horizontal | from above | 250.0 | kOhm | 20.0 % | 0.15 W | arrow slot | 240.0 ° | 9.8 mm | 10.0 mm | 10.0 mm | -25.0 °C | 70.0 °C | ||||||||
193 | | Manufacturers Part No. CA9MH2,5-5KA2020(CA9MHK005) ACP Carbon film trimmer CA9 vertical 0,15W 5kOhm 20% Actuation from the side hexagon P5mm | Customer Part No. Customer Project No. | 3.200 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 100) | Carbon film trimmer | ACP | THT | vertical | from the side | 5.0 | kOhm | 20.0 % | 0.15 W | hexagon | 240.0 ° | 9.8 mm | 5.2 mm | 11.0 mm | 5.0 mm | -25.0 °C | 70.0 °C | |||||||
194 | | Manufacturers Part No. CA9MV10-50KA2020(CA9MVK050) ACP Carbon film trimmer CA9 horizontal 0,15W 50kOhm 20% Actuation from above hexagon P10mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 50) | Carbon film trimmer | ACP | THT | horizontal | from above | 50.0 | kOhm | 20.0 % | 0.15 W | hexagon | 240.0 ° | 9.8 mm | 10.0 mm | 10.0 mm | -25.0 °C | 70.0 °C | ||||||||
195 | | Manufacturers Part No. CA14NH05-250KA2020(CA14NHK250) ACP Carbon film trimmer CA14 vertical 0,25W 250kOhm 20% Actuation from the side elougated hole P10mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 8 Weeks Available on order | (at least 3000 or mul. of 3000) | Carbon film trimmer | ACP | THT | vertical | from the side | 250.0 | kOhm | 20.0 % | 0.25 W | elougated hole | 265.0 ° | 14.0 mm | 6.0 mm | 21.0 mm | 10.0 mm | -25.0 °C | 70.0 °C | |||||||
196 | | Manufacturers Part No. PT10LH01-251A2020-S(PT10HE250) Piher Carbon film trimmer PT10 vertical 0,15W 250Ohm 20% Actuation from the side arrow slot P5mm | Customer Part No. Customer Project No. | 875 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | vertical | from the side | 250.0 | Ohm | 20.0 % | 0.15 W | arrow slot | 235.0 ° | 4.8 mm | 15.6 mm | 10.3 mm | 5.0 mm | -25.0 °C | 70.0 °C | |||||||
197 | | Manufacturers Part No. PT10LH01-504A2020-S(PT10HK500) Piher Carbon film trimmer PT10 vertical 0,15W 500kOhm 20% Actuation from the side arrow slot P5mm | Customer Part No. Customer Project No. | 975 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | vertical | from the side | 500.0 | kOhm | 20.0 % | 0.15 W | arrow slot | 235.0 ° | 4.8 mm | 15.6 mm | 10.3 mm | 5.0 mm | -25.0 °C | 70.0 °C | |||||||
198 | | Manufacturers Part No. PT10LV10-253A2020-S(PT10VK025) Piher Carbon film trimmer PT10 horizontal 0,15W 25kOhm 20% Actuation from above arrow slot P10mm | Customer Part No. Customer Project No. | 725 Pcs. Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | horizontal | from above | 25.0 | kOhm | 20.0 % | 0.15 W | arrow slot | 235.0 ° | 9.5 mm | 10.3 mm | 10.0 mm | -25.0 °C | 70.0 °C | ||||||||
199 | | Manufacturers Part No. CA14NH05-100RA2020(CA14NHE100) ACP Carbon film trimmer CA14 vertical 0,25W 100Ohm 20% Actuation from the side elougated hole P10mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 8 Weeks Available on order | (at least 3000 or mul. of 3000) | Carbon film trimmer | ACP | THT | vertical | from the side | 100.0 | Ohm | 20.0 % | 0.25 W | elougated hole | 265.0 ° | 14.0 mm | 6.0 mm | 21.0 mm | 10.0 mm | -25.0 °C | 70.0 °C | |||||||
200 | | Manufacturers Part No. CA9MH2,5-100KA2020(CA9MHK100) ACP Carbon film trimmer CA9 vertical 0,15W 100kOhm 20% Actuation from the side hexagon P5mm | Customer Part No. Customer Project No. | 2.000 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 50) | Carbon film trimmer | ACP | THT | vertical | from the side | 100.0 | kOhm | 20.0 % | 0.15 W | hexagon | 240.0 ° | 9.8 mm | 5.2 mm | 11.0 mm | 5.0 mm | -25.0 °C | 70.0 °C |
