Results (327)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Type | Manufacturer | Assembly Type | Housing | Actuation | Resistance value | Resistance unit | Resistance tolerance | Rated power | Shaft | Rotation angle, mechanical | Dimension: Length | Dimension: Width | Dimension: Height | Diameter, housing | Pitch | Operating Temperature Min. | Operating Temperature Max. | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
301 |  | Manufacturers Part No. CA14NH05-1KA2020(CA14NHK001) ACP Carbon film trimmer CA14 vertical 0,25W 1kOhm 20% Actuation from the side elougated hole P10mm | Customer Part No. Customer Project No. | 2.350 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | ACP | THT | vertical | from the side | 1.0 | kOhm | 20.0 % | 0.25 W | elougated hole | 265.0 ° | 14.0 mm | 6.0 mm | 21.0 mm | 10.0 mm | -25.0 °C | 70.0 °C | |||||||
302 | | Manufacturers Part No. CA14NH05-5KA2020(CA14NHK005) ACP Carbon film trimmer CA14 vertical 0,25W 5kOhm 20% Actuation from the side elougated hole P10mm | Customer Part No. Customer Project No. | 1.450 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | ACP | THT | vertical | from the side | 5.0 | kOhm | 20.0 % | 0.25 W | elougated hole | 265.0 ° | 14.0 mm | 6.0 mm | 21.0 mm | 10.0 mm | -25.0 °C | 70.0 °C | |||||||
303 | | Manufacturers Part No. CA14NH05-10KA2020(CA14NHK010) ACP Carbon film trimmer CA14 vertical 0,25W 10kOhm 20% Actuation from the side elougated hole P10mm | Customer Part No. Customer Project No. | 2.800 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | ACP | THT | vertical | from the side | 10.0 | kOhm | 20.0 % | 0.25 W | elougated hole | 265.0 ° | 14.0 mm | 6.0 mm | 21.0 mm | 10.0 mm | -25.0 °C | 70.0 °C | |||||||
304 | | Manufacturers Part No. CA9PH2,5-2K5A2020(CA9HK002.5) ACP Carbon film trimmer CA9 vertical 0,15W 2,5kOhm 20% Actuation from the side arrow slot P5mm | Customer Part No. Customer Project No. | 1.000 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 100) | Carbon film trimmer | ACP | THT | vertical | from the side | 2.5 | kOhm | 20.0 % | 0.15 W | arrow slot | 240.0 ° | 9.8 mm | 5.2 mm | 16.0 mm | 5.0 mm | -25.0 °C | 70.0 °C | |||||||
305 | | Manufacturers Part No. T63YA471KT20(T63YAE470) Vishay Cermet spindle trimmer T63 vertical 0,25W 470Ohm 10% Actuation from above slot P2,54mm | Customer Part No. Customer Project No. | 240 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 10 or mul. of 10) | Cermet spindle trimmer | Vishay | THT | vertical | from above | 470.0 | Ohm | 10.0 % | 0.25 W | slot | 6.8 mm | 5.0 mm | 11.8 mm | 2.54 mm | -55.0 °C | 155.0 °C | ||||||||
306 | | Manufacturers Part No. FT-63ES-503(FT63ESK050) Copal Cermet trimmer FT-63 vertical 0,5W 50kOhm 10% Actuation from the side crossed slot P5mm | Customer Part No. Customer Project No. | 275 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 25 or mul. of 25) | Cermet trimmer | Copal | THT | vertical | from the side | 50.0 | kOhm | 10.0 % | 0.5 W | crossed slot | 260.0 ° | 7.0 mm | 7.0 mm | 18.4 mm | 5.0 mm | -55.0 °C | 125.0 °C | |||||||
307 | | Manufacturers Part No. CA9PH2,5-1KA2020(CA9HK001) ACP Carbon film trimmer CA9 vertical 0,15W 1kOhm 20% Actuation from the side arrow slot P5mm | Customer Part No. Customer Project No. | 2.200 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 50) | Carbon film trimmer | ACP | THT | vertical | from the side | 1.0 | kOhm | 20.0 % | 0.15 W | arrow slot | 240.0 ° | 9.8 mm | 5.2 mm | 16.0 mm | 5.0 mm | -25.0 °C | 70.0 °C | |||||||
308 | | Manufacturers Part No. CA9PH2,5-10KA2020(CA9HK010) ACP Carbon film trimmer CA9 vertical 0,15W 10kOhm 20% Actuation from the side arrow slot P5mm | Customer Part No. Customer Project No. | 2.000 Pcs. Available (from stock) | (at least 100 or mul. of 50) | Carbon film trimmer | ACP | THT | vertical | from the side | 10.0 | kOhm | 20.0 % | 0.15 W | arrow slot | 240.0 ° | 9.8 mm | 5.2 mm | 16.0 mm | 5.0 mm | -25.0 °C | 70.0 °C | |||||||
309 | | Manufacturers Part No. CA9PH2,5-50KA2020(CA9HK050) ACP Carbon film trimmer CA9 vertical 0,15W 50kOhm 20% Actuation from the side arrow slot P5mm | Customer Part No. Customer Project No. | 2.400 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 100) | Carbon film trimmer | ACP | THT | vertical | from the side | 50.0 | kOhm | 20.0 % | 0.15 W | arrow slot | 240.0 ° | 9.8 mm | 5.2 mm | 16.0 mm | 5.0 mm | -25.0 °C | 70.0 °C | |||||||
310 | | Manufacturers Part No. T63YA102KT20(T63YAK001) Vishay Cermet spindle trimmer T63 vertical 0,25W 1kOhm 10% Actuation from above slot P2,54mm | Customer Part No. Customer Project No. | 340 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 10 or mul. of 10) | Cermet spindle trimmer | Vishay | THT | vertical | from above | 1.0 | kOhm | 10.0 % | 0.25 W | slot | 6.8 mm | 5.0 mm | 11.8 mm | 2.54 mm | -55.0 °C | 155.0 °C | ||||||||
311 | | Manufacturers Part No. FT-63ES-104(FT63ESK100) Copal Cermet trimmer FT-63 vertical 0,5W 100kOhm 10% Actuation from the side crossed slot P5mm | Customer Part No. Customer Project No. | 25 Pcs. Available (from stock) | (at least 25 or mul. of 25) | Cermet trimmer | Copal | THT | vertical | from the side | 100.0 | kOhm | 10.0 % | 0.5 W | crossed slot | 260.0 ° | 7.0 mm | 7.0 mm | 18.4 mm | 5.0 mm | -55.0 °C | 125.0 °C | |||||||
312 | | Manufacturers Part No. FT-63ES-105(FT63ESM001) Copal Cermet trimmer FT-63 vertical 0,5W 1MOhm 10% Actuation from the side crossed slot P5mm | Customer Part No. Customer Project No. | 670 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 25 or mul. of 25) | Cermet trimmer | Copal | THT | vertical | from the side | 1.0 | MOhm | 10.0 % | 0.5 W | crossed slot | 260.0 ° | 7.0 mm | 7.0 mm | 18.4 mm | 5.0 mm | -55.0 °C | 125.0 °C | |||||||
313 | | Manufacturers Part No. T63YA223KT20(T63YAK022) Vishay Cermet spindle trimmer T63 vertical 0,25W 22kOhm 10% Actuation from above slot P2,54mm | Customer Part No. Customer Project No. | 130 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 10 or mul. of 10) | Cermet spindle trimmer | Vishay | THT | vertical | from above | 22.0 | kOhm | 10.0 % | 0.25 W | slot | 6.8 mm | 5.0 mm | 11.8 mm | 2.54 mm | -55.0 °C | 155.0 °C | ||||||||
314 | | Manufacturers Part No. T63YA473KT20(T63YAK047) Vishay Cermet spindle trimmer T63 vertical 0,25W 47kOhm 10% Actuation from above slot P2,54mm | Customer Part No. Customer Project No. | 80 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 10 or mul. of 10) | Cermet spindle trimmer | Vishay | THT | vertical | from above | 47.0 | kOhm | 10.0 % | 0.25 W | slot | 6.8 mm | 5.0 mm | 11.8 mm | 2.54 mm | -55.0 °C | 155.0 °C | ||||||||

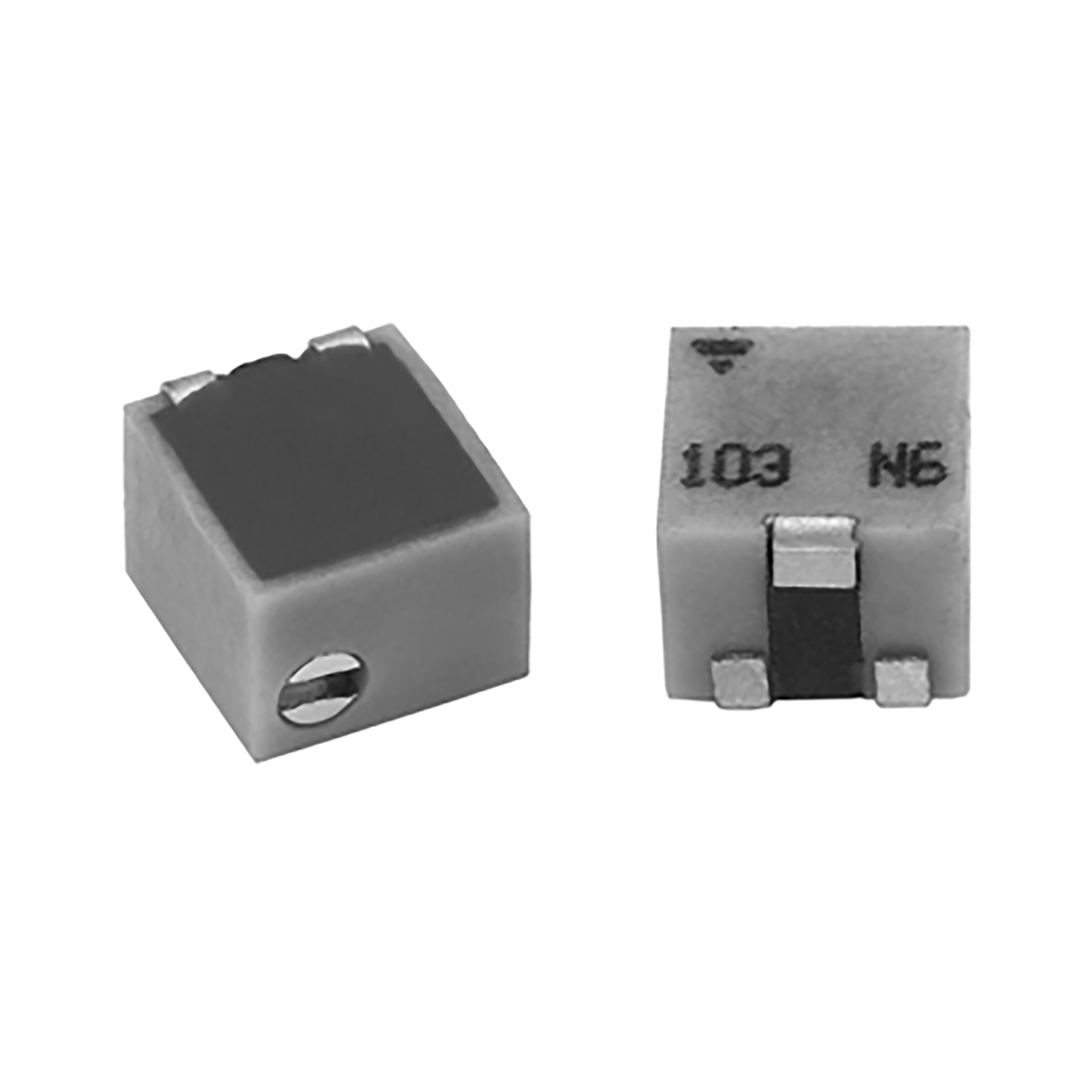

315 | | Manufacturers Part No. TSM4YJ102KR05(TSM4YJK001) Vishay Cermet spindle trimmer TSM4 vertical 0,25W 1kOhm 10% Actuation from above slot SMD | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Cermet spindle trimmer | Vishay | SMD | vertical | from above | 1.0 | kOhm | 10.0 % | 0.25 W | slot | 4.8 mm | 3.5 mm | 5.3 mm | -65.0 °C | 150.0 °C | |||||||||
316 | | Manufacturers Part No. TSM4YJ202KR05(TSM4YJK002) Vishay Cermet spindle trimmer TSM4 vertical 0,25W 2kOhm 10% Actuation from above slot SMD | Customer Part No. Customer Project No. | 320 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 10 or mul. of 10) | Cermet spindle trimmer | Vishay | SMD | vertical | from above | 2.0 | kOhm | 10.0 % | 0.25 W | slot | 4.8 mm | 3.5 mm | 5.3 mm | -65.0 °C | 150.0 °C | |||||||||
317 | | Manufacturers Part No. TSM4YJ104KR05(TSM4YJK100) Vishay Cermet spindle trimmer TSM4 vertical 0,25W 100kOhm 10% Actuation from above slot SMD | Customer Part No. Customer Project No. | 150 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 10 or mul. of 10) | Cermet spindle trimmer | Vishay | SMD | vertical | from above | 100.0 | kOhm | 10.0 % | 0.25 W | slot | 4.8 mm | 3.5 mm | 5.3 mm | -65.0 °C | 150.0 °C | |||||||||
318 | | Manufacturers Part No. TSM4YJ204KR05(TSM4YJK200) Vishay Cermet spindle trimmer TSM4 vertical 0,25W 200kOhm 10% Actuation from above slot SMD | Customer Part No. Customer Project No. | 210 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 10 or mul. of 10) | Cermet spindle trimmer | Vishay | SMD | vertical | from above | 200.0 | kOhm | 10.0 % | 0.25 W | slot | 4.8 mm | 3.5 mm | 5.3 mm | -65.0 °C | 150.0 °C | |||||||||
319 | | Manufacturers Part No. TSM4YJ502KR05(TSM4YJK005) Vishay Cermet spindle trimmer TSM4 vertical 0,25W 5kOhm 10% Actuation from above slot SMD | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 10 or mul. of 10) | Cermet spindle trimmer | Vishay | SMD | vertical | from above | 5.0 | kOhm | 10.0 % | 0.25 W | slot | 4.8 mm | 3.5 mm | 5.3 mm | -65.0 °C | 150.0 °C | |||||||||
320 | | Manufacturers Part No. TSM4YJ103KR05(TSM4YJK010) Vishay Cermet spindle trimmer TSM4 vertical 0,25W 10kOhm 10% Actuation from above slot SMD | Customer Part No. Customer Project No. | 500 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Cermet spindle trimmer | Vishay | SMD | vertical | from above | 10.0 | kOhm | 10.0 % | 0.25 W | slot | 4.8 mm | 3.5 mm | 5.3 mm | -65.0 °C | 150.0 °C | |||||||||
321 | | Manufacturers Part No. TSM4YJ203KR05(TSM4YJK020) Vishay Cermet spindle trimmer TSM4 vertical 0,25W 20kOhm 10% Actuation from above slot SMD | Customer Part No. Customer Project No. | 120 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Cermet spindle trimmer | Vishay | SMD | vertical | from above | 20.0 | kOhm | 10.0 % | 0.25 W | slot | 4.8 mm | 3.5 mm | 5.3 mm | -65.0 °C | 150.0 °C | |||||||||
322 | | Manufacturers Part No. TSM4YJ503KR05(TSM4YJK050) Vishay Cermet spindle trimmer TSM4 vertical 0,25W 50kOhm 10% Actuation from above slot SMD | Customer Part No. Customer Project No. | 320 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 10 or mul. of 10) | Cermet spindle trimmer | Vishay | SMD | vertical | from above | 50.0 | kOhm | 10.0 % | 0.25 W | slot | 4.8 mm | 3.5 mm | 5.3 mm | -65.0 °C | 150.0 °C | |||||||||
323 | | Manufacturers Part No. TSM4YJ504KR05(TSM4YJK500) Vishay Cermet spindle trimmer TSM4 vertical 0,25W 500kOhm 10% Actuation from above slot SMD | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 14 Weeks Available on order | (at least 500 or mul. of 500) | Cermet spindle trimmer | Vishay | SMD | vertical | from above | 500.0 | kOhm | 10.0 % | 0.25 W | slot | 4.8 mm | 3.5 mm | 5.3 mm | -65.0 °C | 150.0 °C | |||||||||
324 | | Manufacturers Part No. TSM4YJ105KR05(TSM4YJM001) Vishay Cermet spindle trimmer TSM4 vertical 0,25W 1MOhm 10% Actuation from above slot SMD | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 14 Weeks Available on order | (at least 500 or mul. of 500) | Cermet spindle trimmer | Vishay | SMD | vertical | from above | 1.0 | MOhm | 10.0 % | 0.25 W | slot | 4.8 mm | 3.5 mm | 5.3 mm | -65.0 °C | 150.0 °C | |||||||||
325 | | Manufacturers Part No. TSM4YJ101KR05(TSM4YJR100) Vishay Cermet spindle trimmer TSM4 vertical 0,25W 100Ohm 10% Actuation from above slot SMD | Customer Part No. Customer Project No. | 170 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 10 or mul. of 10) | Cermet spindle trimmer | Vishay | SMD | vertical | from above | 100.0 | Ohm | 10.0 % | 0.25 W | slot | 4.8 mm | 3.5 mm | 5.3 mm | -65.0 °C | 150.0 °C |
