Results (327)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Type | Manufacturer | Assembly Type | Housing | Actuation | Resistance value | Resistance unit | Resistance tolerance | Rated power | Shaft | Rotation angle, mechanical | Dimension: Length | Dimension: Width | Dimension: Height | Diameter, housing | Pitch | Operating Temperature Min. | Operating Temperature Max. | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
251 |  | Manufacturers Part No. FT-63EP-203(FT63EPK020) Copal Cermet trimmer FT-63 vertical 0,5W 20kOhm 10% Actuation from above crossed slot P5mm | Customer Part No. Customer Project No. | 3.300 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 25 or mul. of 25) | Cermet trimmer | Copal | THT | vertical | from above | 20.0 | kOhm | 10.0 % | 0.5 W | crossed slot | 260.0 ° | 7.0 mm | 7.0 mm | 13.0 mm | 5.0 mm | -55.0 °C | 125.0 °C | |||||||

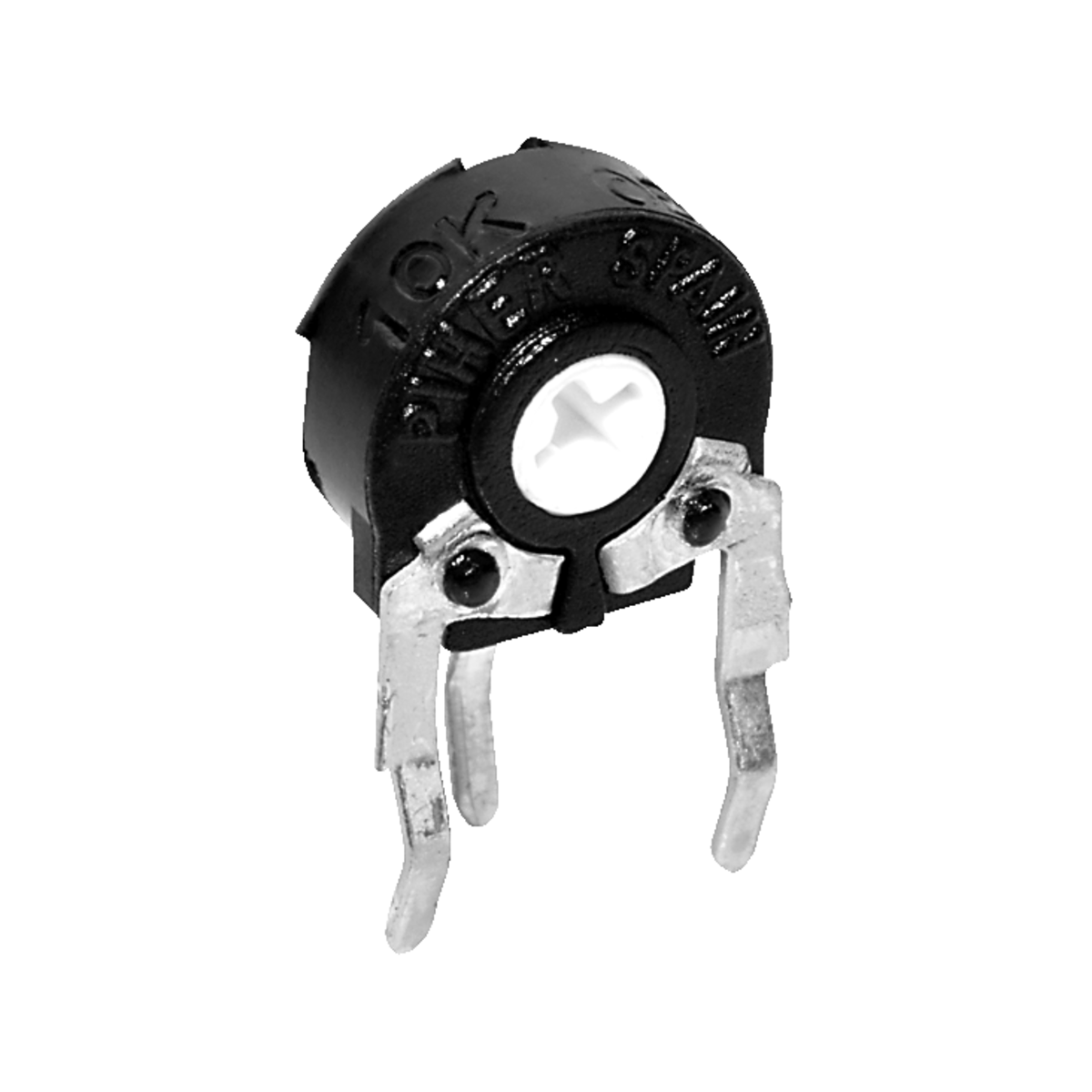

252 | | Manufacturers Part No. PT6KH-502A2020(PT6HK005) Piher Carbon film trimmer PT6 vertical 0,1W 5kOhm 20% Actuation from the side arrow slot P5mm | Customer Part No. Customer Project No. | 525 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | vertical | from the side | 5.0 | kOhm | 20.0 % | 0.1 W | arrow slot | 235.0 ° | 3.3 mm | 6.3 mm | 5.0 mm | -25.0 °C | 70.0 °C | ||||||||

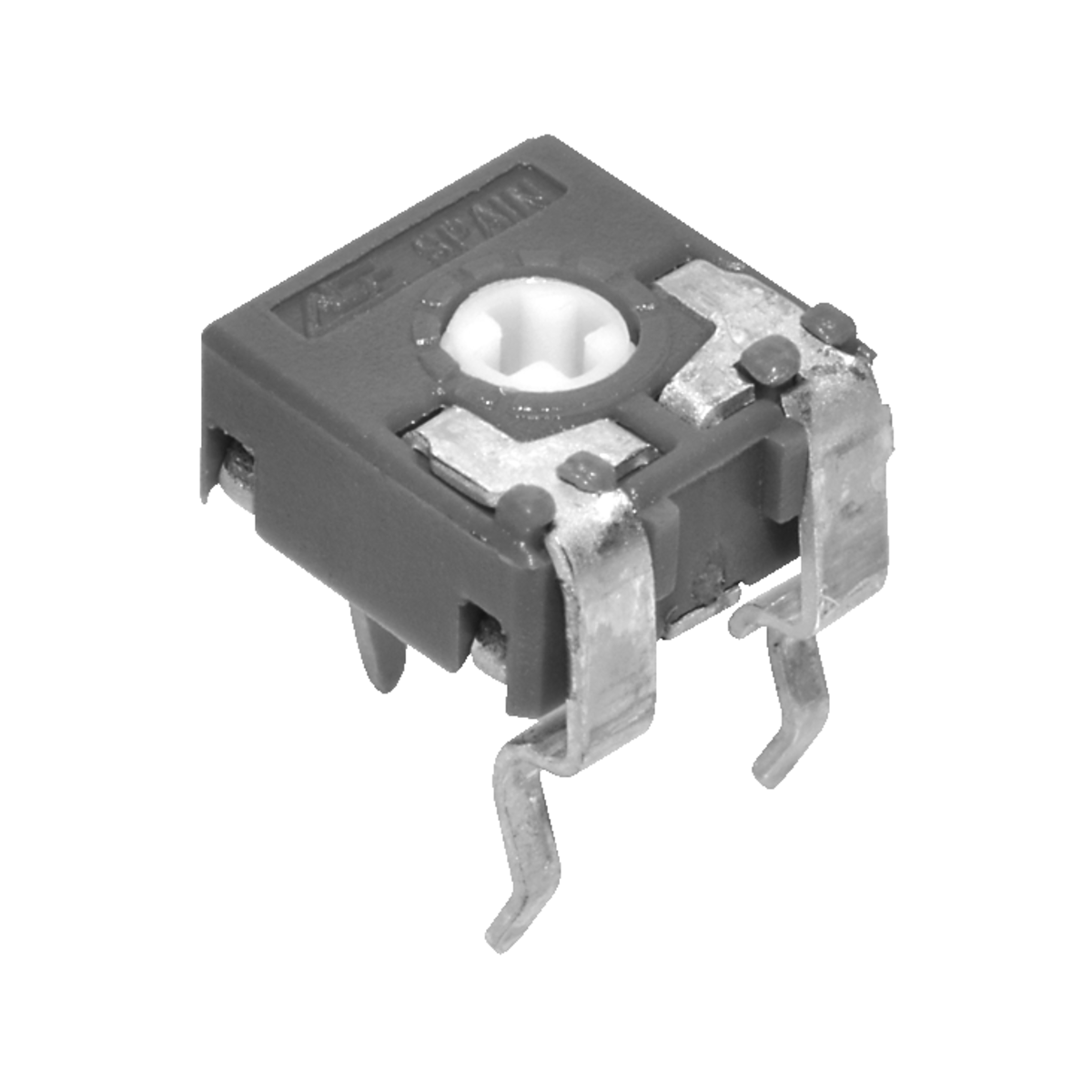

253 | | Manufacturers Part No. CA6XV05-500RA2020(CA6VE500) ACP Carbon film trimmer CA6 horizontal 0,1W 500Ohm 20% Actuation from above crossed slot P5mm | Customer Part No. Customer Project No. | 200 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 100) | Carbon film trimmer | ACP | THT | horizontal | from above | 500.0 | Ohm | 20.0 % | 0.1 W | crossed slot | 235.0 ° | 6.5 mm | 6.5 mm | 8.2 mm | 5.0 mm | -25.0 °C | 70.0 °C | |||||||

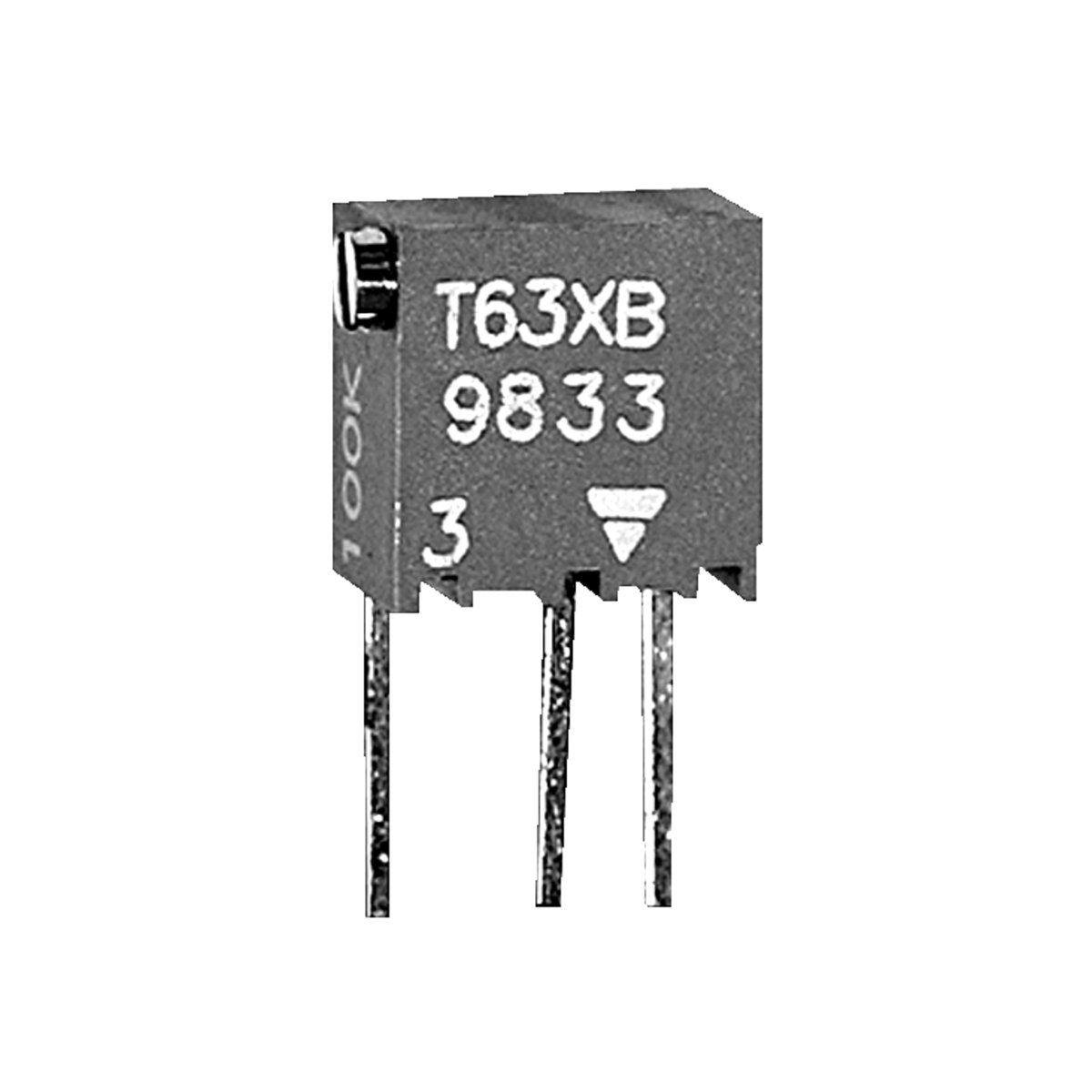

254 | | Manufacturers Part No. T63XB223KT20(T63XBK022) Vishay Cermet spindle trimmer T63 vertical 0,25W 22kOhm 10% Actuation from the side slot P2,54mm | Customer Part No. Customer Project No. | 240 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 10 or mul. of 10) | Cermet spindle trimmer | Vishay | THT | vertical | from the side | 22.0 | kOhm | 10.0 % | 0.25 W | slot | 6.8 mm | 5.0 mm | 10.8 mm | 2.54 mm | -55.0 °C | 155.0 °C | ||||||||
255 | | Manufacturers Part No. FT-63EP-503(FT63EPK050) Copal Cermet trimmer FT-63 vertical 0,5W 50kOhm 10% Actuation from above crossed slot P5mm | Customer Part No. Customer Project No. | 1.900 Pcs. Available (from stock) | (at least 25 or mul. of 25) | Cermet trimmer | Copal | THT | vertical | from above | 50.0 | kOhm | 10.0 % | 0.5 W | crossed slot | 260.0 ° | 7.0 mm | 7.0 mm | 13.0 mm | 5.0 mm | -55.0 °C | 125.0 °C | |||||||
256 | | Manufacturers Part No. PT6KH-103A2020(PT6HK010) Piher Carbon film trimmer PT6 vertical 0,1W 10kOhm 20% Actuation from the side arrow slot P5mm | Customer Part No. Customer Project No. | 1.000 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | vertical | from the side | 10.0 | kOhm | 20.0 % | 0.1 W | arrow slot | 235.0 ° | 3.3 mm | 6.3 mm | 5.0 mm | -25.0 °C | 70.0 °C | ||||||||
257 | | Manufacturers Part No. CA6XV05-1KA2020(CA6VK001) ACP Carbon film trimmer CA6 horizontal 0,1W 1kOhm 20% Actuation from above crossed slot P5mm | Customer Part No. Customer Project No. | 5.500 Pcs. Planned Delivery Time Ø 9 Weeks Available (from stock) | (at least 100 or mul. of 100) | Carbon film trimmer | ACP | THT | horizontal | from above | 1.0 | kOhm | 20.0 % | 0.1 W | crossed slot | 235.0 ° | 6.5 mm | 6.5 mm | 8.2 mm | 5.0 mm | -25.0 °C | 70.0 °C | |||||||
258 | | Manufacturers Part No. T63XB473KT20(T63XBK047) Vishay Cermet spindle trimmer T63 vertical 0,25W 47kOhm 10% Actuation from the side slot P2,54mm | Customer Part No. Customer Project No. | 150 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 10 or mul. of 10) | Cermet spindle trimmer | Vishay | THT | vertical | from the side | 47.0 | kOhm | 10.0 % | 0.25 W | slot | 6.8 mm | 5.0 mm | 10.8 mm | 2.54 mm | -55.0 °C | 155.0 °C | ||||||||
259 | | Manufacturers Part No. FT-63EP-104(FT63EPK100) Copal Cermet trimmer FT-63 vertical 0,5W 100kOhm 10% Actuation from above crossed slot P5mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 25 or mul. of 25) | Cermet trimmer | Copal | THT | vertical | from above | 100.0 | kOhm | 10.0 % | 0.5 W | crossed slot | 260.0 ° | 7.0 mm | 7.0 mm | 13.0 mm | 5.0 mm | -55.0 °C | 125.0 °C | |||||||
260 | | Manufacturers Part No. PT6KH-253A2020(PT6HK025) Piher Carbon film trimmer PT6 vertical 0,1W 25kOhm 20% Actuation from the side arrow slot P5mm | Customer Part No. Customer Project No. | 500 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | vertical | from the side | 25.0 | kOhm | 20.0 % | 0.1 W | arrow slot | 235.0 ° | 3.3 mm | 6.3 mm | 5.0 mm | -25.0 °C | 70.0 °C | ||||||||
261 | | Manufacturers Part No. CA6XV05-5KA2020(CA6VK005) ACP Carbon film trimmer CA6 horizontal 0,1W 5kOhm 20% Actuation from above crossed slot P5mm | Customer Part No. Customer Project No. | 3.000 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 100) | Carbon film trimmer | ACP | THT | horizontal | from above | 5.0 | kOhm | 20.0 % | 0.1 W | crossed slot | 235.0 ° | 6.5 mm | 6.5 mm | 8.2 mm | 5.0 mm | -25.0 °C | 70.0 °C | |||||||
262 | | Manufacturers Part No. FT-63EP-204(FT63EPK200) Copal Cermet trimmer FT-63 vertical 0,5W 200kOhm 10% Actuation from above crossed slot P5mm | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 25 or mul. of 25) | Cermet trimmer | Copal | THT | vertical | from above | 200.0 | kOhm | 10.0 % | 0.5 W | crossed slot | 260.0 ° | 7.0 mm | 7.0 mm | 13.0 mm | 5.0 mm | -55.0 °C | 125.0 °C | |||||||
263 | | Manufacturers Part No. T63XB104KT20(T63XBK100) Vishay Cermet spindle trimmer T63 vertical 0,25W 100kOhm 10% Actuation from the side slot P2,54mm | Customer Part No. Customer Project No. | 370 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 10 or mul. of 10) | Cermet spindle trimmer | Vishay | THT | vertical | from the side | 100.0 | kOhm | 10.0 % | 0.25 W | slot | 6.8 mm | 5.0 mm | 10.8 mm | 2.54 mm | -55.0 °C | 155.0 °C | ||||||||
264 | | Manufacturers Part No. PT6KH-503A2020(PT6HK050) Piher Carbon film trimmer PT6 vertical 0,1W 50kOhm 20% Actuation from the side arrow slot P5mm | Customer Part No. Customer Project No. | 100 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | vertical | from the side | 50.0 | kOhm | 20.0 % | 0.1 W | arrow slot | 235.0 ° | 3.3 mm | 6.3 mm | 5.0 mm | -25.0 °C | 70.0 °C | ||||||||
265 | | Manufacturers Part No. CA6XV05-10KA2020(CA6VK010) ACP Carbon film trimmer CA6 horizontal 0,1W 10kOhm 20% Actuation from above crossed slot P5mm | Customer Part No. Customer Project No. | 4.900 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 100) | Carbon film trimmer | ACP | THT | horizontal | from above | 10.0 | kOhm | 20.0 % | 0.1 W | crossed slot | 235.0 ° | 6.5 mm | 6.5 mm | 8.2 mm | 5.0 mm | -25.0 °C | 70.0 °C | |||||||
266 | | Manufacturers Part No. FT-63EP-504(FT63EPK500) Copal Cermet trimmer FT-63 vertical 0,5W 500kOhm 10% Actuation from above crossed slot P5mm | Customer Part No. Customer Project No. | 275 Pcs. Available (from stock) | (at least 25 or mul. of 25) | Cermet trimmer | Copal | THT | vertical | from above | 500.0 | kOhm | 10.0 % | 0.5 W | crossed slot | 260.0 ° | 7.0 mm | 7.0 mm | 13.0 mm | 5.0 mm | -55.0 °C | 125.0 °C | |||||||
267 | | Manufacturers Part No. PT6KH-254A2020(PT6HK250) Piher Carbon film trimmer PT6 vertical 0,1W 250kOhm 20% Actuation from the side arrow slot P5mm | Customer Part No. Customer Project No. | 1.000 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | vertical | from the side | 250.0 | kOhm | 20.0 % | 0.1 W | arrow slot | 235.0 ° | 3.3 mm | 6.3 mm | 5.0 mm | -25.0 °C | 70.0 °C | ||||||||
268 | | Manufacturers Part No. T63XB471KT20(T63XBE470) Vishay Cermet spindle trimmer T63 vertical 0,25W 470Ohm 10% Actuation from the side slot P2,54mm | Customer Part No. Customer Project No. | 120 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 10 or mul. of 10) | Cermet spindle trimmer | Vishay | THT | vertical | from the side | 470.0 | Ohm | 10.0 % | 0.25 W | slot | 6.8 mm | 5.0 mm | 10.8 mm | 2.54 mm | -55.0 °C | 155.0 °C | ||||||||
269 | | Manufacturers Part No. CA6XV05-25KA2020(CA6VK025) ACP Carbon film trimmer CA6 horizontal 0,1W 25kOhm 20% Actuation from above crossed slot P5mm | Customer Part No. Customer Project No. | 3.000 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 100) | Carbon film trimmer | ACP | THT | horizontal | from above | 25.0 | kOhm | 20.0 % | 0.1 W | crossed slot | 235.0 ° | 6.5 mm | 6.5 mm | 8.2 mm | 5.0 mm | -25.0 °C | 70.0 °C | |||||||
270 | | Manufacturers Part No. PT6KH-504A2020(PT6HK500) Piher Carbon film trimmer PT6 vertical 0,1W 500kOhm 20% Actuation from the side arrow slot P5mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 6 Weeks Available on order | (at least 1000 or mul. of 1000) | Carbon film trimmer | Piher | THT | vertical | from the side | 500.0 | kOhm | 20.0 % | 0.1 W | arrow slot | 235.0 ° | 3.3 mm | 6.3 mm | 5.0 mm | -25.0 °C | 70.0 °C | ||||||||
271 | | Manufacturers Part No. CA6XV05-50KA2020(CA6VK050) ACP Carbon film trimmer CA6 horizontal 0,1W 50kOhm 20% Actuation from above crossed slot P5mm % | Customer Part No. Customer Project No. | 10.400 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 100) | Carbon film trimmer | ACP | THT | horizontal | from above | 50.0 | kOhm | 20.0 % | 0.1 W | crossed slot | 235.0 ° | 6.5 mm | 6.5 mm | 8.2 mm | 5.0 mm | -25.0 °C | 70.0 °C | |||||||
272 | | Manufacturers Part No. CA6XV05-100KA2020(CA6VK100) ACP Carbon film trimmer CA6 horizontal 0,1W 100kOhm 20% Actuation from above crossed slot P5mm | Customer Part No. Customer Project No. | 5.600 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 100) | Carbon film trimmer | ACP | THT | horizontal | from above | 100.0 | kOhm | 20.0 % | 0.1 W | crossed slot | 235.0 ° | 6.5 mm | 6.5 mm | 8.2 mm | 5.0 mm | -25.0 °C | 70.0 °C | |||||||
273 | | Manufacturers Part No. CA6XV05-500KA2020(CA6VK500) ACP Carbon film trimmer CA6 horizontal 0,1W 500kOhm 20% Actuation from above crossed slot P5mm | Customer Part No. Customer Project No. | 700 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 100) | Carbon film trimmer | ACP | THT | horizontal | from above | 500.0 | kOhm | 20.0 % | 0.1 W | crossed slot | 235.0 ° | 6.5 mm | 6.5 mm | 8.2 mm | 5.0 mm | -25.0 °C | 70.0 °C | |||||||
274 | | Manufacturers Part No. CA9MH2,5-10KA2020(CA9MHK010) ACP Carbon film trimmer CA9 vertical 0,15W 10kOhm 20% Actuation from the side hexagon P5mm | Customer Part No. Customer Project No. | 2.400 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 100) | Carbon film trimmer | ACP | THT | vertical | from the side | 10.0 | kOhm | 20.0 % | 0.15 W | hexagon | 240.0 ° | 9.8 mm | 5.2 mm | 11.0 mm | 5.0 mm | -25.0 °C | 70.0 °C | |||||||
275 | | Manufacturers Part No. CA9PH2,5-500RA2020(CA9HE500) ACP Carbon film trimmer CA9 vertical 0,15W 500Ohm 20% Actuation from the side arrow slot P5mm | Customer Part No. Customer Project No. | 1.900 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 100) | Carbon film trimmer | ACP | THT | vertical | from the side | 500.0 | Ohm | 20.0 % | 0.15 W | arrow slot | 240.0 ° | 9.8 mm | 5.2 mm | 16.0 mm | 5.0 mm | -25.0 °C | 70.0 °C |
