87500873

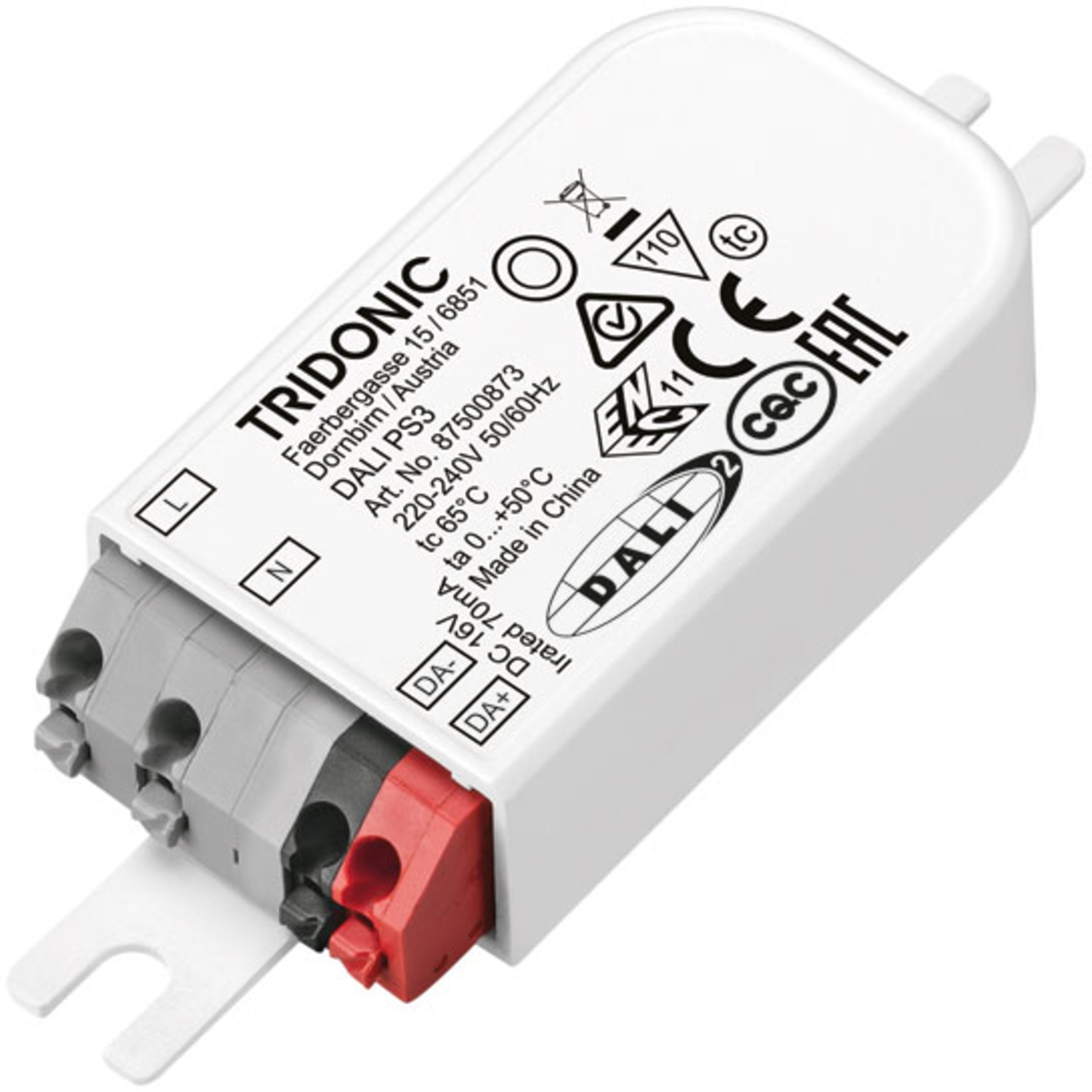

Tridonic DALI PS3 AC/DC LED power supply unit CV 1,2W 0,07A IP20 Dali-2

TRID87500873TRID87500873
Manufacturer Part No.
87500873
Schukat Part No.
TRID87500873
Manufacturer
Tridonic
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

124 Pcs. in stock

Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 60 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable surge protection devices.
Here you will find suitable inrush current limiters.
Here you will find suitable EMC & noise suppression components.
Operating mode
CV
Output Power
1.2 W
Output Current Max.
0.105 A
Output current
0.070 A
Protection Class IP
IP20
Interfaces
Dali-2
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Tridonic
Product Family
  • DALI components
Series
  • DALI PS3
Alternative Part Number
  • DALI PS3
Product group
  • M5195
Application
  • Lighting
Operating mode
  • CV
Package/Case
  • Enclosed Plastic

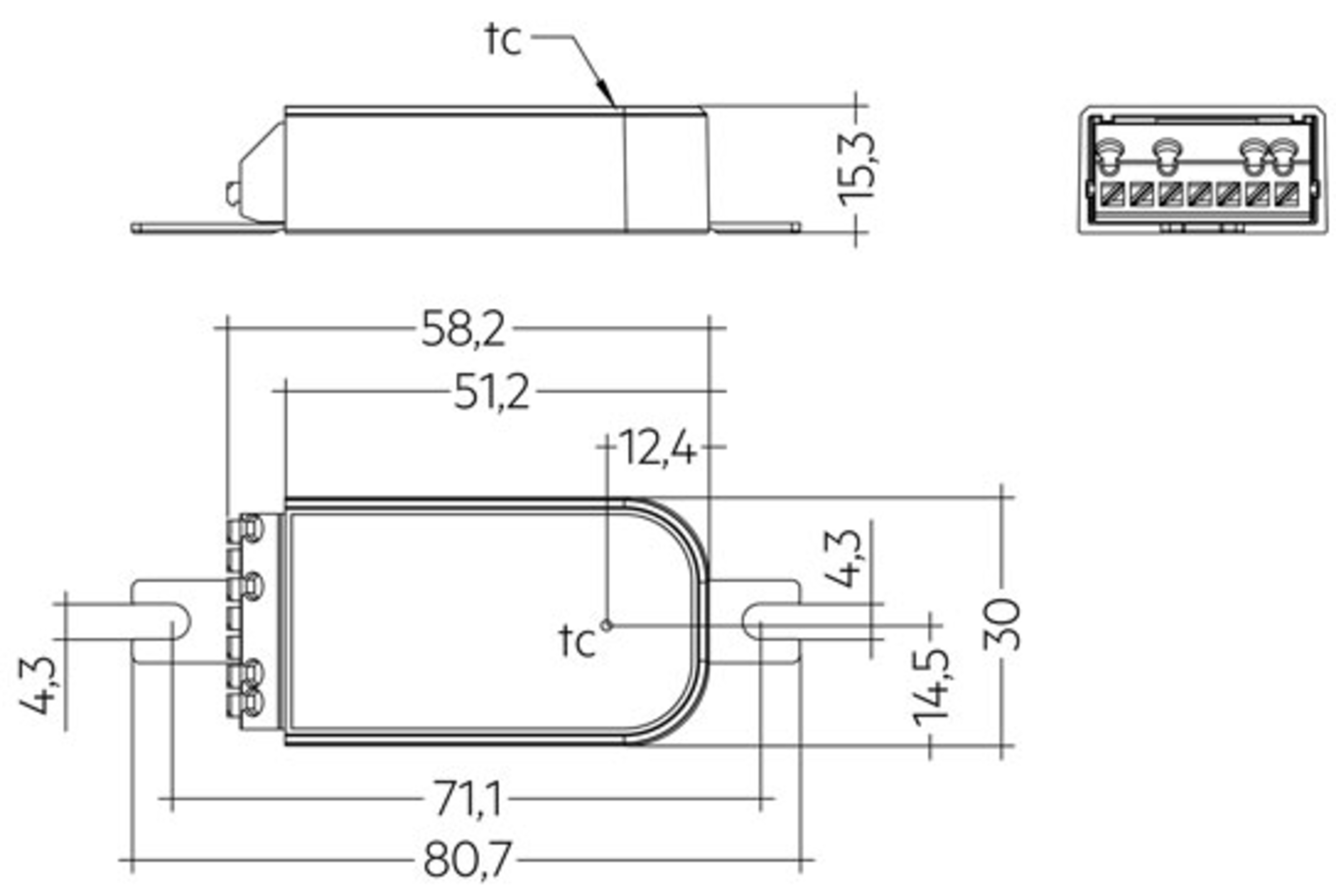

Dimension: Length
  • 80.7 mm
Dimension: Width
  • 30 mm
Dimension: Height
  • 15.3 mm
Weight
  • 20 g
Dimmable
Interfaces
  • Dali-2
Manufacturer's warranty (years)
  • 5
Product description
  • DALI PS3 was developed in accordance with EN 62386-101 Ed.2.1, also known as DALI-2. DALI-2. DALI PS3 is a power supply that is operated with 16 V DC and supplies 70 mA. With the 70 mA current provided, up to 35 DALI loads can be connected.
Application note
  • Power supply for the operation of LED light sources. Used electronic devices are recyclable materials and do not belong in household waste. If the device is at the end of its service life, dispose of it in accordance with the applicable legal regulations at the collection points of the disposal system. Disposal via the household waste is prohibited.
Notice

Operating conditions

Operating expectation
  • 100,000 h
Operating Temperature Min.
  • -20 °C
Operating Temperature Max.
  • 65 °C

Input

Mains frequency min.
  • 50 Hz
Mains frequency max.
  • 60 Hz
Input voltage min. AC
  • 220 V
Input voltage max. AC
  • 240 V
Input current
  • 0.017 A
No load power, less than
  • 0.31 W
Power factor correction (PFC)
Connection type, input
  • Push-In Terminal

Output

Number of outputs
  • 1
Output Power
  • 1.2 W
Output current
  • 0.070 A
Output Current Max.
  • 0.105 A
Overload protection
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Push-In Terminal

Safety/Certifications

Protection class
  • II
Protection Class IP
  • IP20
Approvals
  • CE
  • EAC
  • EN
  • KC
  • RCM
Standards (EMC)
  • EN 55015

Documents

ECO-ZGR-87500873-Component-EU-2022-08-12_DE.pdf
Download (pdf, 1.504 KB)

Other Products

All Products of the Series
Loading...
24034323
Tridonic

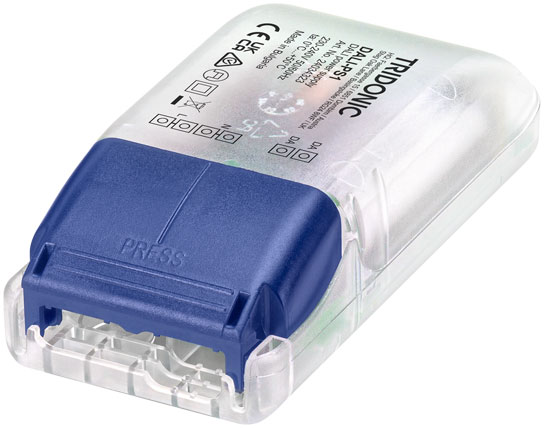

DALI-PS1 AC/DC LED power supply unit CV 4W 0,2A IP20 Dali-2
from 96,70 €
Loading...
28000876
Tridonic

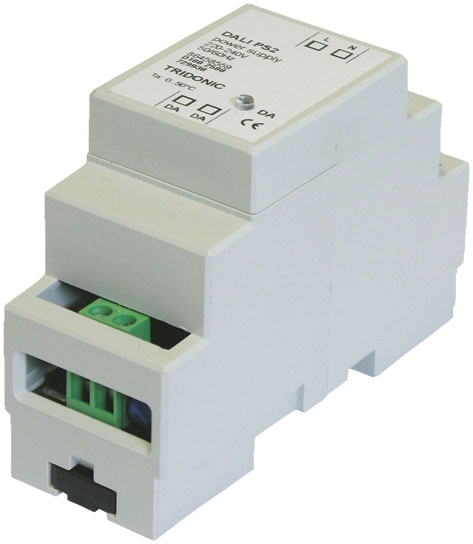

DALI PS2 TRI AC/DC LED power supply unit CV 4,7W 13,5V 0,24A IP20 Dali-2
