HomeProductsPower SuppliesLED-Dimmers & ControllersDALI-PCD 1-380 one4all G328004625

28004625

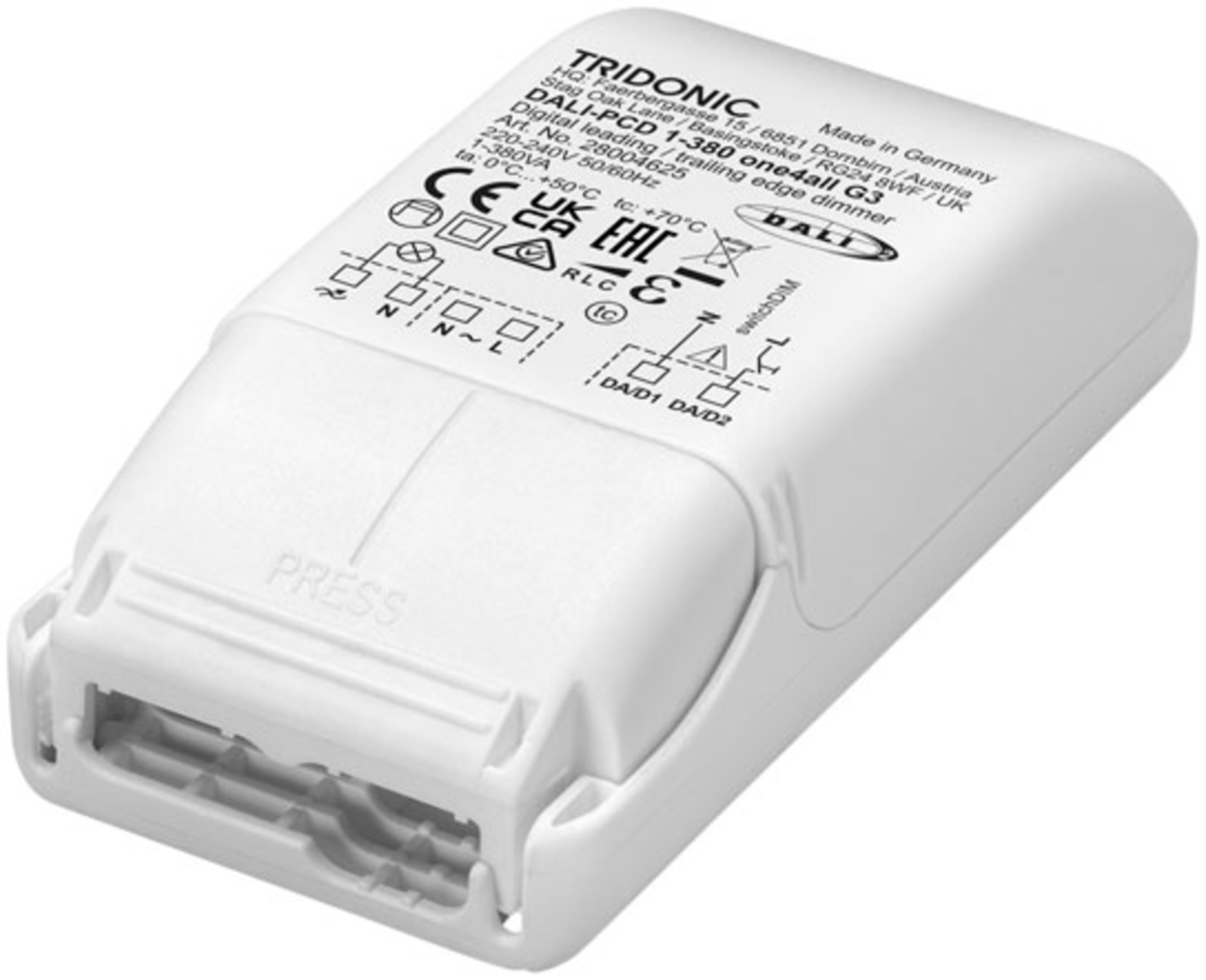

Tridonic Push Dimming Dali-2 Trailing Edge Mode Leading Edge Mode Dimmer 380 W 220 V 240 V

TRID28004625TRID28004625
Manufacturer Part No.
28004625
Schukat Part No.
TRID28004625
Manufacturer
Tridonic
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

7 Pcs. in stock

Planned delivery time
Ø 10 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Dimmer
Number of outputs
1
Interfaces
Dali-2
Leading Edge Mode
Push Dimming
Trailing Edge Mode
Output Power
380 W
Input voltage min. DC
220 V
Input voltage max. DC
240 V
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Tridonic
Product Family
  • DALI Komponenten
Series
  • DALI-PCD 1-380 one4all G3
Alternative Part Number
  • DALI-PCD 1-380 one4all G3
Product group
  • M5195
Application
  • Lighting
Type
  • Dimmer
Package/Case
  • Enclosed Plastic

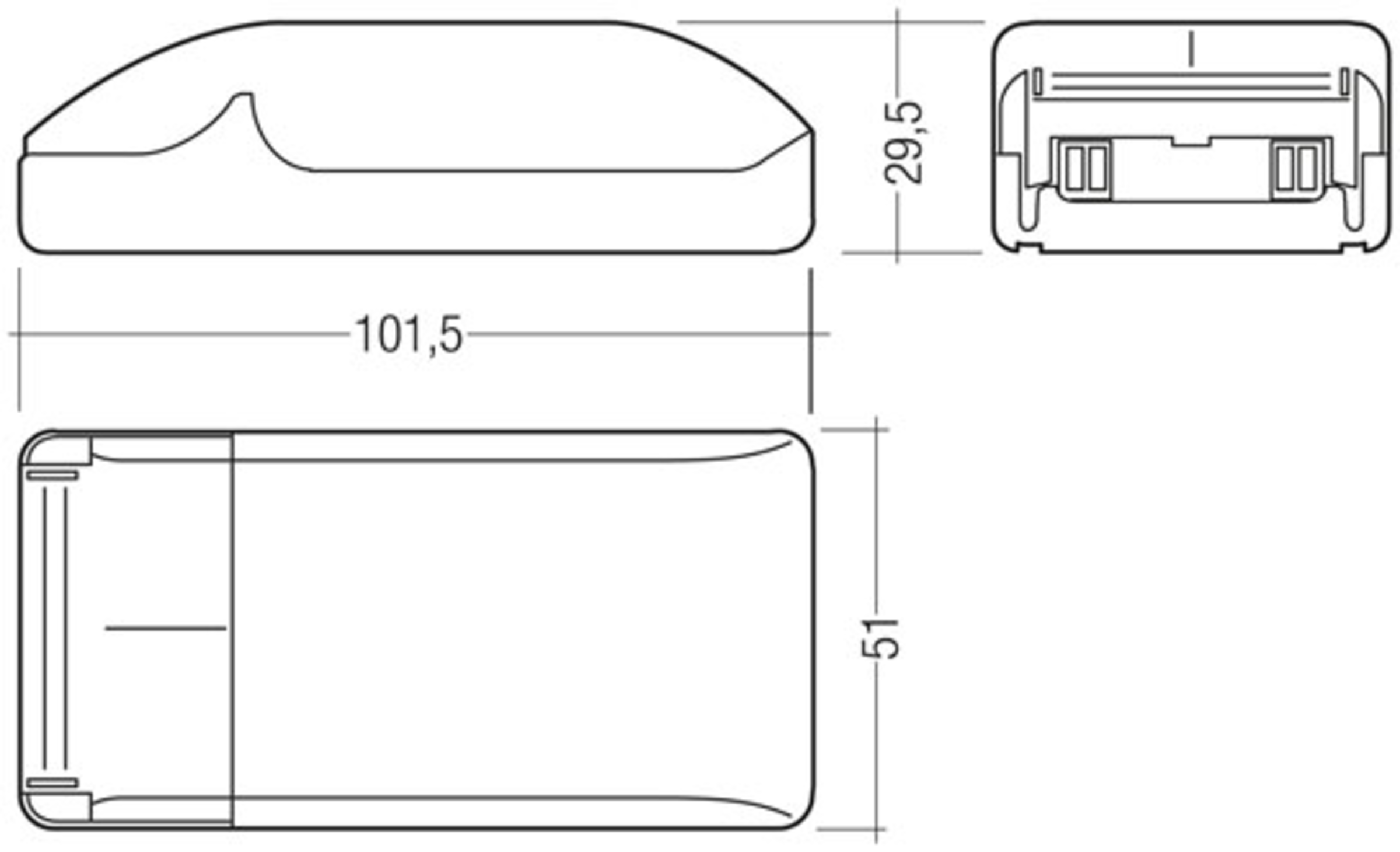

Dimension: Length
  • 101.5 mm
Dimension: Width
  • 51 mm
Dimension: Height
  • 29.5 mm
Weight
  • 85 g
Interfaces
  • Dali-2
  • Leading Edge Mode
  • Push Dimming
  • Trailing Edge Mode
Manufacturer's warranty (years)
  • 5
Product description
  • Phase dimmer with automatic load detection, leading or trailing. Controlled via switches (switchDIM and corridorFUNCTION) or a DALI signal. Total connected load: 1-380 VA Digital phase dimmers enable low-voltage halogen lamps to be dimmed in conjunction with electronic or magnetic transformers and ohmic light sources (incandescent lamps) with a total output of 1 to 380 VA. It is controlled either via a DALI or directly connected switches. The digital phase dimmer is compatible with LED retrofit lamps. We recommend testing the operation of LED retrofit lamps before installation. LV halogen LED retrofit lamps that are perated with an electronic or magnetic transformer are also compatible.

Operating conditions

Operating expectation
  • 50,000 h
Operating Temperature Min.
  • 0 °C
Operating Temperature Max.
  • 50 °C
Storage Temperature Min.
  • -20 °C
Storage Temperature Max.
  • 50 °C

Input

Input voltage min. DC
  • 220 V
Input voltage max. DC
  • 240 V
Connection type, input
  • Push-In Terminal

Output

Number of outputs
  • 1
Output Power
  • 380 W
Output Voltage Min.
  • 220 V
Output Voltage Max.
  • 240 V
Overload protection
Overvoltage protection
Overtemperature protection
Dimming range, min.
  • 1 %
Dimming range, max.
  • 100 %
Connection type, output
  • Push-In Terminal

Safety/Certifications

Protection class
  • II
Protection Class IP
  • IP20
Approvals
  • CE
  • ENEC
  • RCM
  • UKCA
Standards (safety)
  • EN 61347-1
