28003542

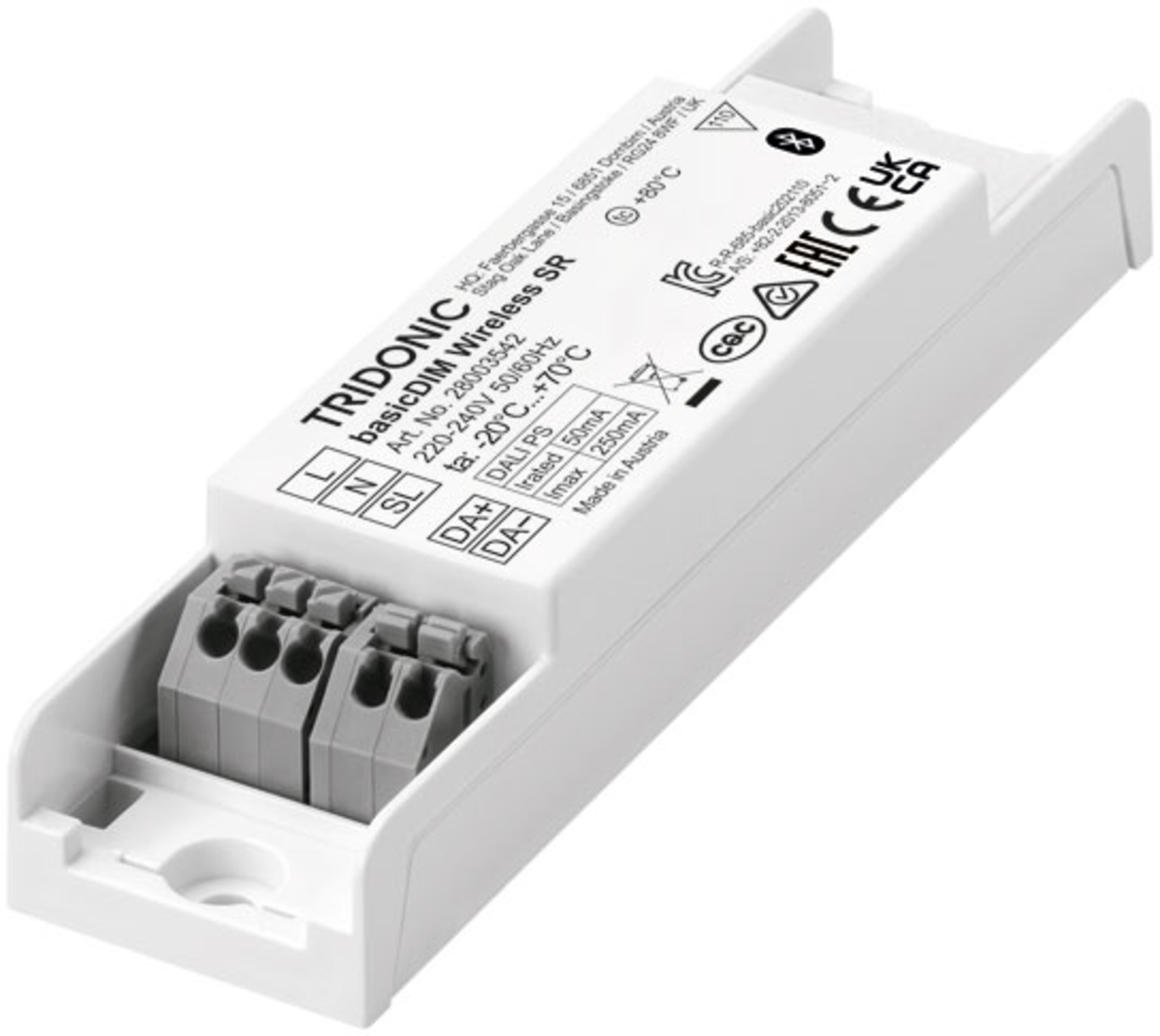

Tridonic Casambi Bluetooth PWM Dimmer CV 144 W 6 A 12 V 24 V

TRID28003542TRID28003542
Manufacturer Part No.
28003542
Schukat Part No.
TRID28003542
Manufacturer
Tridonic
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

5 Pcs. in stock

Planned delivery time
Ø 10 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Bluetooth - DALI Controller
Number of outputs
4
Interfaces
Bluetooth
Casambi
PWM
Operating mode
CV
Output Power
144 W
Output current
6.000 A
Input voltage min. DC
12 V
Input voltage max. DC
24 V
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Tridonic
Product Family
  • Wireless components
Series
  • basicDIM Wireless SR
Alternative Part Number
  • basicDIM Wireless SR
Product group
  • M5192
Type
  • Bluetooth - DALI Controller
Operating mode
  • CV
Package/Case
  • Enclosed Plastic
Dimension: Length
  • 119 mm
Dimension: Width
  • 30 mm
Dimension: Height
  • 21 mm
Weight
  • 36 g
Interfaces
  • Bluetooth
  • Casambi
  • PWM
Manufacturer's warranty (years)
  • 5
Product description

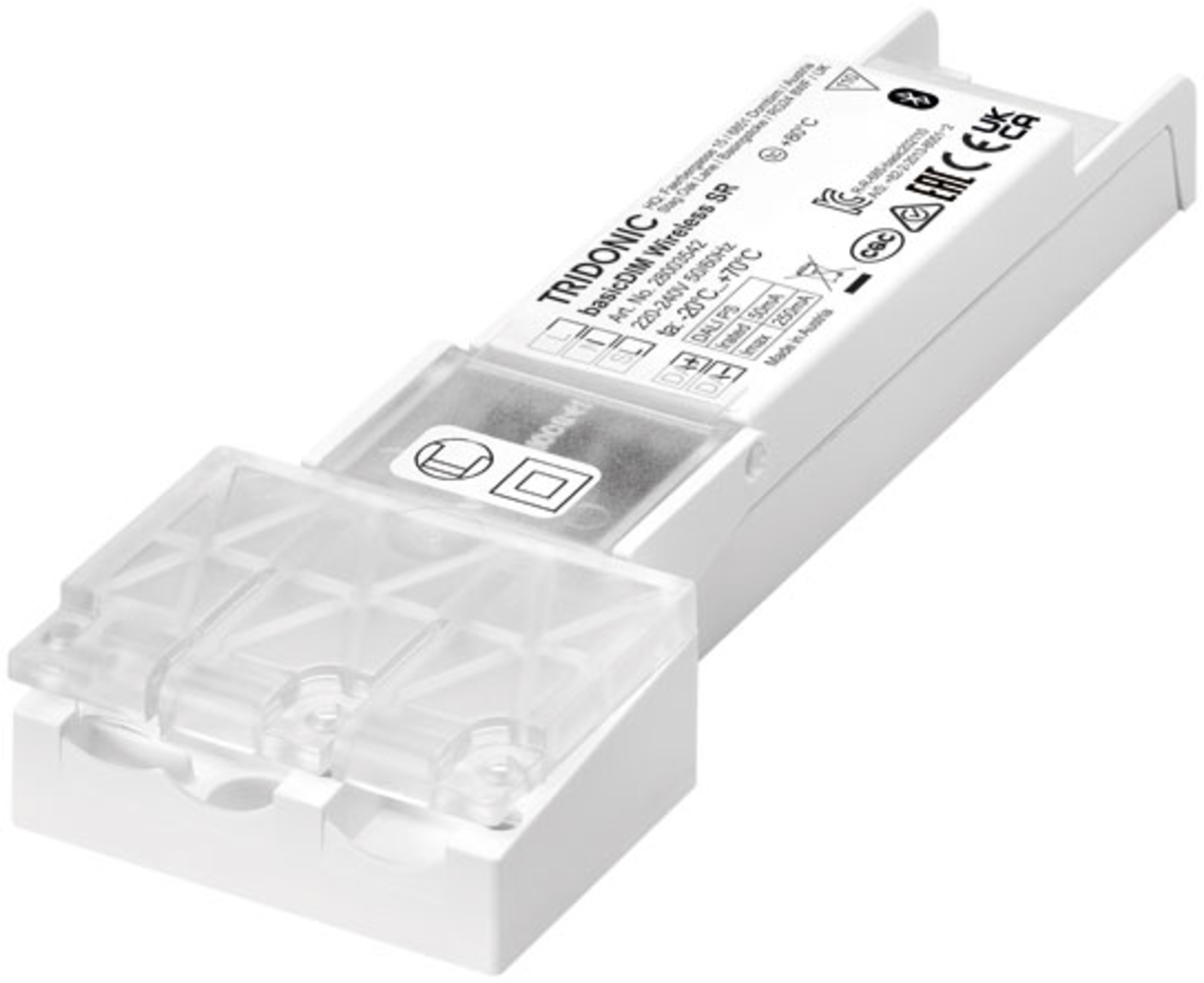

  • The basicDIM Wireless SR is a Bluetooth DALI controller with a freely configurable push-button input and features an integrated DALI power supply. Consequently, no external DALI power supply is required. The device is designed for use in a luminaire, but can also be used safely in ceiling installations, for example, with the optional strain relief kit. The module can be connected to one or more DALI drivers, including in combination with a DALI XC G3 or Tridonic DALI MSensor for easy integration of daylight control and motion detection. The basicDIM Wireless SR can also be used as a DALI gateway to combine a wired DALI line with wireless luminaires, sensors and push-buttons. DALI commands can be transmitted from the Bluetooth network via the DALI gateway to the physical DALI line and processed by a DALI-2 application controller.
Application note
  • Please note that the basicDIM Wireless SR must not be connected to DALI lines that are already supplied by a DALI power supply. All basicDIM Wireless devices can be controlled using the Tridonic “4remote BT” app. The app can be downloaded free of charge from the Apple App Store and Google Play Store.

Operating conditions

Operating expectation
  • 100,000 h
Operating Temperature Min.
  • -20 °C
Operating Temperature Max.
  • 45 °C
Storage Temperature Min.
  • -25 °C
Storage Temperature Max.
  • 75 °C

Input

Input voltage min. DC
  • 12 V
Input voltage max. DC
  • 24 V

Output

Number of outputs
  • 4
Output Power
  • 144 W
Output current
  • 6.000 A

Safety/Certifications

Protection Class IP
  • IP20
Approvals
  • CE
  • EAC
  • EN
  • KC
  • RCM
Standards (EMC)
  • EN 55015
  • EN 55032
Standards (safety)
  • EN 61347-1

Documents

IBU-ZGR-TRI-2410725-EU202528003542-ISUG1200000-DE.pdf
Download (pdf, 611 KB)

Other Products

All Products of the Series
Loading...
28002213
Tridonic
Casambi Bluetooth PWM Dimmer CV 144 W 6 A 12 V 24 V
from 133,33 €
Loading...
28002420
Tridonic
Casambi Bluetooth PWM Dimmer CV 144 W 6 A 12 V 24 V
from 133,33 €
Loading...
28002575
Tridonic

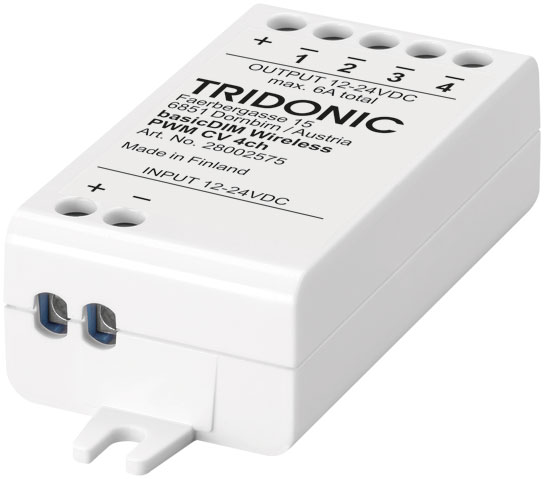

Casambi Bluetooth Dimmer CV 144 W 6 A 12 V 24 V
from 75,28 €
Loading...
28003540
Tridonic

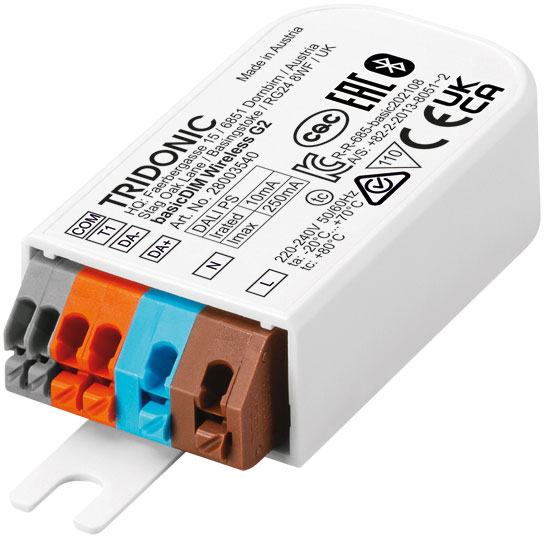

Casambi Bluetooth PWM Dimmer CV 144 W 0,25 A 12 V 24 V
from 60,37 €
Loading...
28003541
Tridonic

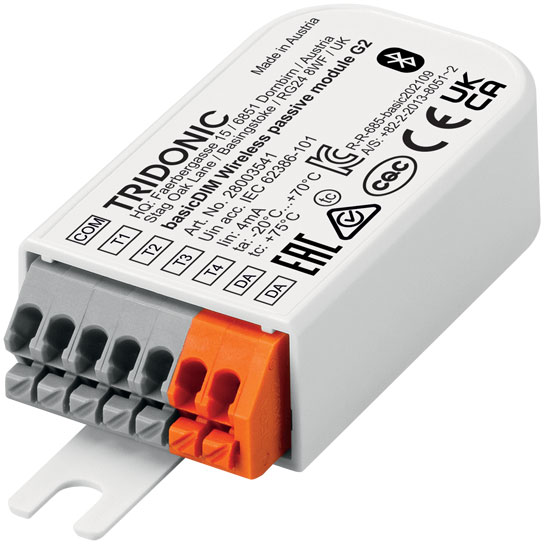

Casambi Bluetooth PWM Dimmer CV 144 W 0,25 A 9,5 V 22,5 V
