HomeProductsPower SuppliesAC/DC LED Power SuppliesAC/DC LED Power Supplies Constant Voltage (CV & CV/CC)LC 18W 24V one4all lp PRE28003519

28003519

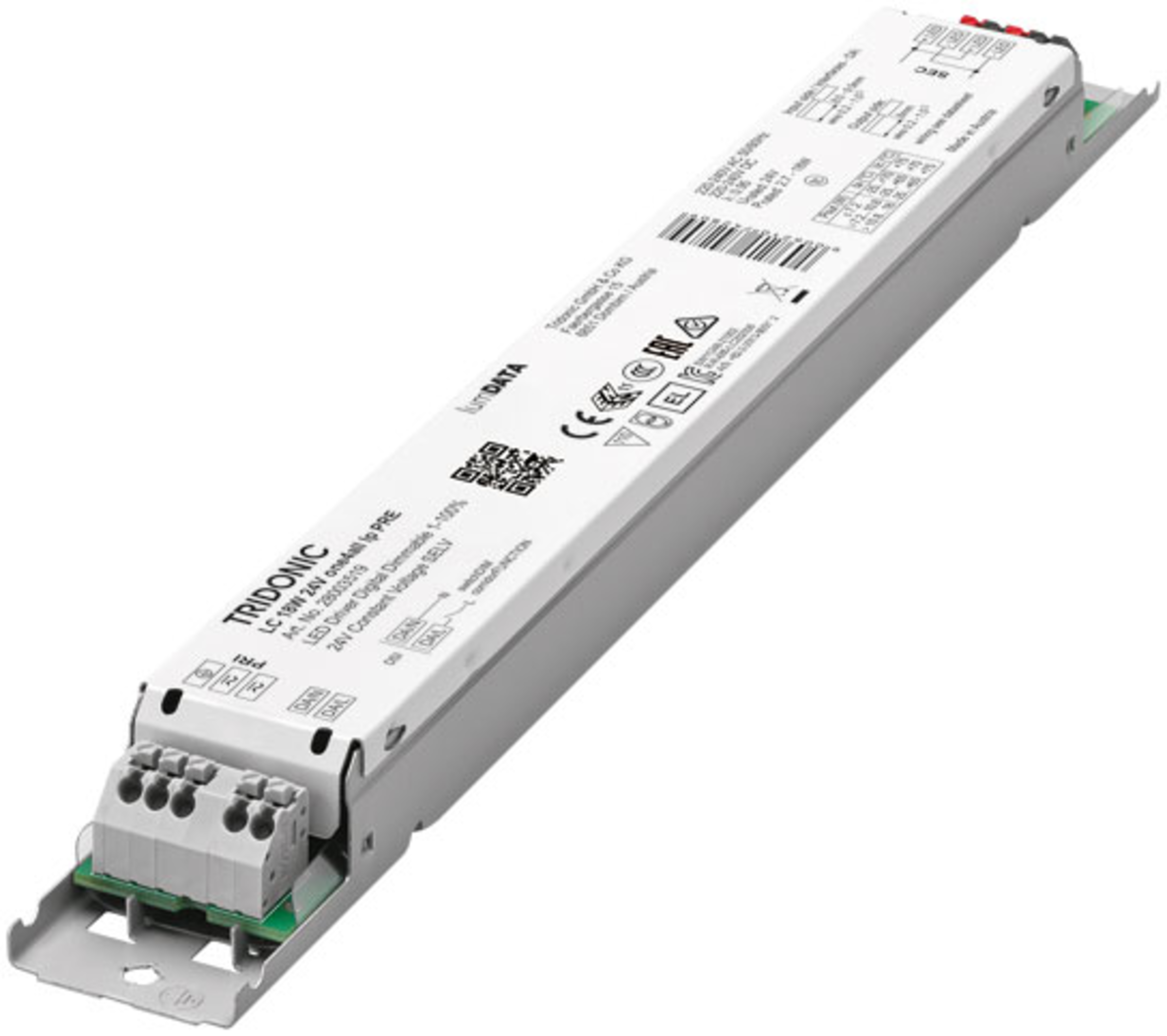

Tridonic LC 18W 24V one4all lp PRE AC/DC LED power supply unit CV 18W 24V 0,75A IP20 Dali-2 Push Dimming

TRID28003519TRID28003519TRID28003519
NEW
Manufacturer Part No.
28003519
Schukat Part No.
TRID28003519
Manufacturer
Tridonic
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

10 Pcs. in stock

Planned delivery time
---
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
EOL 28.01.2026
Cancelled by manufacturer without replacement
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable surge protection devices.
Here you will find suitable inrush current limiters.
Here you will find suitable EMC & noise suppression components.
Operating mode
CV
Output Power
18 W
Output voltage
24 V
Output current
0.750 A
Protection Class IP
IP20
Interfaces
Dali-2
Push Dimming
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Tridonic
Series
  • LC 18W 24V one4all lp PRE
Alternative Part Number
  • LC 18W 24V one4all lp PRE
Product group
  • M5177
Application
  • Lighting
Operating mode
  • CV
Package/Case
  • Enclosed Metal
Dimension: Length
  • 280 mm
Dimension: Width
  • 30 mm
Dimension: Height
  • 21 mm
Weight
  • 185 g
Label
  • SELV
Dimmable
Interfaces
  • Dali-2
  • Push Dimming
Manufacturer's warranty (years)
  • 5
Features
  • DC compatible
  • Emergency Lighting Unit
Application note
  • Power supply for the operation of LED light sources. Used electronic devices are recyclable materials and do not belong in household waste. If the device is at the end of its service life, dispose of it in accordance with the applicable legal regulations at the collection points of the disposal system. Disposal via the household waste is prohibited.
Notice

Operating conditions

Operating expectation
  • 50,000 h
Operating Temperature Min.
  • -25 °C
Operating Temperature Max.
  • 70 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 80 °C

Input

Mains frequency min.
  • 50 Hz
Mains frequency max.
  • 60 Hz
Input voltage min. AC
  • 198 V
Input voltage max. AC
  • 264 V
Input voltage min. DC
  • 178 V
Input voltage max. DC
  • 280 V
Input current
  • 0.103 A
Efficiency
  • 83.4 %
No load power, less than
  • 2 W
Power consumption in standby mode (PSB), less than
  • 0.5 W
Power consumption in networked standby mode (Pnet), less than
  • 0.5 W
Leakage current, max.
  • 0.5 mA
Inrush current, max.
  • 8.4 A
Max. number on B16 circuit breaker
  • 35
Max. number on C16 circuit breaker
  • 58
Power factor correction (PFC)
Power factor
  • 0.95
Connection type, input
  • Push-In Terminal

Output

Number of outputs
  • 1
Output Power
  • 18 W
Output voltage
  • 24 V
Output voltage tolerance
  • -1.1 %
Output current
  • 0.750 A
Overload protection
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Push-In Terminal

Safety/Certifications

Protection class
  • I
Protection Class IP
  • IP20
Approvals
  • CCC
  • CE
  • EAC
  • EN
  • ENEC
  • IC
  • RCM
  • UKCA
Standards (EMC)
  • EN 55015
Standards (safety)
  • EN 61347-1
  • EN 61347-2-13

Documents

ECO-ZGR-28003519-Component-EU-2024-12-13.pdf
Download (pdf, 1.492 KB)
