HomeProductsPower SuppliesAC/DC LED Power SuppliesAC/DC LED Power Supplies Constant Current (CC)LC 25W 100-500mA flexC lp EXC28000679

28000679

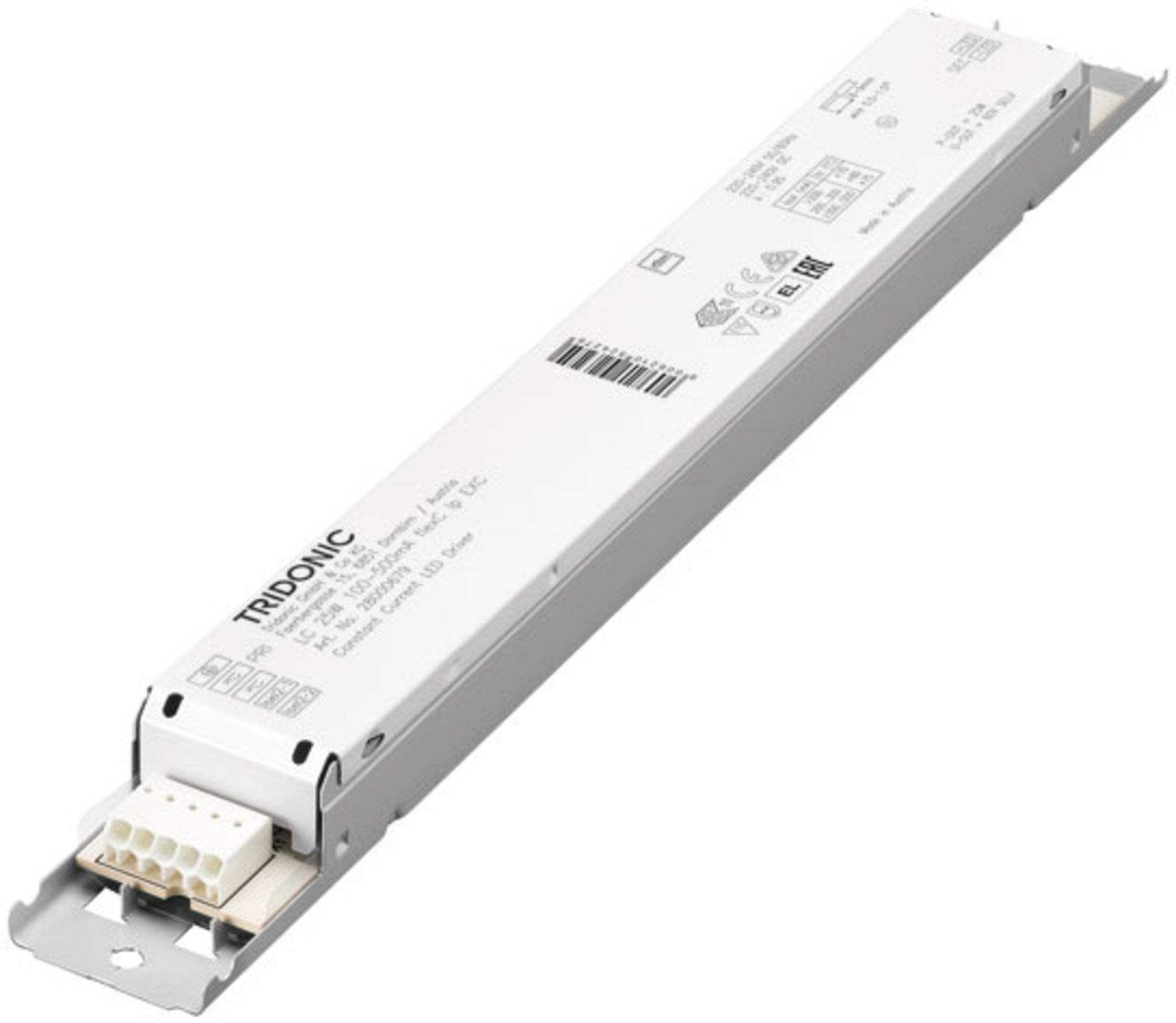

Tridonic LC 25W 100-500mA flexC lp EXC AC/DC LED power supply unit CC 25W 0,5A IP20 not dimmable

TRID28000679TRID28000679TRID28000679
NEW
Manufacturer Part No.
28000679
Schukat Part No.
TRID28000679
Manufacturer
Tridonic
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

9 Pcs. in stock

Planned delivery time
Ø 3 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
NRND
Not Recommended for New Designs
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Operating mode
CC
Output Power
25 W
Output current
0.500 A
Output Voltage Min.
20 V
Output Voltage Max.
50 V
Protection Class IP
IP20
Interfaces
not dimmable
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Tridonic
Series
  • LC 25W 100-500mA flexC lp EXC
Alternative Part Number
  • LC 25W 100-500mA flexC lp EXC
Product group
  • M5159
Application
  • Lighting
Operating mode
  • CC
Package/Case
  • Enclosed Metal

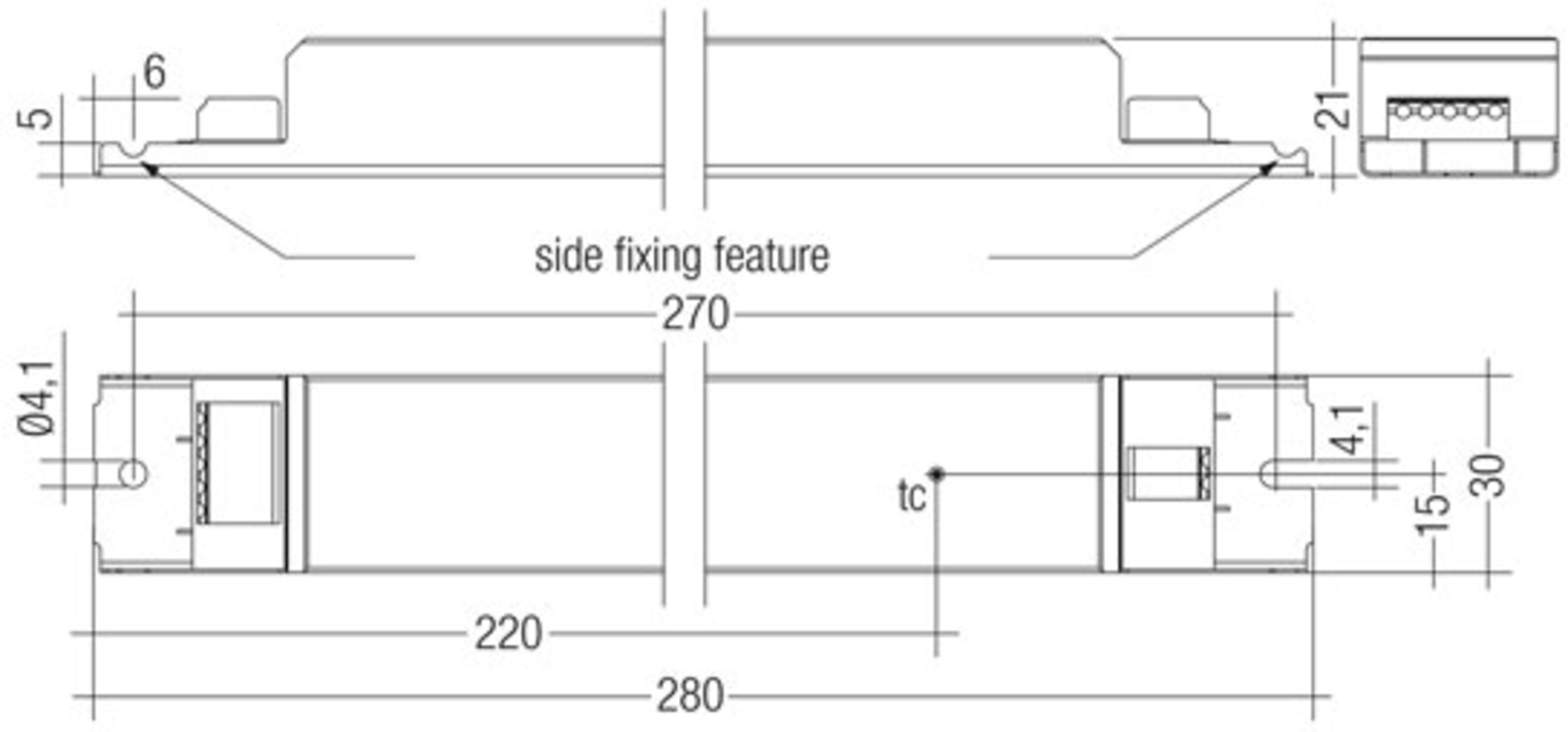

Dimension: Length
  • 280 mm
Dimension: Width
  • 30 mm
Dimension: Height
  • 21 mm
Weight
  • 169 g
Label
  • SELV
Dimmable
Interfaces
  • not dimmable
Manufacturer's warranty (years)
  • 5
Features
  • DC compatible
  • Emergency Lighting Unit
  • Output Current Selectable

Operating conditions

Operating expectation
  • 100,000 h
Operating Temperature Min.
  • -25 °C
Operating Temperature Max.
  • 60 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 80 °C

Input

Mains frequency min.
  • 50 Hz
Mains frequency max.
  • 60 Hz
Input voltage min. AC
  • 198 V
Input voltage max. AC
  • 264 V
Input voltage min. DC
  • 176 V
Input voltage max. DC
  • 280 V
Input current
  • 0.13 A
Efficiency
  • 87 %
No load power, less than
  • 0.53 W
Leakage current, max.
  • 0.25 mA
Inrush current, max.
  • 21 A
Max. number on B16 circuit breaker
  • 36
Max. number on C16 circuit breaker
  • 60
Power factor correction (PFC)
Power factor
  • 0.95
Connection type, input
  • Push-In Terminal

Output

Number of outputs
  • 1
Output Power
  • 25 W
Output Voltage Min.
  • 20 V
Output Voltage Max.
  • 50 V
Selectable output currents (A)
  • 0,1;0,125;0,15;0,175;0,2;0,225;0,25;0,275;0,3;0,325;0,35;0,375;0,4;0,425;0,45;0,475;0,5
Output current
  • 0.500 A
Output current tolerance
  • -5.5 %
Current ripple
  • 5 %
Overload protection
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Push-In Terminal

Safety/Certifications

Protection class
  • I
Protection Class IP
  • IP20
Approvals
  • BIS
  • CCC
  • CE
  • EAC
  • EN
  • ENEC
  • RCM
  • UKCA
Standards (EMC)
  • EN 55015
Standards (safety)
  • EN 61347-1
  • EN 61347-2-13

Documents

ECO-ZGR-28000679-Component-EU-2024-11-12.pdf
Download (pdf, 1.477 KB)

Other Products

All Products of the Series
NEW
Loading...
28000680
Tridonic
LC 50W 100-400mA flexC lp EXC AC/DC LED power supply unit CC 50W 0,4A IP20 not dimmable
from €12.70
NEW
Loading...
28000681
Tridonic
LC 50W 350-1050mA flexC lp EXC AC/DC LED power supply unit CC 50,4W 1,05A IP20 not dimmable
from €19.16
NEW
Loading...
28000713
Tridonic
LC 75W 100-400mA flexC lp EXC AC/DC LED power supply unit CC 75W 0,4A IP20 not dimmable
from €13.12
NEW
Loading...
87500919
Tridonic

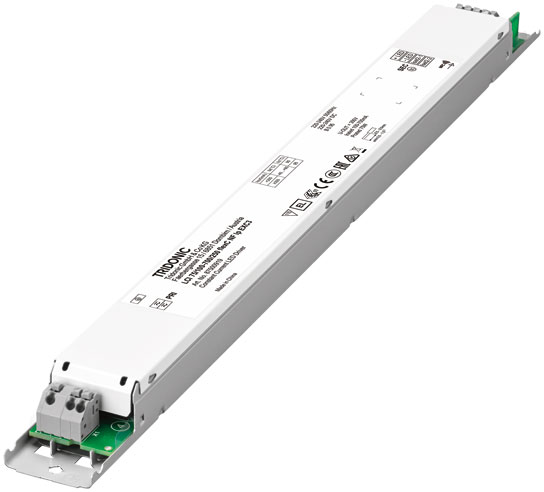

LCI 75/100-700/250 flexC NF lp EXC3 AC/DC LED power supply unit CC 75,6W 0,7A IP20 not dimmable
