28000673

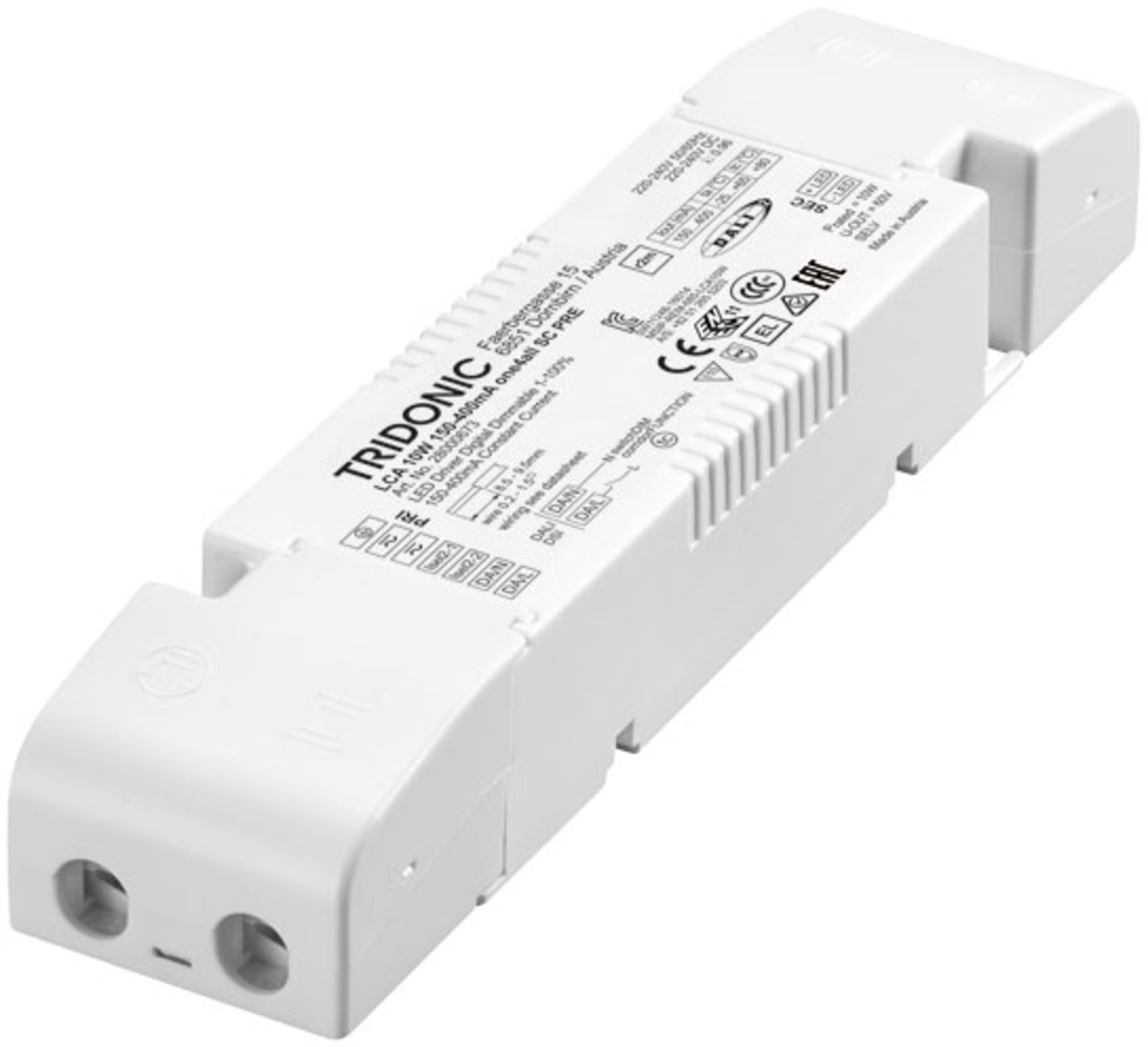

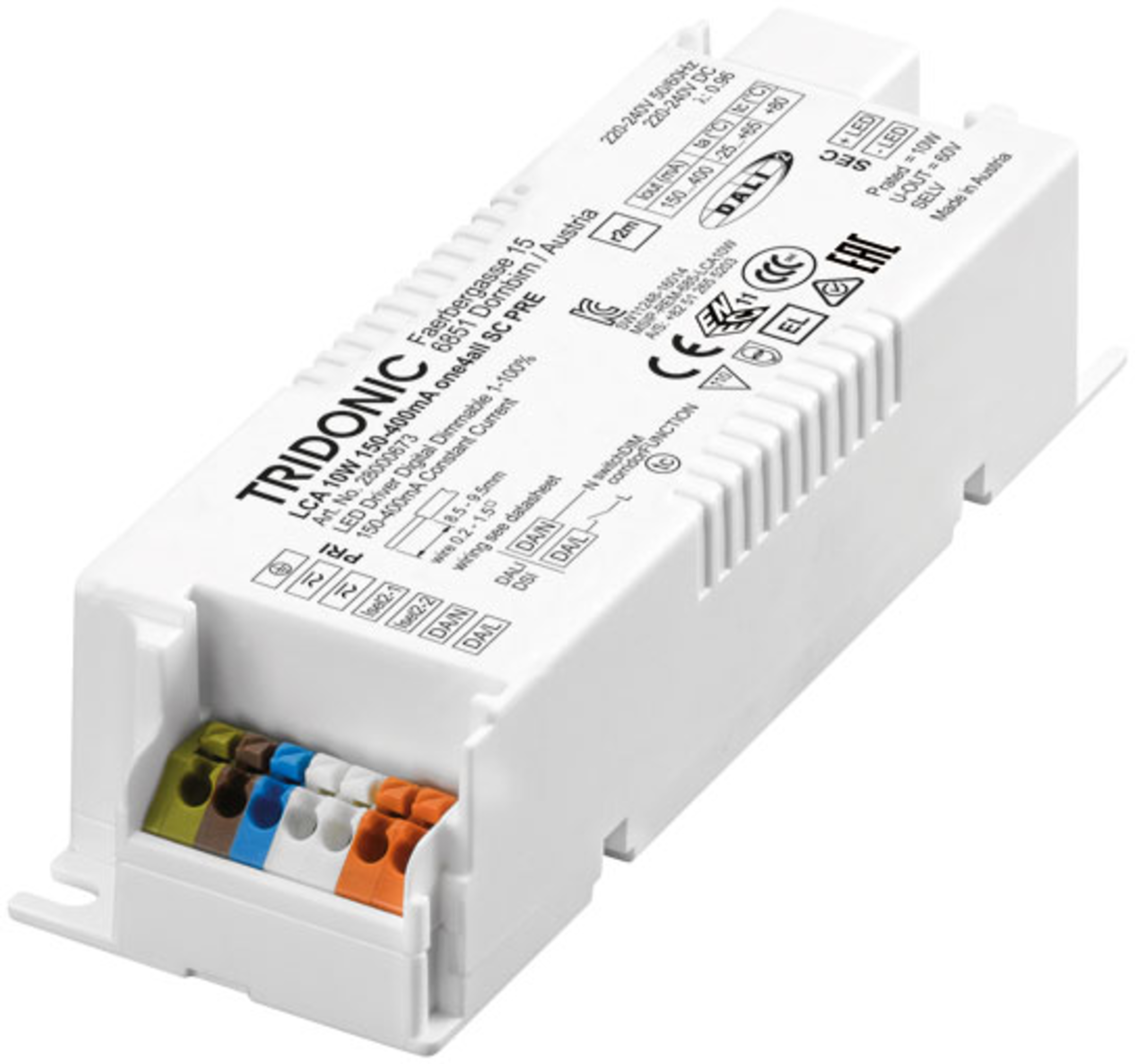

Tridonic LCA 10W 150–400mA one4all SC PR AC/DC LED power supply unit CC 10W 0,35A IP20 Dali-2 Push Dimming
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
11 Pcs. in stock
Planned delivery time
Ø 3 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Operating mode
- CC
- Output Power
- 10 W
- Output current
- 0.350 A
- Output Voltage Min.
- 15 V
- Output Voltage Max.
- 40 V
- Protection Class IP
- IP20
- Interfaces
- Dali-2
Push Dimming - RoHS-Conform
Specifications
Open all
Operating conditions
- Operating expectation
- 100,000 h
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 55 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 80 °C
Input
- Mains frequency min.
- 50 Hz
- Mains frequency max.
- 60 Hz
- Input voltage min. AC
- 198 V
- Input voltage max. AC
- 264 V
- Input voltage min. DC
- 176 V
- Input voltage max. DC
- 280 V
- Input current
- 0.06 A
- Efficiency
- 82 %
- Power consumption in networked standby mode (Pnet), less than
- 0.2 W
- Leakage current, max.
- 0.7 mA
- Inrush current, max.
- 16 A
- Max. number on B16 circuit breaker
- 38
- Max. number on C16 circuit breaker
- 64
- Power factor correction (PFC)
- Power factor
- 0.96
- Connection type, input
- Push-In Terminal
Output
- Number of outputs
- 1
- Output Power
- 10 W
- Output Voltage Min.
- 15 V
- Output Voltage Max.
- 40 V
- Selectable output current
- Selectable output currents (A)
- 0,15; 0,2; 0,25; 0,3; 0,35; 0,4
- Output current
- 0.350 A
- Output current tolerance
- -3.3 %
- Current ripple
- 5 %
- Overload protection
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection
- Connection type, output
- Push-In Terminal
Safety/Certifications
- Protection class
- II
- Protection Class IP
- IP20
- Approvals
- BIS
- CCC
- CE
- EAC
- ENEC
- KC
- RCM
- UKCA
- Standards (EMC)
- EN 55015
- Standards (safety)
- EN 61347-1
- EN 61347-2-13
Documents
IBU-ZGR-TRI-2410725-EU202528000673-ISUG1202000-DE.pdf
