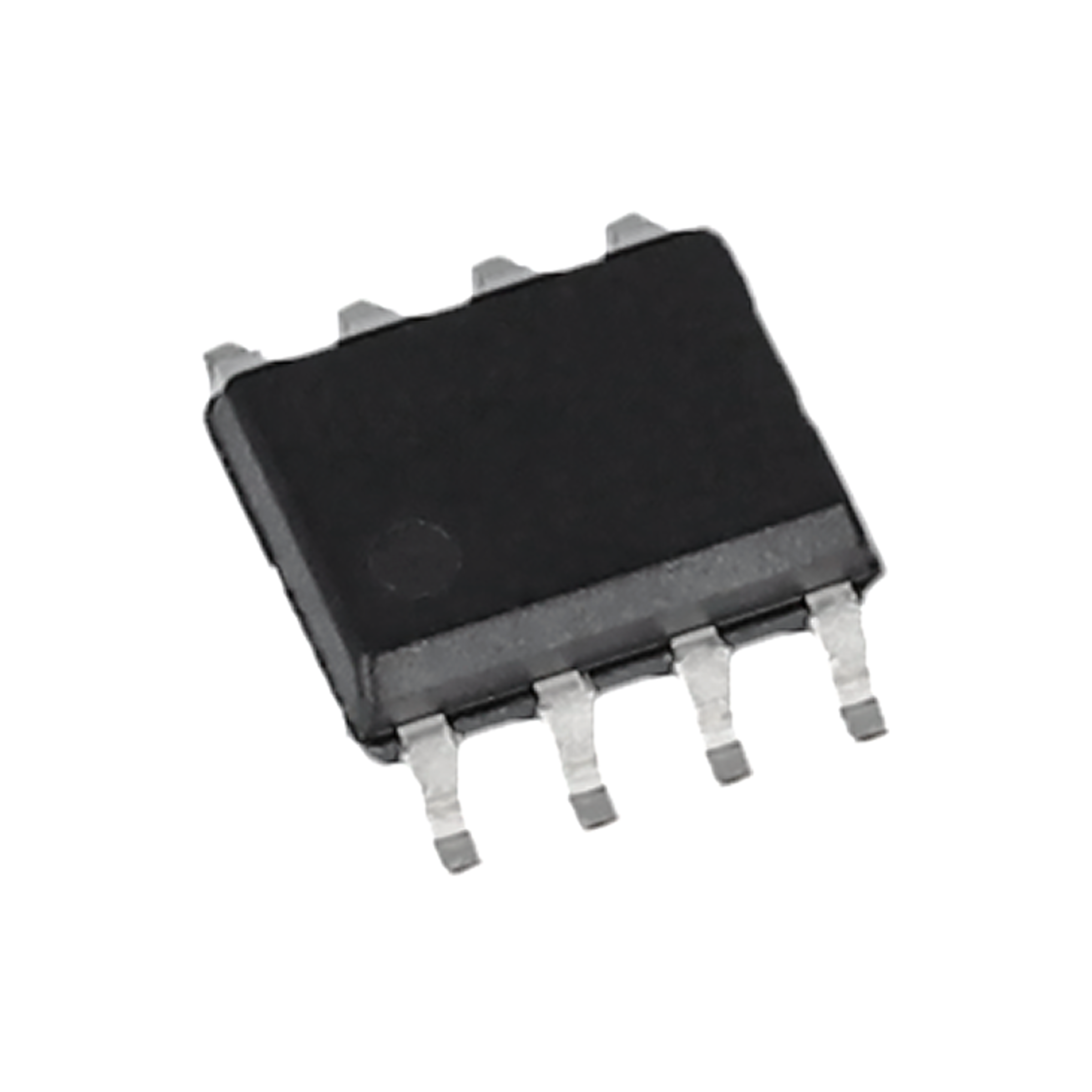

XTR115UA
Texas Instruments Transmitter IC Current Loop 4mA 20mA 1 SO-8
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
2.378 Pcs. in stock
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 07.12.2023
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 75 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Transmitter IC
- Supply Voltage Min.
- 7.5 V
- Supply Voltage Max.
- 36 V
- Output Current Min.
- 4 mA
- Output Current Max.
- 20 mA
- Number of Channels
- 1
- Manufacturer Package
- SO-8
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Electrical properties
- Number of Channels
- 1
- Supply Voltage Min.
- 7.5 V
- Supply Voltage Max.
- 36 V
- Output Current Min.
- 4 mA
- Output Current Max.
- 20 mA
