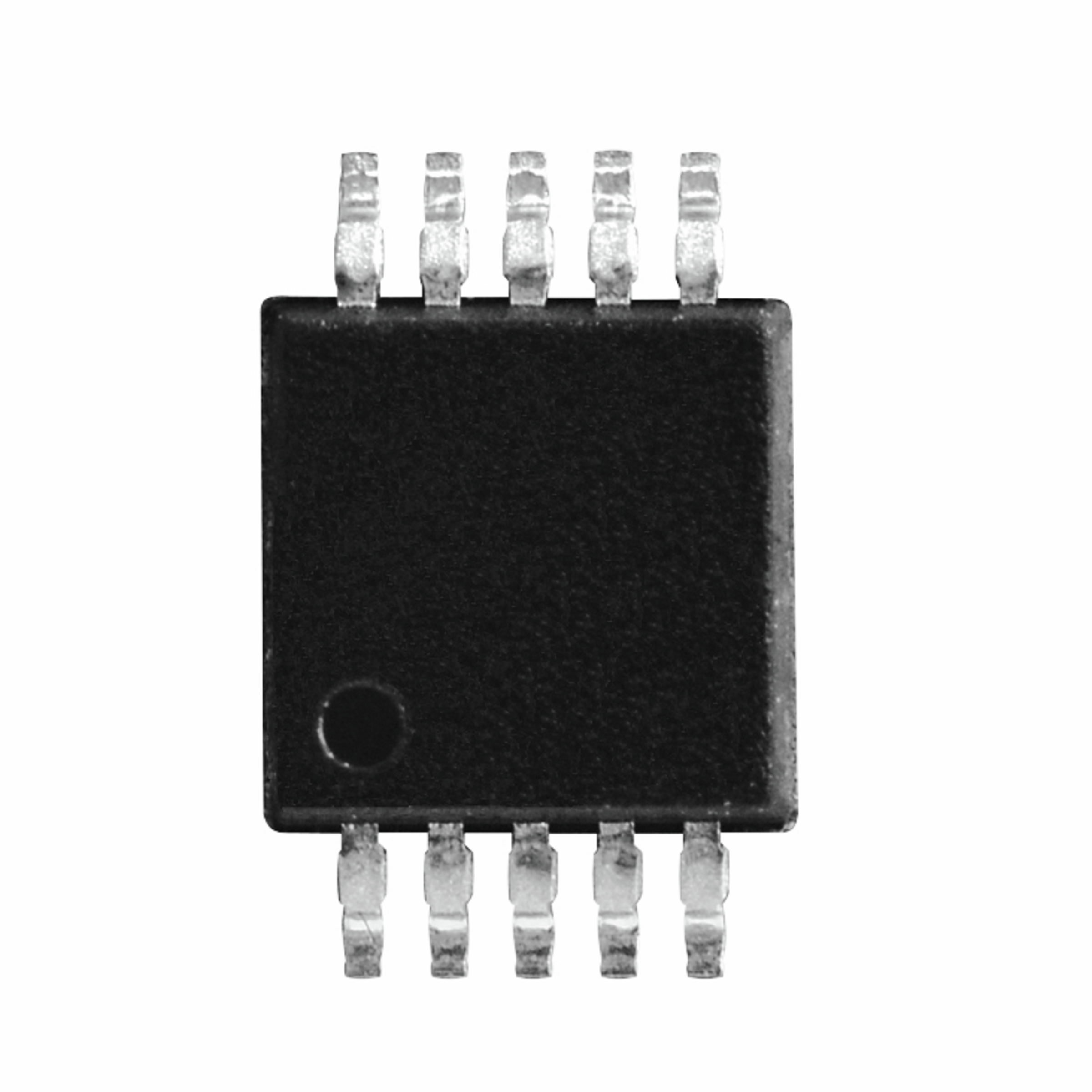

TPS54040DGQR
Texas Instruments Step-Down Switching Regulator 500 mA 42 V MSOP-10
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
6.770 Pcs. in stock
Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 2500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Step-Down Switching Regulator
- Supply Voltage Min.
- 3.5 V
- Supply Voltage Max.
- 42 V
- Output Voltage Min./Fixed
- 0.8 V
- Output Voltage Max.
- 42 V
- Output current
- 500 mA
500 mA - Number of Channels
- 1
- Type
- Buck
- Switching frequency
- 581 kHz
- Manufacturer Package
- MSOP-10
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 150 °C
Electrical properties
- Number of Channels
- 1
- Type
- Buck
- Supply Voltage Min.
- 3.5 V
- Output Current 1
- 500 mA
- Supply Voltage Max.
- 42 V
- Output current
- 500 mA
- 500 mA
- Switching frequency
- 581 kHz
- Output Voltage Min./Fixed
- 0.8 V
- Output Voltage Max.
- 42 V
- Output Type
- adjustable
