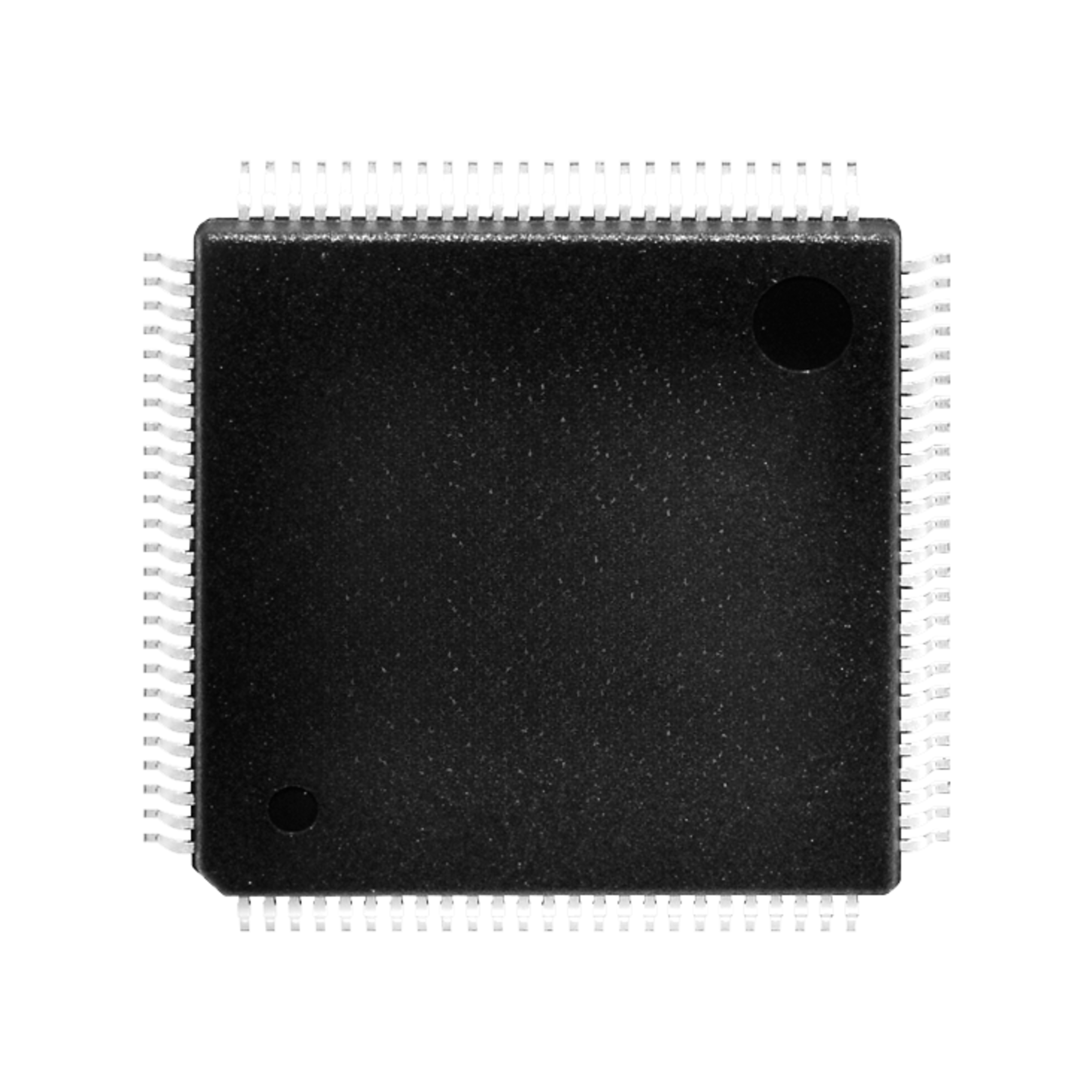

TMS320LF2406APZA
Texas Instruments Digital Signal Controller (DSC) 16bit 40MHz 64KB 5KB LQFP-100
Manufacturer Part No.
TMS320LF2406APZA
Schukat Part No.
TMS320LF2406APZA
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
428 Pcs. in stock
Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 90 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Digital Signal Controller (DSC)
- Supply Voltage Min.
- 3 V
- Supply Voltage Max.
- 3.6 V
- Databus Width
- 16 bit Bit
- CPU clock frequency Max.
- 40 MHz
- Program Memory Size
- 64 KB
- Memory Size
- 5 KB
- Manufacturer Package
- LQFP-100
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- Storage Temperature Min.
- -65 °C
- Storage Temperature Max.
- 150 °C
Electrical properties
- CPU clock frequency Max.
- 40 MHz
- Databus Width
- 16 bit Bit
- Supply Voltage Min.
- 3 V
- Supply Voltage Max.
- 3.6 V
- Program Memory Size
- 64 KB
- Memory Size
- 5 KB
