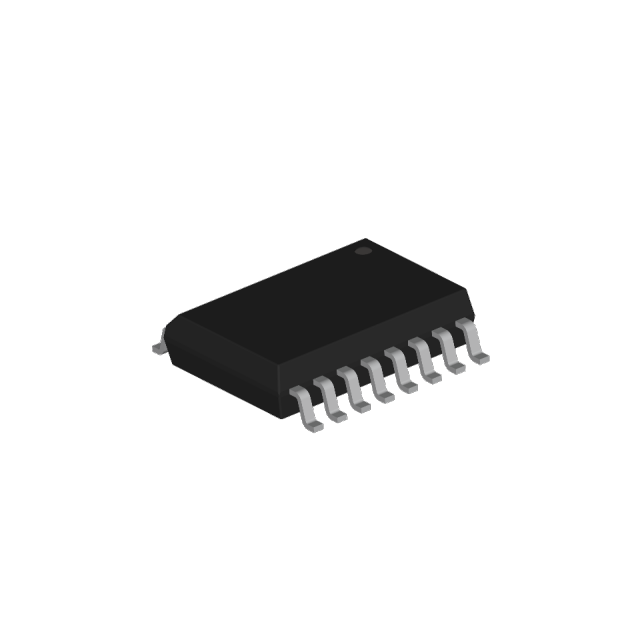

TL494CDG
Texas Instruments Switching Regulator 40 V SOIC-16
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Back Order
0 Pcs.
0 Pcs.
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 20.10.2023
Article discontinued
Data Sheet
ECAD Model
Prices
Manufacturer bundle 48 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 40 or multiple of 40)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Switching Regulator
- Supply Voltage Min.
- 7 V
- Supply Voltage Max.
- 40 V
- Output Voltage Min./Fixed
- 4.75 V
- Output Voltage Max.
- 5.25 V
- Number of Channels
- 1
- Switching frequency
- 300 kHz
- Manufacturer Package
- SOIC-16
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- 0 °C
- Operating Temperature Max.
- 70 °C
- Storage Temperature Min.
- -65 °C
- Storage Temperature Max.
- 150 °C
Electrical properties
- Number of Channels
- 1
- Supply Voltage Min.
- 7 V
- Supply Voltage Max.
- 40 V
- Switching frequency
- 300 kHz
- Output Voltage Min./Fixed
- 4.75 V
- Output Voltage Max.
- 5.25 V
