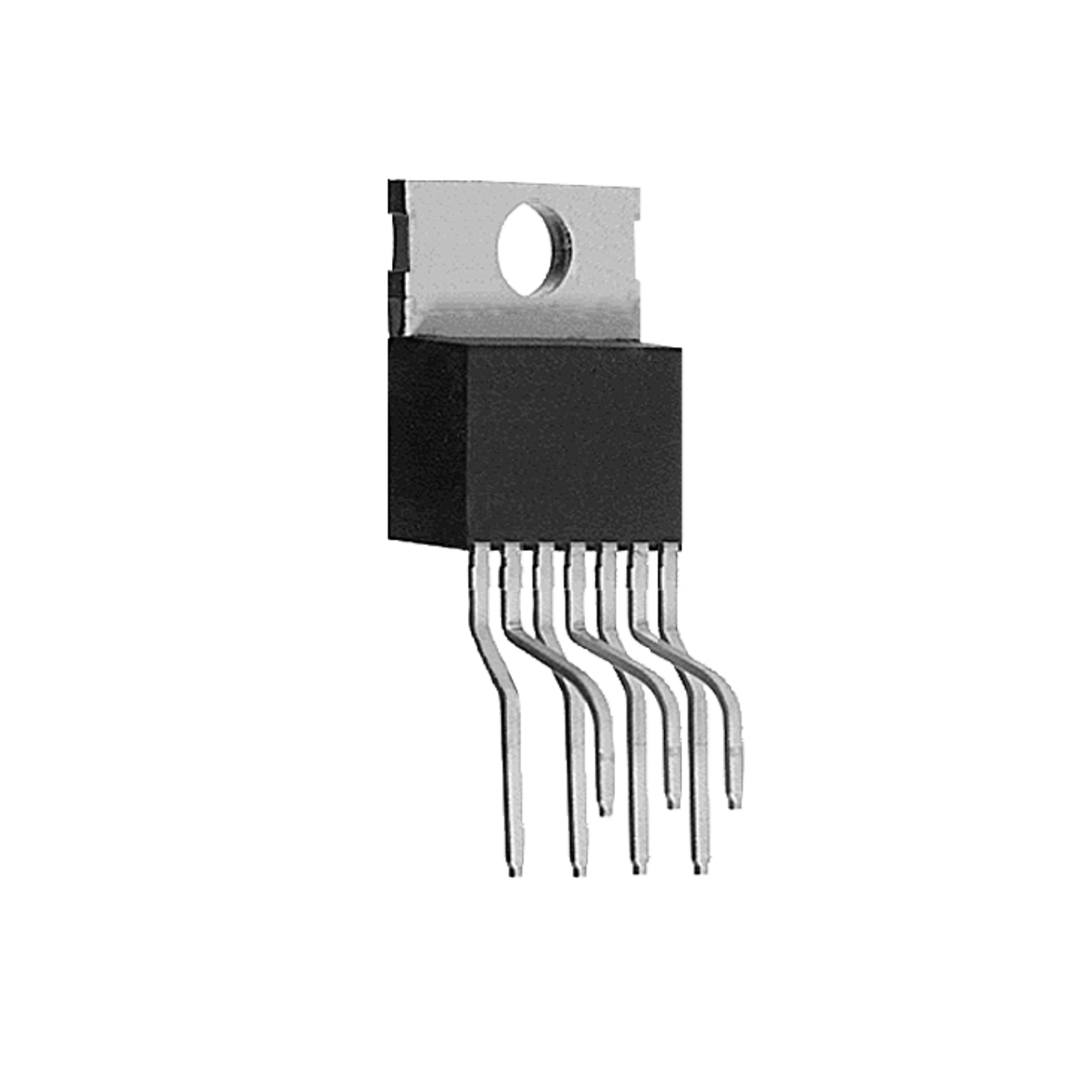

OPA547T
Texas Instruments THT Operational Amplifier 95dB 6V/µs TO-220
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
140 Pcs. in stock
Planned delivery time
Ø 81 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Operational Amplifier
- Supply Voltage Min.
- 8 V
- Supply Voltage Max.
- 60 V
- Number of Channels
- 1
- (CMRR) Common Mode Rejection Ratio
- 95 dB
- Slew Rate
- 6 V/µs
- Manufacturer Package
- TO-220
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Electrical properties
- Number of Channels
- 1
- Supply Voltage Min.
- 8 V
- Supply Voltage Max.
- 60 V
- Slew Rate
- 6 V/µs
- (CMRR) Common Mode Rejection Ratio
- 95 dB
- (GBWP) Gain Bandwidth Prod.
- 1 MHz
