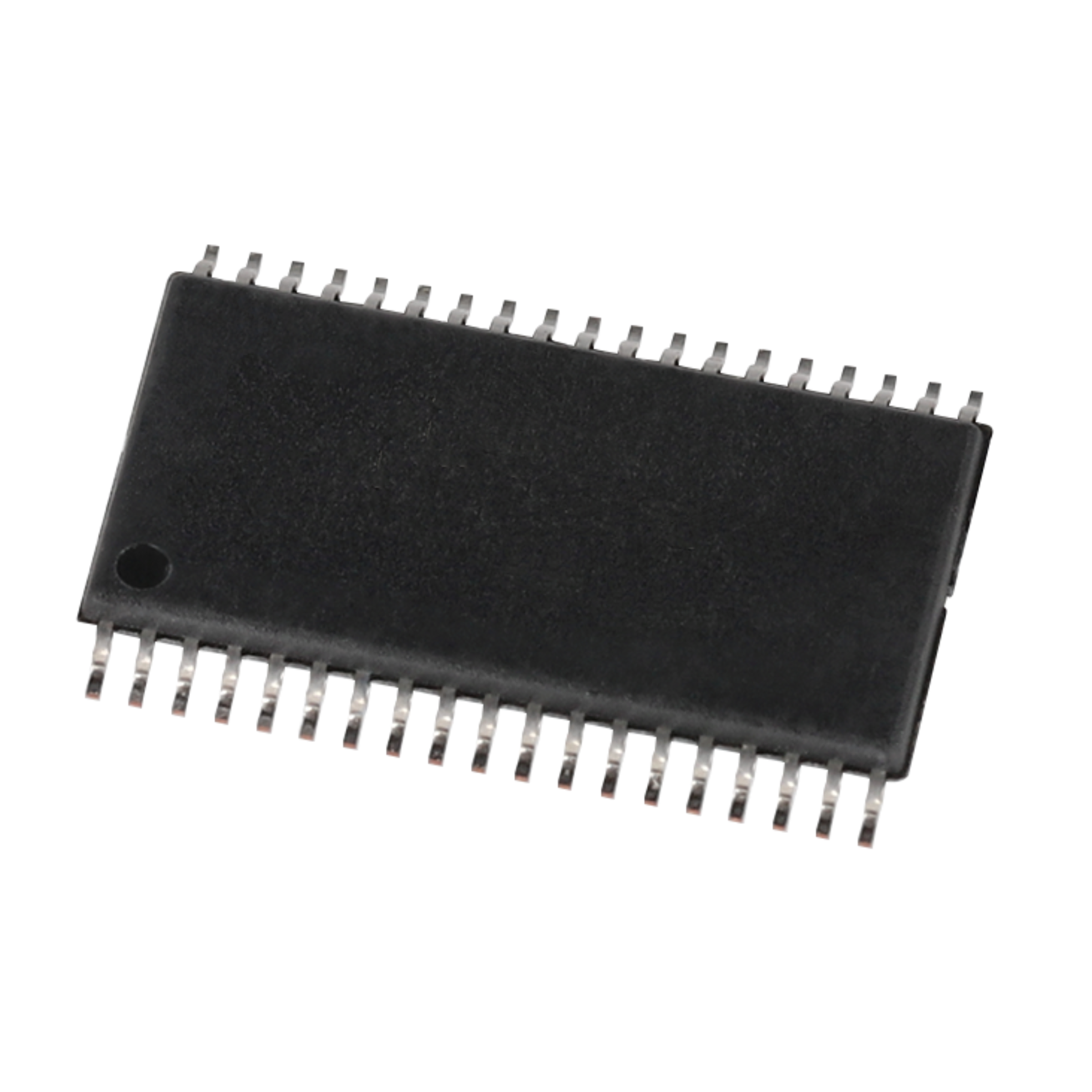

MSP430F2232IDAR
Texas Instruments 16-Bit Microcontroller 8KB 32I/O 16MHz 0,512KB MSP430 TSSOP-38
Manufacturer Part No.
MSP430F2232IDAR
Schukat Part No.
MSP430F2232IDAR
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.910 Pcs. in stock
Planned delivery time
Ø 67 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 2000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- 16-Bit Microcontroller
- Supply Voltage Min.
- 1.8 V
- Supply Voltage Max.
- 3.6 V
- CPU clock frequency Max.
- 16 MHz
- CPU Architecture
- 16-Bit RISC-Architecture
- CPU Core
- MSP430
- Program Memory Size
- 8 KB
- Memory Size
- 0.512 KB
- EEPROM
- 0 Byte
- Number of I/O Pins
- 32 I/O
- Manufacturer Package
- TSSOP-38
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Electrical properties
- CPU Architecture
- 16-Bit RISC-Architecture
- CPU Core
- MSP430
- CPU clock frequency Max.
- 16 MHz
- Databus Width
- 16 bit Bit
- Supply Voltage Min.
- 1.8 V
- Supply Voltage Max.
- 3.6 V
- Real-Time Clock
- Number of ADC Channels
- 8
- ADC Resolution
- 10 bit Bit
- Program Memory Size
- 8 KB
- Memory Size
- 0.512 KB
- Number of I/O Pins
- 32 I/O
- EEPROM
- 0 Byte
