CD4066BM

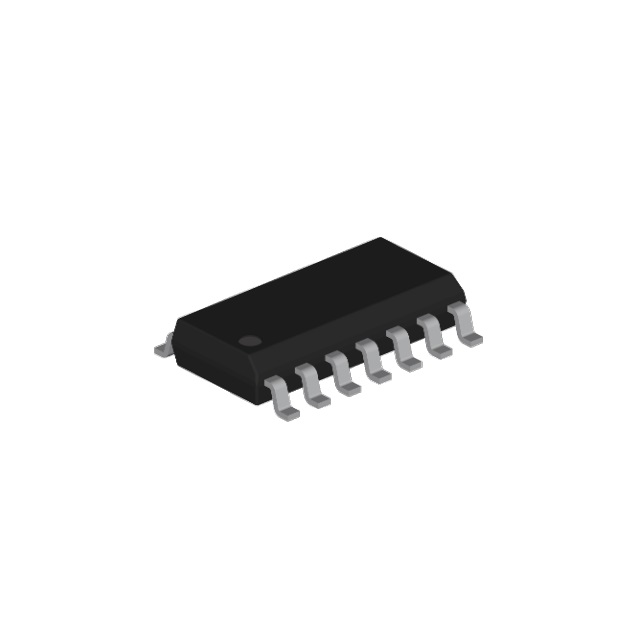

Texas Instruments SMD/SMT Bilateral Switch IC 4 SO-14
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.000 Pcs. in stock
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 22.06.2024
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Bilateral Switch IC
- Supply Voltage Min.
- 3 V
- Supply Voltage Max.
- 18 V
- Number of Channels
- 4
- (RON) On Widerstand typ.
- 125 Ohm
- (RON) On Widerstand max.
- 240 Ohm
240 Ohm - Manufacturer Package
- SO-14
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 125 °C
- Storage Temperature Min.
- -65 °C
- Storage Temperature Max.
- 150 °C
Electrical properties
- (RON) On Widerstand typ.
- 125 Ohm
- (RON) On Widerstand max.
- 240 Ohm
- 240 Ohm
- Number of Channels
- 4
- Supply Voltage Min.
- 3 V
- Supply Voltage Max.
- 18 V
