Results (528)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Type | Product Family | Design | Actuation | Alignment | Number of poles | Pitch | Contact Material Input | Contact Surface Input | Housing material | Colour | Class of Inflammability | Connector Contact | Connector Material | Conductor cross-section (AWG), min. | Conductor cross-section (AWG), max. | Nominal cross-section, solid, min. | Nominal cross-section, solid, max. | Nominal cross-section finely stranded, min. | Nominal cross-section finely stranded, max. | Dimension: Width | Dimension: Height | Dimension: Depth | Rated current | Rated voltage AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
51 |  | Manufacturers Part No. AK4101/2KD-5.0-KIESELGRAU(AK4101/2) PTR HARTMANN Terminal block AK4101 horizontal 2 Pole Pitch5mm gray THT 11,6mm 19,1mm 20AWG 14AWG 17,5A 250VAC | Customer Part No. Customer Project No. | 1.550 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Terminal block | AK4101/..KD-5.0-PEBBLE GREY | Push-In | With actuating lever | horizontal | 2 | 5.0 mm | Edelstahl | Polyamide (PA) 66 | gray | UL 94 V-0 | THT | Kupferlegierung | 20.0 AWG | 14.0 AWG | 0.08 mm² | 2.5 mm² | 0.5 mm² | 1.5 mm² | 11.6 mm | 19.1 mm | 12.5 mm | 17.5 A | 250.0 V AC | ||||||
52 | | Manufacturers Part No. AK4101/3KD-5.0-KIESELGRAU(AK4101/3) PTR HARTMANN Terminal block AK4101 horizontal 3 Pole Pitch5mm gray THT 16,6mm 19,1mm 20AWG 14AWG 17,5A 250VAC | Customer Part No. Customer Project No. | 400 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Terminal block | AK4101/..KD-5.0-PEBBLE GREY | Push-In | With actuating lever | horizontal | 3 | 5.0 mm | Edelstahl | Polyamide (PA) 66 | gray | UL 94 V-0 | THT | Kupferlegierung | 20.0 AWG | 14.0 AWG | 0.08 mm² | 2.5 mm² | 0.5 mm² | 1.5 mm² | 16.6 mm | 19.1 mm | 12.5 mm | 17.5 A | 250.0 V AC | ||||||
53 | | Manufacturers Part No. AK4101/4KD-5.0-KIESELGRAU(AK4101/4) PTR HARTMANN Terminal block AK4101 horizontal 4 Pole Pitch5mm gray THT 21,6mm 19,1mm 20AWG 14AWG 17,5A 250VAC | Customer Part No. Customer Project No. | 680 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Terminal block | AK4101/..KD-5.0-PEBBLE GREY | Push-In | With actuating lever | horizontal | 4 | 5.0 mm | Edelstahl | Polyamide (PA) 66 | gray | UL 94 V-0 | THT | Kupferlegierung | 20.0 AWG | 14.0 AWG | 0.08 mm² | 2.5 mm² | 0.5 mm² | 1.5 mm² | 21.6 mm | 19.1 mm | 12.5 mm | 17.5 A | 250.0 V AC | ||||||
54 | | Manufacturers Part No. AK4101/5KD-5.0-KIESELGRAU(AK4101/5) PTR HARTMANN Terminal block AK4101 horizontal 5 Pole Pitch5mm gray THT 26,6mm 19,1mm 20AWG 14AWG 17,5A 250VAC | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 9 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Terminal block | AK4101/..KD-5.0-PEBBLE GREY | Push-In | With actuating lever | horizontal | 5 | 5.0 mm | Edelstahl | Polyamide (PA) 66 | gray | UL 94 V-0 | THT | Kupferlegierung | 20.0 AWG | 14.0 AWG | 0.08 mm² | 2.5 mm² | 0.5 mm² | 1.5 mm² | 26.6 mm | 19.1 mm | 12.5 mm | 17.5 A | 250.0 V AC | ||||||
55 | | Manufacturers Part No. AK4200/2-5.0-V-BAGY(AK4200/2V) PTR HARTMANN Terminal block AK4200 vertical 2 Pole Pitch5mm gray THT 11,4mm 16,9mm 24AWG 12AWG 24A 250VAC | Customer Part No. Customer Project No. | 2.310 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Terminal block | AK4200/..-5.0-V-baGY | Push-In | without actuating lever | vertical | 2 | 5.0 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | THT | 24.0 AWG | 12.0 AWG | 0.2 mm² | 4.0 mm² | 0.2 mm² | 2.5 mm² | 11.4 mm | 16.9 mm | 13.5 mm | 24.0 A | 250.0 V AC | ||||||||
56 | | Manufacturers Part No. AK4200/3-5.0-V-BAGY(AK4200/3V) PTR HARTMANN Terminal block AK4200 vertical 3 Pole Pitch5mm gray THT 16,4mm 16,9mm 24AWG 12AWG 24A 250VAC | Customer Part No. Customer Project No. | 420 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Terminal block | AK4200/..-5.0-V-baGY | Push-In | without actuating lever | vertical | 3 | 5.0 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | THT | 24.0 AWG | 12.0 AWG | 0.2 mm² | 4.0 mm² | 0.2 mm² | 2.5 mm² | 16.4 mm | 16.9 mm | 13.5 mm | 24.0 A | 250.0 V AC | ||||||||
57 | | Manufacturers Part No. AK4200/4-5.0-V-BAGY(AK4200/4V) PTR HARTMANN Terminal block AK4200 vertical 4 Pole Pitch5mm gray THT 21,4mm 16,9mm 24AWG 12AWG 24A 250VAC | Customer Part No. Customer Project No. | 1.560 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Terminal block | AK4200/..-5.0-V-baGY | Push-In | without actuating lever | vertical | 4 | 5.0 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | THT | 24.0 AWG | 12.0 AWG | 0.2 mm² | 4.0 mm² | 0.2 mm² | 2.5 mm² | 21.4 mm | 16.9 mm | 13.5 mm | 24.0 A | 250.0 V AC | ||||||||
58 | | Manufacturers Part No. AK4200/5-5.0-V-BAGY(AK4200/5V) PTR HARTMANN Terminal block AK4200 vertical 5 Pole Pitch5mm gray THT 26,4mm 16,9mm 24AWG 12AWG 24A 250VAC | Customer Part No. Customer Project No. | 300 Pcs. Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Terminal block | AK4200/..-5.0-V-baGY | Push-In | without actuating lever | vertical | 5 | 5.0 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | THT | 24.0 AWG | 12.0 AWG | 0.2 mm² | 4.0 mm² | 0.2 mm² | 2.5 mm² | 26.4 mm | 16.9 mm | 13.5 mm | 24.0 A | 250.0 V AC | ||||||||
59 | | Manufacturers Part No. AK4200/6-5.0-V-BAGY(AK4200/6V) PTR HARTMANN Terminal block AK4200 vertical 6 Pole Pitch5mm gray THT 31,4mm 16,9mm 24AWG 12AWG 24A 250VAC | Customer Part No. Customer Project No. | 5.330 Pcs. Planned Delivery Time Ø 3 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Terminal block | AK4200/..-5.0-V-baGY | Push-In | without actuating lever | vertical | 6 | 5.0 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | THT | 24.0 AWG | 12.0 AWG | 0.2 mm² | 4.0 mm² | 0.2 mm² | 2.5 mm² | 31.4 mm | 16.9 mm | 13.5 mm | 24.0 A | 250.0 V AC | ||||||||
60 | | Manufacturers Part No. AK4200/2-5.0-H-BAGY(AK4200/2H) PTR HARTMANN Terminal block AK4200 horizontal 2 Pole Pitch5mm gray THT 11,4mm 16mm 24AWG 12AWG 24A 250VAC | Customer Part No. Customer Project No. | 10 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Terminal block | AK4200/..-5.0-H-baGY | Push-In | without actuating lever | horizontal | 2 | 5.0 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | THT | 24.0 AWG | 12.0 AWG | 0.2 mm² | 4.0 mm² | 0.2 mm² | 2.5 mm² | 11.4 mm | 16.0 mm | 14.4 mm | 24.0 A | 250.0 V AC | ||||||||
61 | | Manufacturers Part No. AK4200/3-5.0-H-BAGY(AK4200/3H) PTR HARTMANN Terminal block AK4200 horizontal 3 Pole Pitch5mm gray THT 16,4mm 16mm 24AWG 12AWG 24A 250VAC | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 50 or mul. of 50) | PTR HARTMANN | Terminal block | AK4200/..-5.0-H-baGY | Push-In | without actuating lever | horizontal | 3 | 5.0 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | THT | 24.0 AWG | 12.0 AWG | 0.2 mm² | 4.0 mm² | 0.2 mm² | 2.5 mm² | 16.4 mm | 16.0 mm | 14.4 mm | 24.0 A | 250.0 V AC | ||||||||
62 | | Manufacturers Part No. AK4200/4-5.0-H-BAGY(AK4200/4H) PTR HARTMANN Terminal block AK4200 horizontal 4 Pole Pitch5mm gray THT 21,4mm 16mm 24AWG 12AWG 24A 250VAC | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 50 or mul. of 50) | PTR HARTMANN | Terminal block | AK4200/..-5.0-H-baGY | Push-In | without actuating lever | horizontal | 4 | 5.0 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | THT | 24.0 AWG | 12.0 AWG | 0.2 mm² | 4.0 mm² | 0.2 mm² | 2.5 mm² | 21.4 mm | 16.0 mm | 14.4 mm | 24.0 A | 250.0 V AC | ||||||||
63 | | Manufacturers Part No. AK4200/5-5.0-H-BAGY(AK4200/5H) PTR HARTMANN Terminal block AK4200 horizontal 5 Pole Pitch5mm gray THT 26,4mm 16mm 24AWG 12AWG 24A 250VAC | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 50 or mul. of 50) | PTR HARTMANN | Terminal block | AK4200/..-5.0-H-baGY | Push-In | without actuating lever | horizontal | 5 | 5.0 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | THT | 24.0 AWG | 12.0 AWG | 0.2 mm² | 4.0 mm² | 0.2 mm² | 2.5 mm² | 26.4 mm | 16.0 mm | 14.4 mm | 24.0 A | 250.0 V AC | ||||||||
64 | | Manufacturers Part No. AK4200/6-5.0-H-BAGY(AK4200/6H) PTR HARTMANN Terminal block AK4200 horizontal 6 Pole Pitch5mm gray THT 31,4mm 16mm 24AWG 12AWG 24A 250VAC | Customer Part No. Customer Project No. | 1.400 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Terminal block | AK4200/..-5.0-H-baGY | Push-In | without actuating lever | horizontal | 6 | 5.0 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | THT | 24.0 AWG | 12.0 AWG | 0.2 mm² | 4.0 mm² | 0.2 mm² | 2.5 mm² | 31.4 mm | 16.0 mm | 14.4 mm | 24.0 A | 250.0 V AC | ||||||||

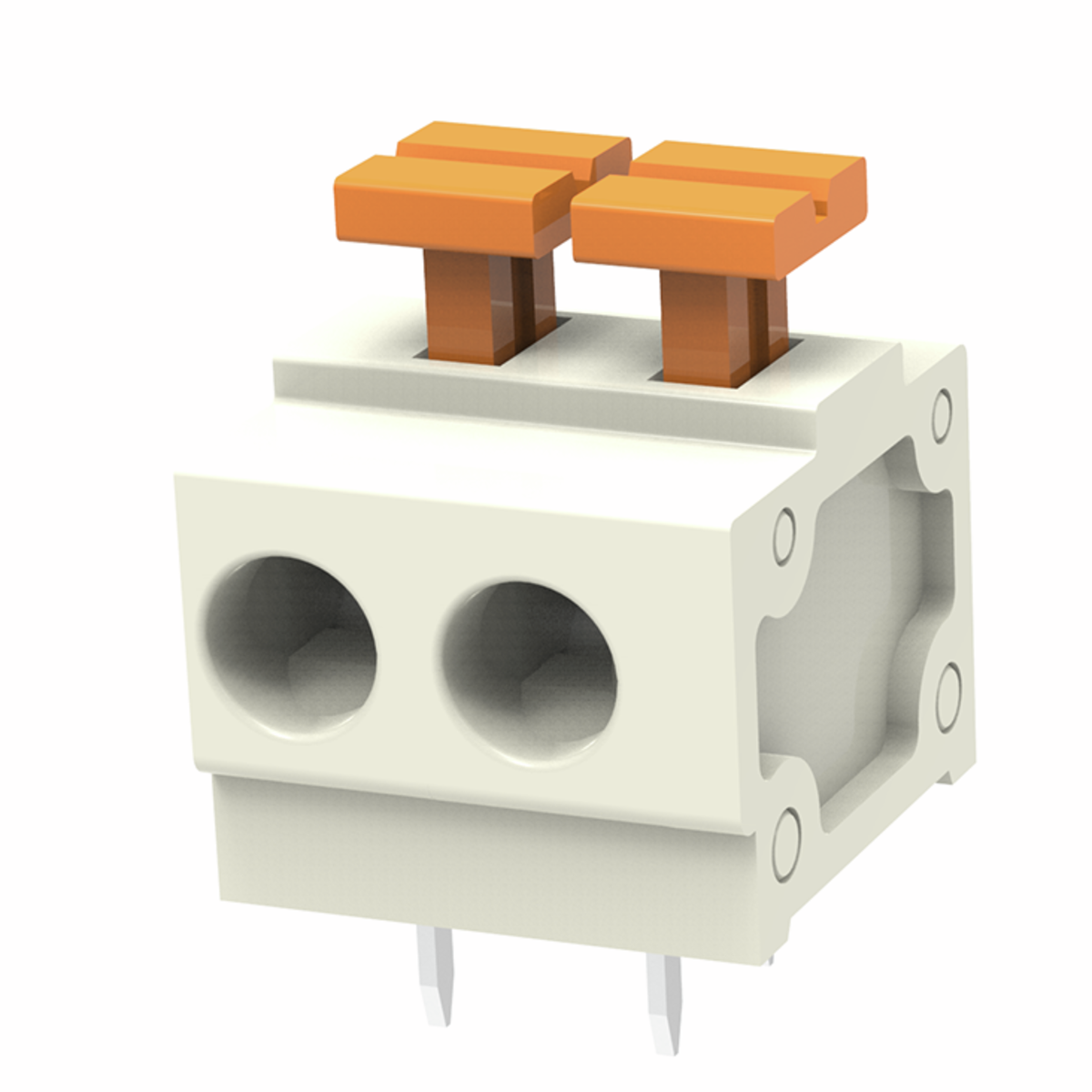

65 | | Manufacturers Part No. DG234-5.0-02P-11-00A(H)(DG234-5.0-02P-11) DEGSON Terminal block DG234-5.0 vertical 2 Pole Pitch5mm white THT 11,5mm 17,5mm 30AWG 16AWG 10A 250VAC | Customer Part No. Customer Project No. | 310 Pcs. Available (from stock) | (at least 10 or mul. of 10) | DEGSON | Terminal block | Push-In | With actuating lever | vertical | 2 | 5.0 mm | Polyamide (PA) 66 | white | UL 94 V-0 | THT | 30.0 AWG | 16.0 AWG | 0.5 mm² | 1.5 mm² | 0.5 mm² | 1.5 mm² | 11.5 mm | 17.5 mm | 12.5 mm | 10.0 A | 250.0 V AC | |||||||||
66 | | Manufacturers Part No. DG234-5.0-04P-11-00A(H)(DG234-5.0-04P-11) DEGSON Terminal block DG234-5.0 vertical 4 Pole Pitch5mm white THT 21,5mm 17,5mm 30AWG 16AWG 10A 250VAC | Customer Part No. Customer Project No. | 1.060 Pcs. Available (from stock) | (at least 40 or mul. of 40) | DEGSON | Terminal block | Push-In | With actuating lever | vertical | 4 | 5.0 mm | Polyamide (PA) 66 | white | UL 94 V-0 | THT | 30.0 AWG | 16.0 AWG | 0.5 mm² | 1.5 mm² | 0.5 mm² | 1.5 mm² | 21.5 mm | 17.5 mm | 12.5 mm | 10.0 A | 250.0 V AC | |||||||||
67 | | Manufacturers Part No. AKZ4301/2KD-5.08-BASALTGRAU(AKZ4301/2KD) PTR HARTMANN Terminal block AKZ4301 45° 2 Pole Pitch5,08mm gray THT 10,16mm 16,5mm 22AWG 16AWG 16A 250VAC | Customer Part No. Customer Project No. | 330 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Terminal block | AKZ4301/..KD-5.08-BASALTGREY | Push-In | With actuating lever | 45° | 2 | 5.08 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | THT | 22.0 AWG | 16.0 AWG | 0.08 mm² | 1.5 mm² | 0.2 mm² | 1.5 mm² | 10.16 mm | 16.5 mm | 16.2 mm | 16.0 A | 250.0 V AC | ||||||||
68 | | Manufacturers Part No. AKZ4301/3KD-5.08-BASALTGRAU(AKZ4301/3KD) PTR HARTMANN Terminal block AKZ4301 45° 3 Pole Pitch5,08mm gray THT 15,24mm 16,5mm 22AWG 16AWG 16A 250VAC | Customer Part No. Customer Project No. | 1.970 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Terminal block | AKZ4301/..KD-5.08-BASALTGREY | Push-In | With actuating lever | 45° | 3 | 5.08 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | THT | 22.0 AWG | 16.0 AWG | 0.08 mm² | 1.5 mm² | 0.2 mm² | 1.5 mm² | 15.24 mm | 16.5 mm | 16.2 mm | 16.0 A | 250.0 V AC | ||||||||
69 | | Manufacturers Part No. AKZ4301/4KD-5.08-BASALTGRAU(AKZ4301/4KD) PTR HARTMANN Terminal block AKZ4301 45° 4 Pole Pitch5,08mm gray THT 20,32mm 16,5mm 22AWG 16AWG 16A 250VAC TOP | Customer Part No. Customer Project No. | 1.250 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Terminal block | AKZ4301/..KD-5.08-BASALTGREY | Push-In | With actuating lever | 45° | 4 | 5.08 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | THT | 22.0 AWG | 16.0 AWG | 0.08 mm² | 1.5 mm² | 0.2 mm² | 1.5 mm² | 20.32 mm | 16.5 mm | 16.2 mm | 16.0 A | 250.0 V AC | ||||||||
70 | | Manufacturers Part No. AKZ4301/5KD-5.08-BASALTGRAU(AKZ4301/5KD) PTR HARTMANN Terminal block AKZ4301 45° 5 Pole Pitch5,08mm gray THT 25,4mm 16,5mm 22AWG 16AWG 16A 250VAC | Customer Part No. Customer Project No. | 180 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Terminal block | AKZ4301/..KD-5.08-BASALTGREY | Push-In | With actuating lever | 45° | 5 | 5.08 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | THT | 22.0 AWG | 16.0 AWG | 0.08 mm² | 1.5 mm² | 0.2 mm² | 1.5 mm² | 25.4 mm | 16.5 mm | 16.2 mm | 16.0 A | 250.0 V AC | ||||||||
71 | | Manufacturers Part No. AKZ4301/6KD-5.08-BASALTGRAU(AKZ4301/6KD) PTR HARTMANN Terminal block AKZ4301 45° 6 Pole Pitch5,08mm gray THT 30,48mm 16,5mm 22AWG 16AWG 16A 250VAC | Customer Part No. Customer Project No. | 390 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Terminal block | AKZ4301/..KD-5.08-BASALTGREY | Push-In | With actuating lever | 45° | 6 | 5.08 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | THT | 22.0 AWG | 16.0 AWG | 0.08 mm² | 1.5 mm² | 0.2 mm² | 1.5 mm² | 30.48 mm | 16.5 mm | 16.2 mm | 16.0 A | 250.0 V AC | ||||||||
72 | | Manufacturers Part No. AK3750/2-5.0-GRÜN(AK3750/2-GN) PTR HARTMANN Terminal block AK3750 45° 2 Pole Pitch5mm green THT 11,7mm 29,7mm 28AWG 14AWG 12A 250VAC | Customer Part No. Customer Project No. | 100 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Terminal block | AK3750/..-5.0-GREEN | Spring force principle | without actuating lever | 45° | 2 | 5.0 mm | Polyamide (PA) 66 | green | UL 94 V-0 | THT | 28.0 AWG | 14.0 AWG | 0.08 mm² | 2.5 mm² | 0.14 mm² | 2.5 mm² | 11.7 mm | 29.7 mm | 21.0 mm | 12.0 A | 250.0 V AC | ||||||||
73 | | Manufacturers Part No. AK3750/3-5.0-GRÜN(AK3750/3-GN) PTR HARTMANN Terminal block AK3750 45° 3 Pole Pitch5mm green THT 16,7mm 29,7mm 28AWG 14AWG 12A 250VAC | Customer Part No. Customer Project No. | 100 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Terminal block | AK3750/..-5.0-GREEN | Spring force principle | without actuating lever | 45° | 3 | 5.0 mm | Polyamide (PA) 66 | green | UL 94 V-0 | THT | 28.0 AWG | 14.0 AWG | 0.08 mm² | 2.5 mm² | 0.14 mm² | 2.5 mm² | 16.7 mm | 29.7 mm | 21.0 mm | 12.0 A | 250.0 V AC | ||||||||
74 | | Manufacturers Part No. AK3750/4-5.0-GRÜN(AK3750/4-GN) PTR HARTMANN Terminal block AK3750 45° 4 Pole Pitch5mm green THT 21,7mm 29,7mm 28AWG 14AWG 12A 250VAC | Customer Part No. Customer Project No. | 30 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Terminal block | AK3750/..-5.0-GREEN | Spring force principle | without actuating lever | 45° | 4 | 5.0 mm | Polyamide (PA) 66 | green | UL 94 V-0 | THT | 28.0 AWG | 14.0 AWG | 0.08 mm² | 2.5 mm² | 0.14 mm² | 2.5 mm² | 21.7 mm | 29.7 mm | 21.0 mm | 12.0 A | 250.0 V AC | ||||||||
75 | | Manufacturers Part No. AK3750/5-5.0-GRÜN(AK3750/5-GN) PTR HARTMANN Terminal block AK3750 45° 5 Pole Pitch5mm green THT 26,7mm 29,7mm 28AWG 14AWG 12A 250VAC | Customer Part No. Customer Project No. | 50 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Terminal block | AK3750/..-5.0-GREEN | Spring force principle | without actuating lever | 45° | 5 | 5.0 mm | Polyamide (PA) 66 | green | UL 94 V-0 | THT | 28.0 AWG | 14.0 AWG | 0.08 mm² | 2.5 mm² | 0.14 mm² | 2.5 mm² | 26.7 mm | 29.7 mm | 21.0 mm | 12.0 A | 250.0 V AC |
