SH150C-3.00-53

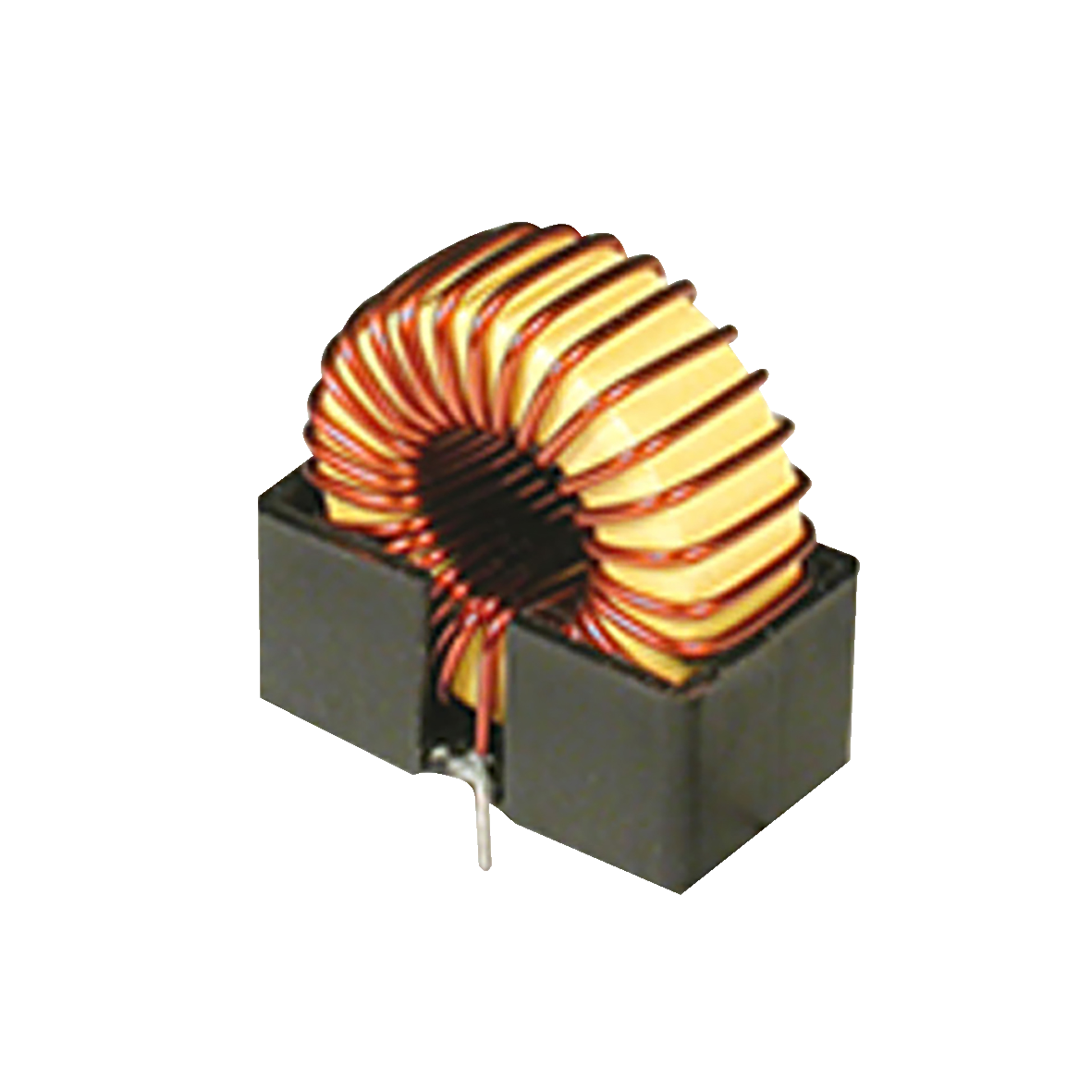

Talema Inductors for switching regulators from NSC SH150 3A 53µH -20-20%
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
605 Pcs.
605 Pcs.
Planned delivery time
Ø 20 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 605 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 605 or multiple of 605)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Inductance
- 53 µH
- Inductance tolerance
- -20 %
- Nominal resistance
- 0,08 Ohm
- Storage energy
- 239 µJ
- Rated current
- 3 A
- Dimension: Length
- 21 mm
- Dimension: Width
- 11.4 mm
- Dimension: Height
- 23.8 mm
- RoHS-Conform
Specifications
Open all

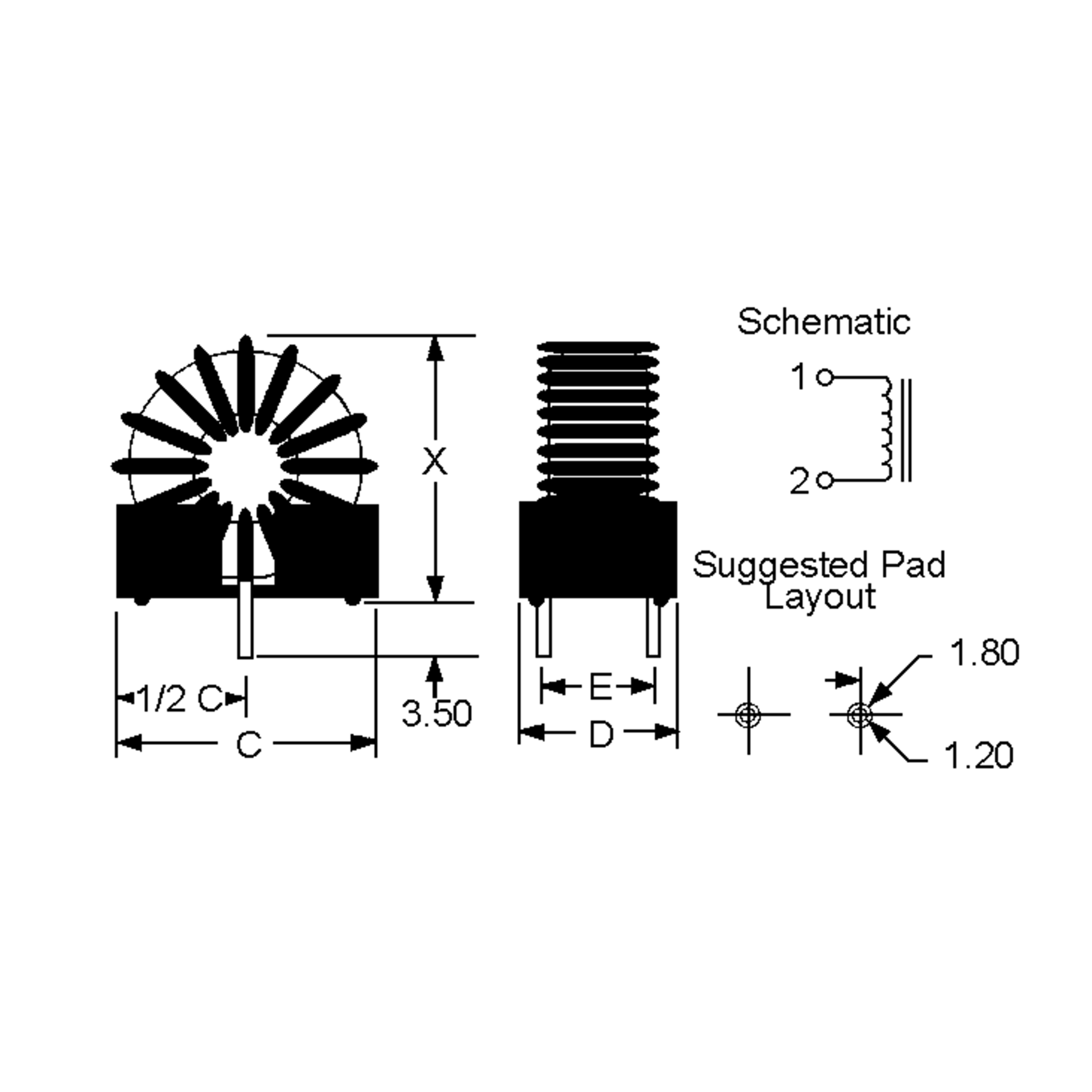

Dimensions and weights
- Diameter
- 21 mm
- Dimension: Length
- 21 mm
- Dimension: Width
- 11.4 mm
- Dimension: Height
- 23.8 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 120 °C
Technical features
- Inductance
- 53 µH
- Inductance tolerance
- -20 %
- Nominal resistance
- 0,08 Ohm
- Rated current
- 3 A
- Storage energy
- 239 µJ
