LCP5-0,54-680

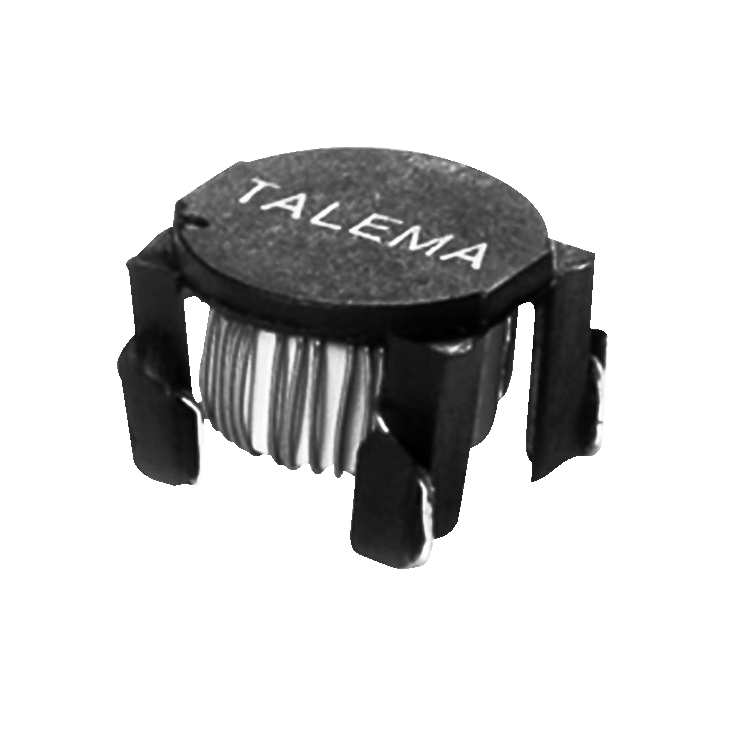

Talema Inductors SMD throttle LCP 0,54A 680µH -15-15% 12mm 10,2mm 9,1mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
300 Pcs.
300 Pcs.
Planned delivery time
Ø 99 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 300 or multiple of 300)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Kind
- throttle
- Inductance
- 680 µH
- Inductance tolerance
- -15 %
- Nominal resistance
- 934 mOhm
- Storage energy
- 73.2 µJ
- Rated current
- 0.54 A
- Housing
- SMD
- Dimension: Length
- 12 mm
- Dimension: Width
- 10.2 mm
- Dimension: Height
- 9.1 mm
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 12 mm
- Dimension: Width
- 10.2 mm
- Dimension: Height
- 9.1 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 125 °C
Technical features
- Inductance
- 680 µH
- Inductance tolerance
- -15 %
- Nominal resistance
- 934 mOhm
- Rated current
- 0.54 A
- Storage energy
- 73.2 µJ
