DPO-7,5-47

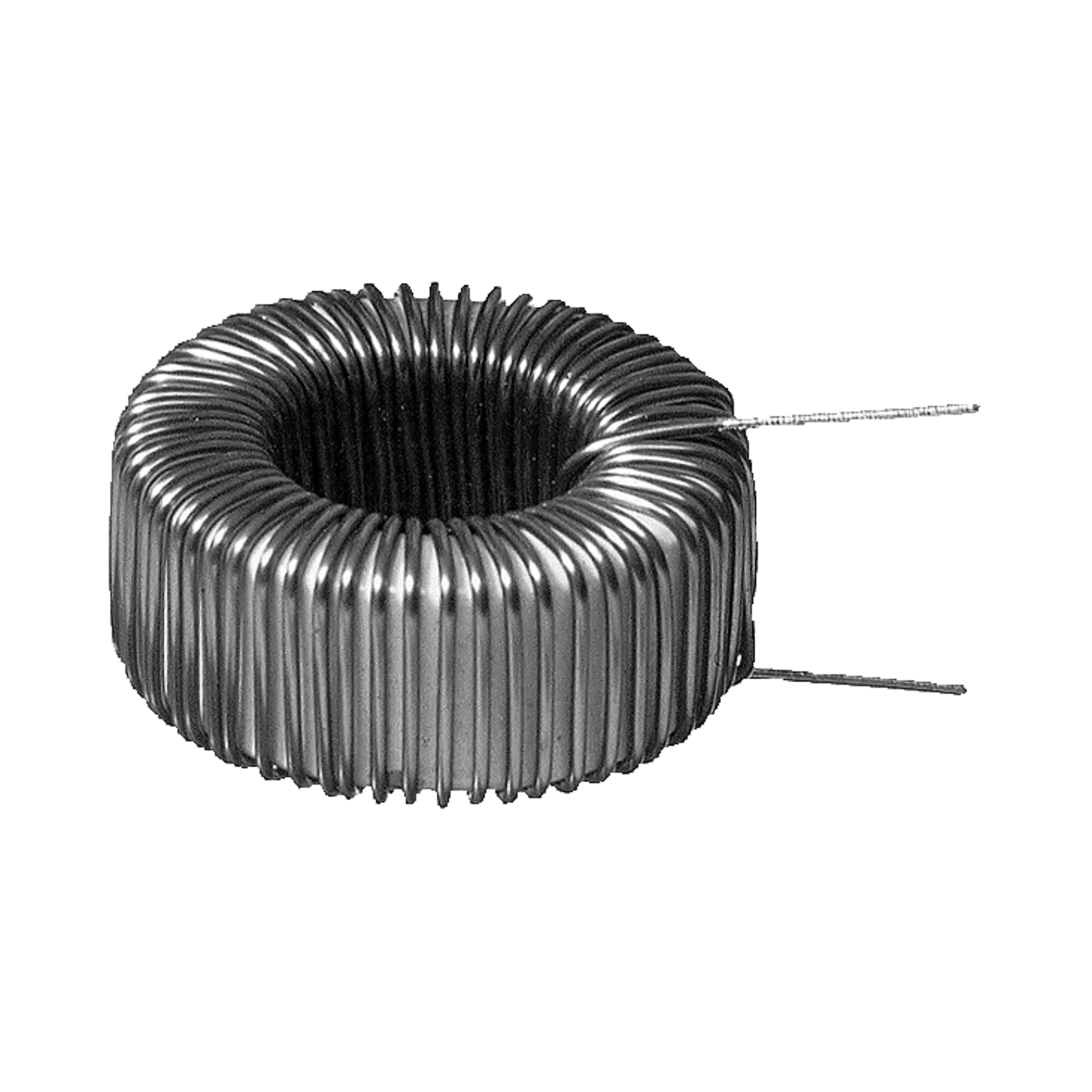

Talema Inductors storage chokes DPO 7,5A 47µH -15-15% 1.322µJ unmoulded
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
10 Pcs.
10 Pcs.
Next Stock Receipt
Week 49/2024
570 Pcs.
570 Pcs.
Planned delivery time
Ø 99 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 560 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Kind
- storage chokes
- Inductance
- 47 µH
- Inductance tolerance
- -15 %
- Nominal resistance
- 0,026 Ohm
- Storage energy
- 1,322 µJ
- Rated current
- 7.5 A
- Dimension: Width
- 14 mm
- Structure
- unmoulded
- RoHS-Conform
Specifications
Open all

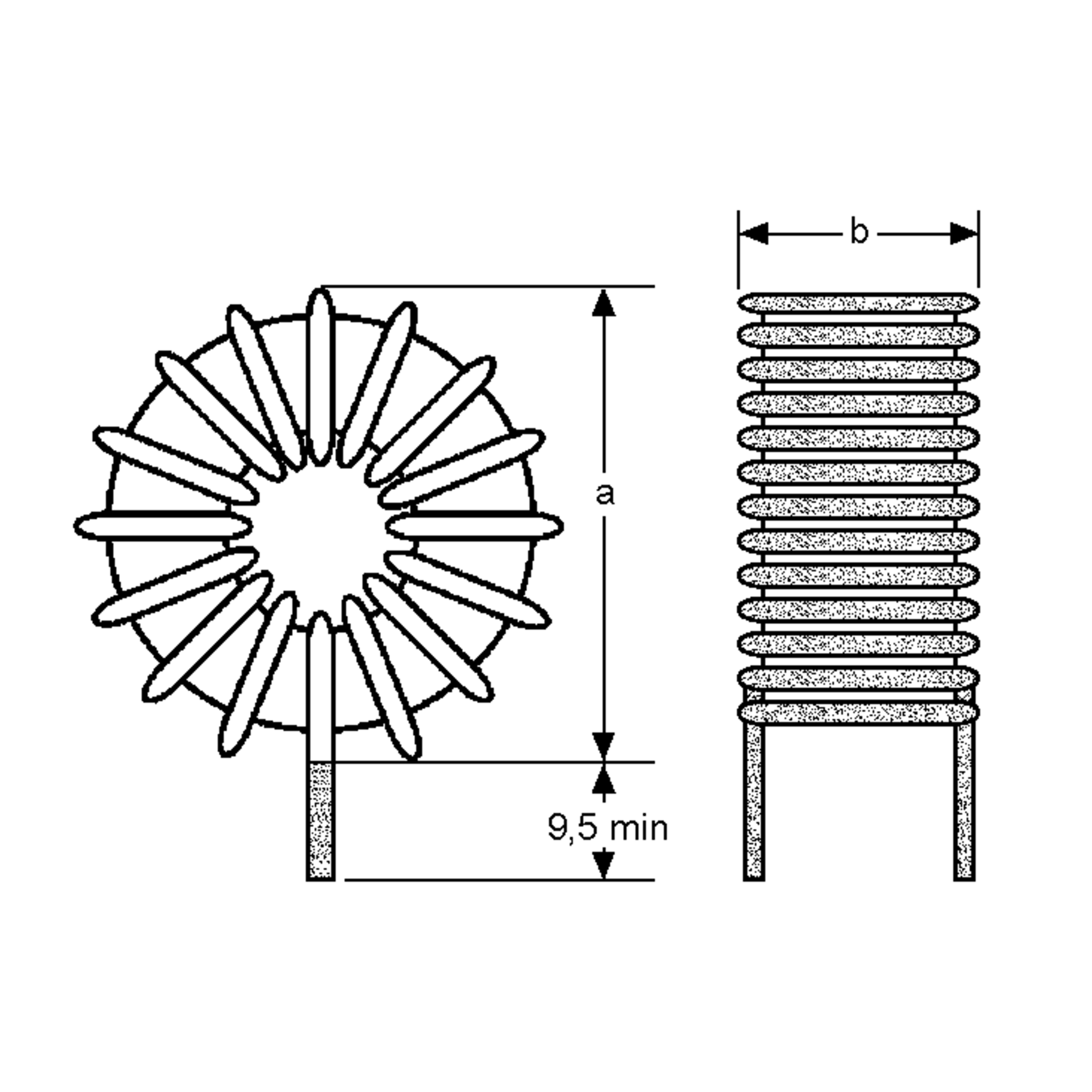

Dimensions and weights
- Diameter
- 31 mm
- Dimension: Width
- 14 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 125 °C
Technical features
- Inductance
- 47 µH
- Inductance tolerance
- -15 %
- Open circuit inductance
- 84 µH
- Nominal resistance
- 0,026 Ohm
- Rated current
- 7.5 A
- Storage energy
- 1,322 µJ
- Structure
- unmoulded
- Anzahl Wicklungen
- 1
