DPO-5.0-220

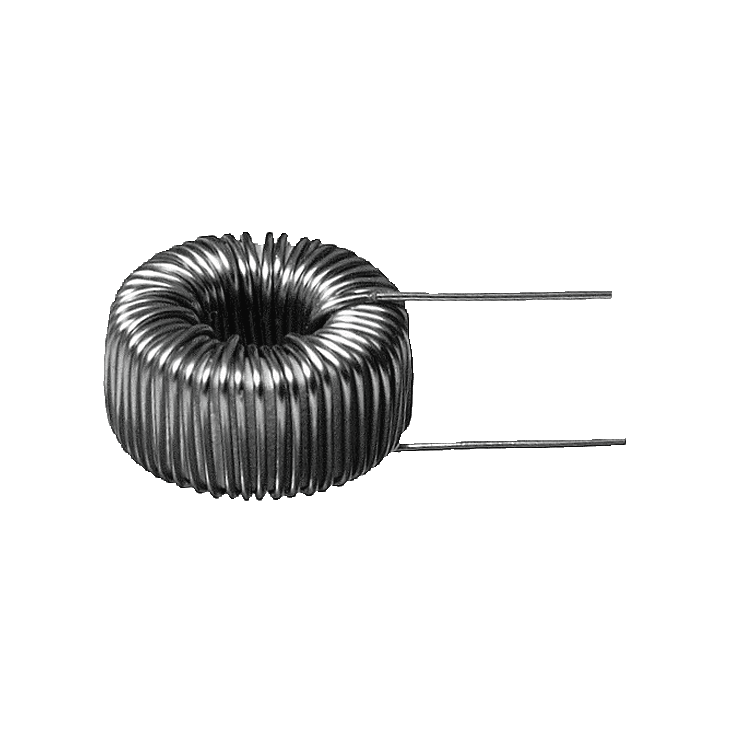

Talema Inductors storage chokes DPO 5A 220µH -15-15% 2.750µJ unmoulded
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
375 Pcs. in stock
Planned delivery time
Ø 99 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 280 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Kind
- storage chokes
- Inductance
- 220 µH
- Inductance tolerance
- -15 %
- Nominal resistance
- 0,097 Ohm
- Storage energy
- 2,750 µJ
- Rated current
- 5 A
- Dimension: Width
- 13 mm
- Structure
- unmoulded
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Diameter
- 41 mm
- Dimension: Width
- 13 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 125 °C
Technical features
- Inductance
- 220 µH
- Inductance tolerance
- -15 %
- Open circuit inductance
- 381 µH
- Nominal resistance
- 0,097 Ohm
- Rated current
- 5 A
- Storage energy
- 2,750 µJ
- Structure
- unmoulded
- Anzahl Wicklungen
- 1
