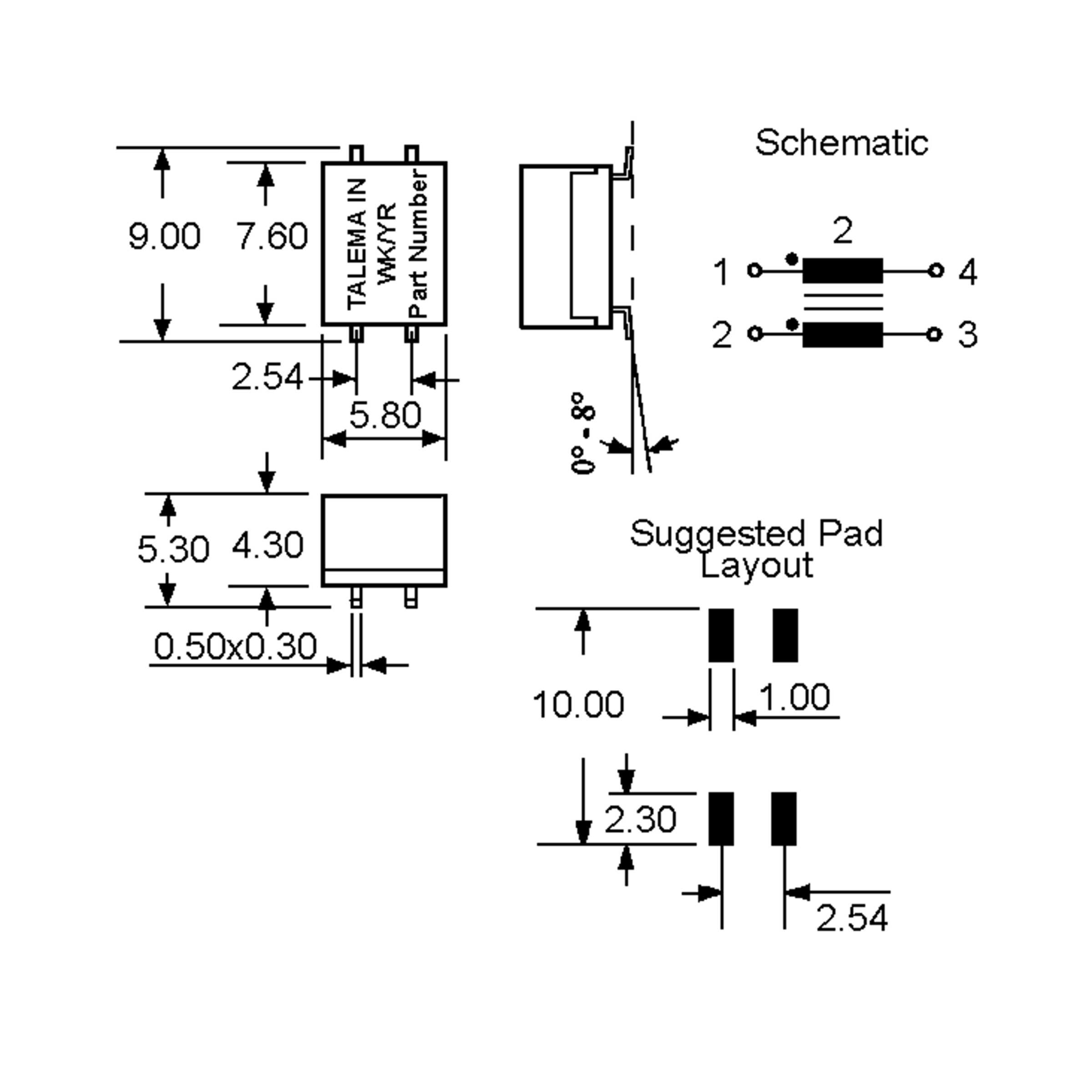

CMJ-2-102
Talema Inductors SMD CMJ 0,5A 1.000µH -30-50% 7,3mm 5,4mm 4,7mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
4.270 Pcs. in stock
Planned delivery time
Ø 99 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 5000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Inductance
- 1.000 µH
- Inductance tolerance
- -30 %
- Nominal resistance
- 250 mOhm
- Rated current
- 0.5 A
- Housing
- SMD
- Dimension: Length
- 7.3 mm
- Dimension: Width
- 5.4 mm
- Dimension: Height
- 4.7 mm
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 7.3 mm
- Dimension: Width
- 5.4 mm
- Dimension: Height
- 4.7 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Inductance
- 1.000 µH
- Inductance tolerance
- -30 %
- Nominal resistance
- 250 mOhm
- Rated current
- 0.5 A
- Anzahl Wicklungen
- 2
