AC-1040

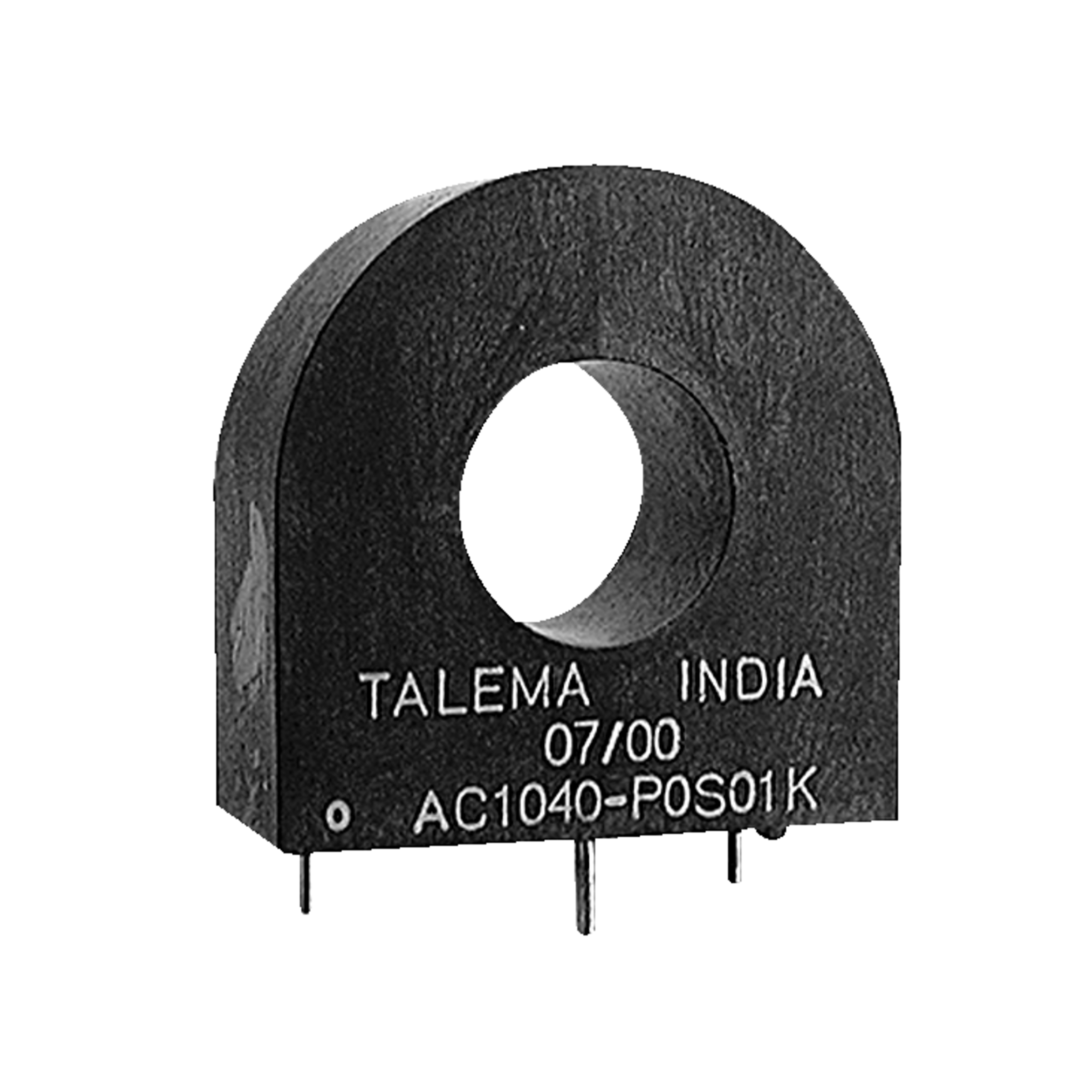

Talema Current transformer AC 40A 125A 50-60Hz 100Ohm Print assembly, cast

Manufacturer Part No.
AC-1040
Schukat Part No.
AC1040
Manufacturer
Talema
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

792 Pcs. in stock

Planned delivery time
Ø 99 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 140 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Series
AC
Winding ratio

Eingangsstrom, min.
40 A
Eingangsstrom, max.
125 A
Load resistance
100 Ohm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Talema
Series
  • AC
Product group
  • D3115 Talema Current Transformer Series AC for 50/60Hz
Type
  • Current Transformer
Housing
  • Print assembly
  • cast
Winding ratio
Application

  • AC series of current transformers operate as the sealed secondary of a current transformer, while the conductor carrying the current to be measured functions as a one turn primary. Measurement accuracy can be improved by increasing the number of primary turns.

Features

  • - Centerhole for current-carrying line
    - High output voltage

Technical features

Eingangsstrom, min.
  • 40 A
Eingangsstrom, max.
  • 125 A
Load resistance
  • 100 Ohm
Mains Frequency
  • 50 Hz
