70061K

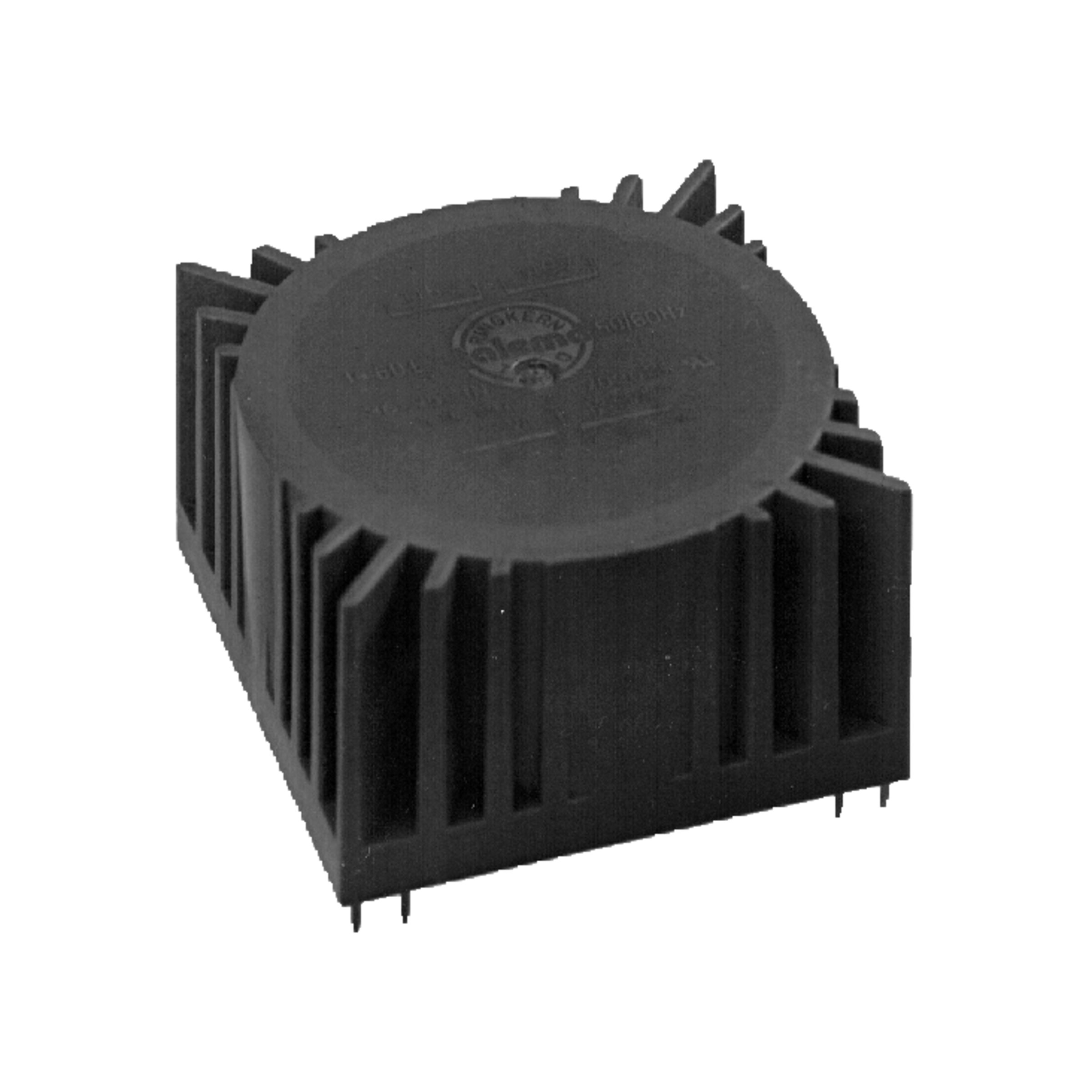

Talema Print transformer 700__K Ringkern 25VA 2x115V 2x9V
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1 Pcs.
1 Pcs.
Next Stock Receipt
Week 47/2024
69 Pcs.
69 Pcs.
Planned delivery time
Ø 99 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 36 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Print transformer
- Series
- 700__K
- Core
- Ringkern
- Performance
- 25 VA
- Primary voltage
- 2 x 115 V
- Secondary voltage
- 2 x 9 V
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 60 mm
- Dimension: Width
- 60 mm
- Dimension: Height
- 37.5 mm
Technical features
- Number of inputs
- 2
- Primary voltage
- 2 x 115 V
- Number of outputs
- 2
- Secondary voltage
- 2 x 9 V
- Secondary current
- 2 x 1.377 mA
- Efficiency
- 83 %
- Open circuit voltage
- 2 x 10,7 V
- Test voltage (prim./sec.)
- 4 kV
- No-load current, typ. (230V)
- 5 mA
- Performance
- 25 VA
- Temperature resistance class
- T 60/E
- Temperature rise at nominal load
- 28 K
- Fuse, 230V, slow-blow
- 160 mA
- Insulation class
- A(105°C); E(125°C)
Safety/Certifications
- Approvals
- BS415
- UL 5085
- VDE 0805
- Standards
- EN 61558
