21413

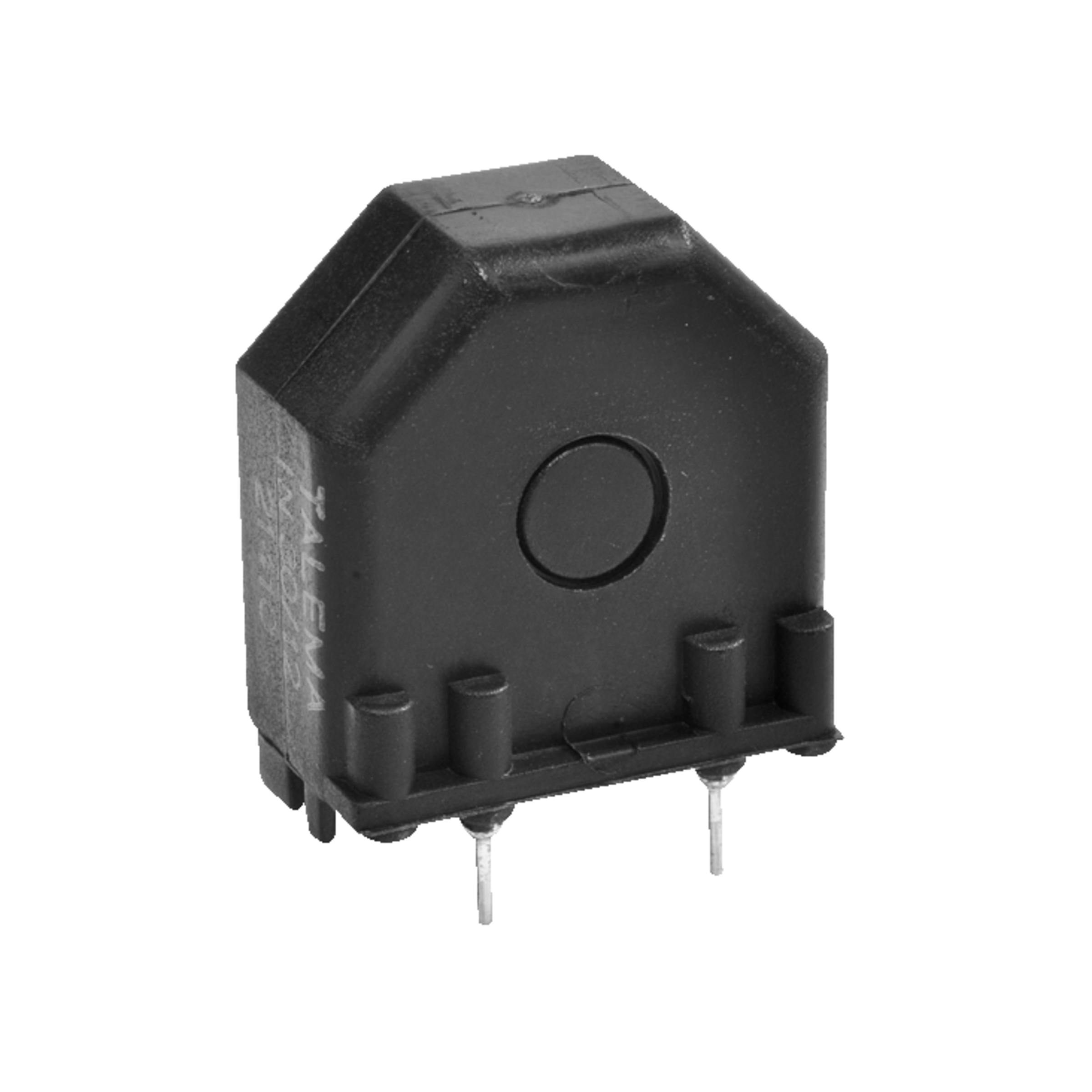

Talema Inductors Current-compensated chokes TAV 1A 27mH -30-50% vertical partially moulded
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
22 Pcs. in stock
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 27.06.2023
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Kind
- Current-compensated chokes
- Inductance
- 27 mH
- Inductance tolerance
- -30 %
- Nominal resistance
- 600 mOhm
- Rated current
- 1 A
- Structure
- partially moulded
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 125 °C
- Climate category
- DIN GKC (-40 … +125°C)
Technical features
- Inductance
- 27 mH
- Inductance tolerance
- -30 %
- Nominal resistance
- 600 mOhm
- Test voltage
- 1.500 V / 50 Hz, 2 s
- Rated Voltage
- 250 V AC
- Rated current
- 1 A
- Structure
- partially moulded
- Anzahl Wicklungen
- 2
- Humidity
- Category C
