21412

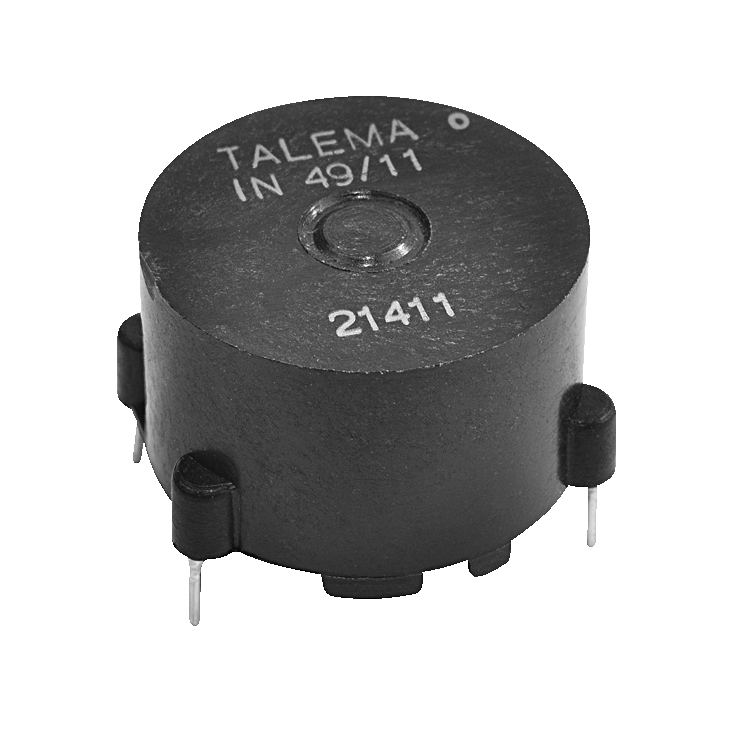

Talema Inductors Current-compensated chokes TAH 4A 2,7mH -30-50% horizontal partially moulded
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1 Pcs.
1 Pcs.
Planned delivery time
Ø 99 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Kind
- Current-compensated chokes
- Inductance
- 2,7 mH
- Inductance tolerance
- -30 %
- Nominal resistance
- 45 mOhm
- Rated current
- 4 A
- Structure
- partially moulded
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Wire diameter
- 0.8 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 125 °C
- Climate category
- DIN GKC (-40 … +125°C)
Technical Features
- Inductance
- 2,7 mH
- Inductance tolerance
- -30 %
- Nominal resistance
- 45 mOhm
- Test voltage
- 1.500 V / 50 Hz, 2 s
- Rated Voltage
- 250 V AC
- Rated current
- 4 A
- Structure
- partially moulded
- Number of Windings
- 2
- Humidity
- Category C
