19860-P2S02

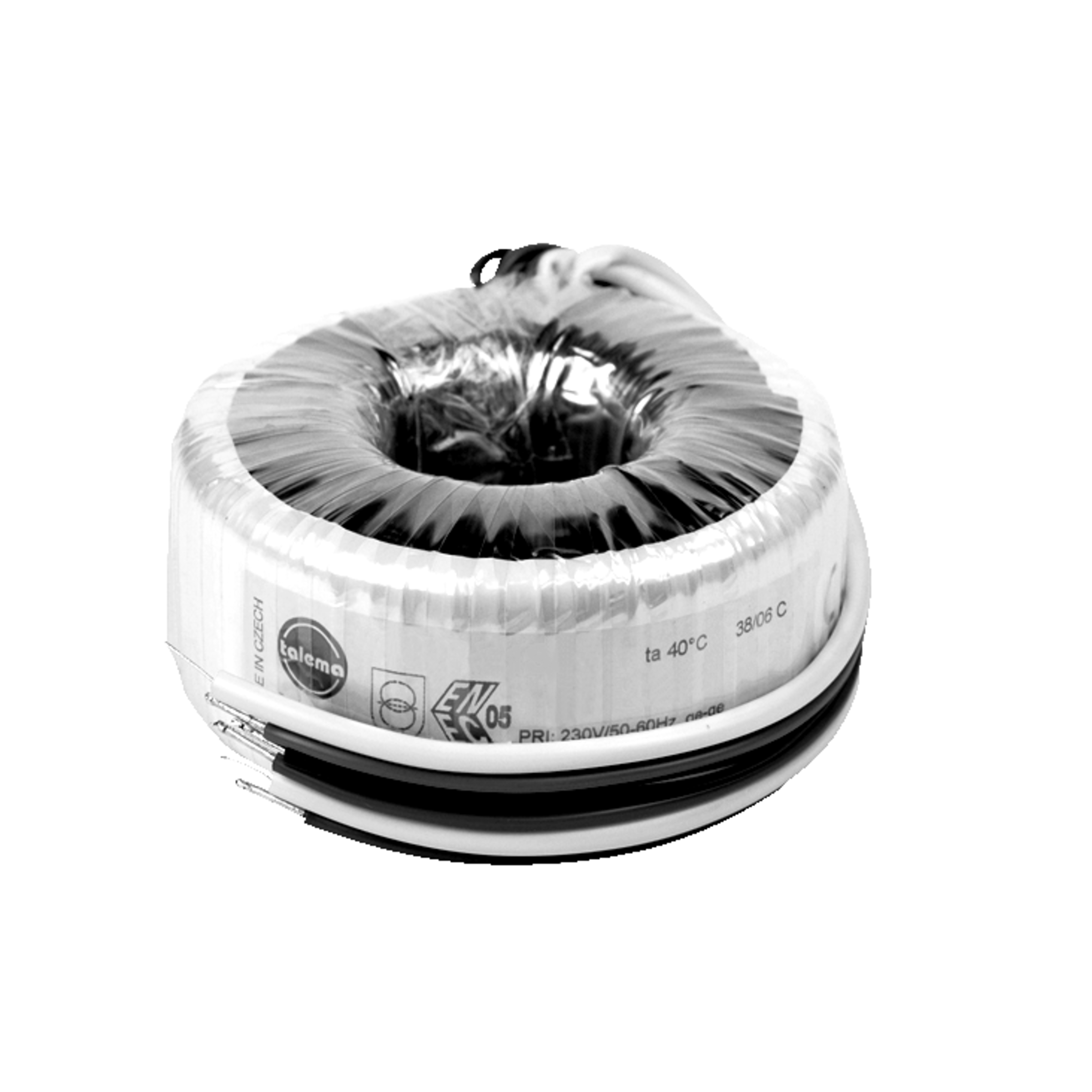

Talema Transformer TRT50 Ringkern 50VA 2x115V 2x12V
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
21 Pcs. in stock
Planned delivery time
Ø 13 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Transformer
- Series
- TRT50
- Core
- Ringkern
- Performance
- 50 VA
- Primary Voltage
- 2 x 115 V
- Secondary Voltage
- 2 x 12 V
- RoHS-Conform
Specifications
Open all

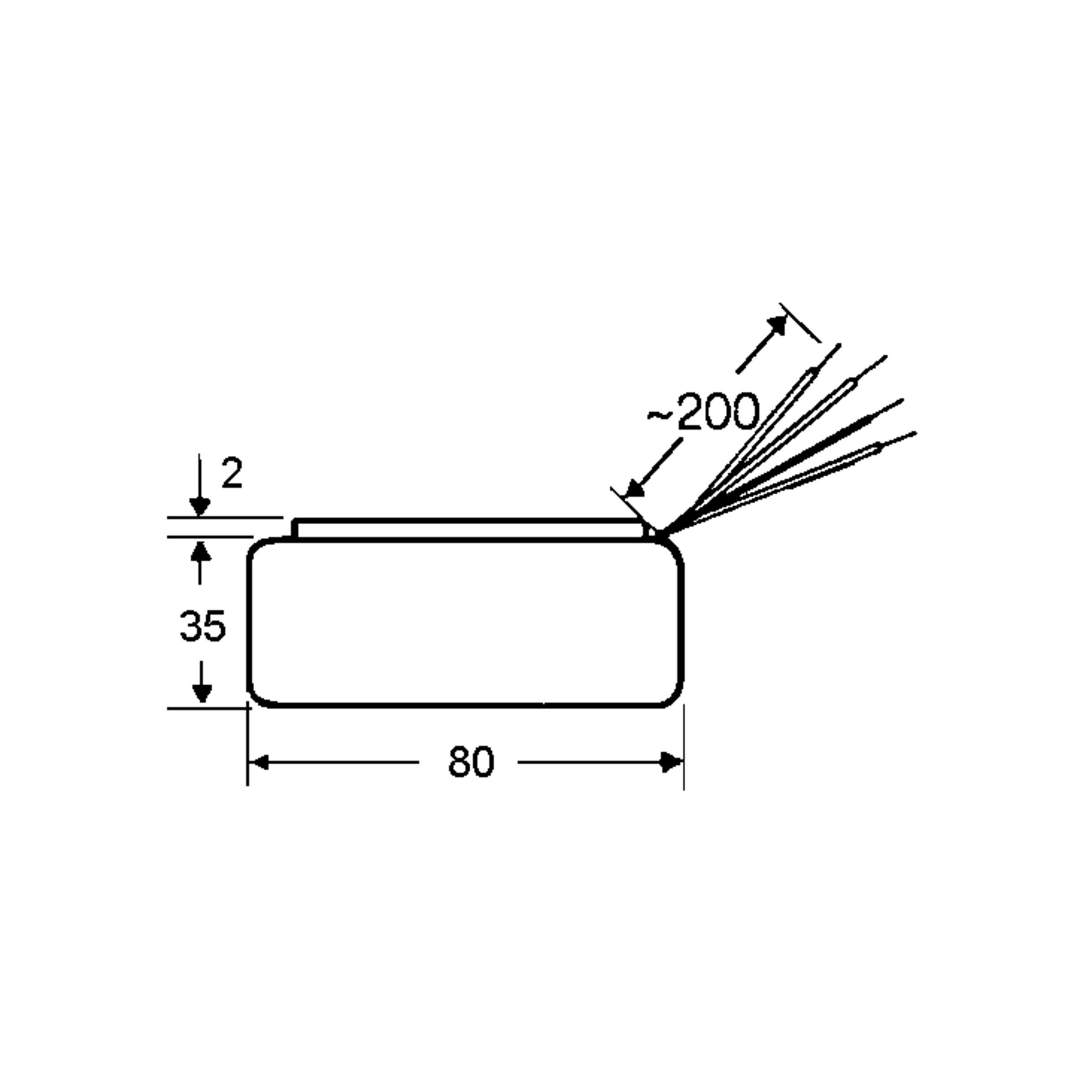

Dimensions and Weights
- Dimension: Height
- 35 mm
- Diameter
- 80 mm
- Weight
- 700 g
Technical Features
- Number of inputs
- 2
- Primary Voltage
- 2 x 115 V
- Number of outputs
- 2
- Secondary Voltage
- 2 x 12 V
- No-load current, typ. (230V)
- 5 mA
- Performance
- 50 VA
- Core loss, typ.
- 0.43 W
- Copper loss, typical (120°C)
- 6.6 W
Safety/Certifications
- Approvals
- CE
- ENEC05
- Kema Keur
- UL
