19451-P1S02

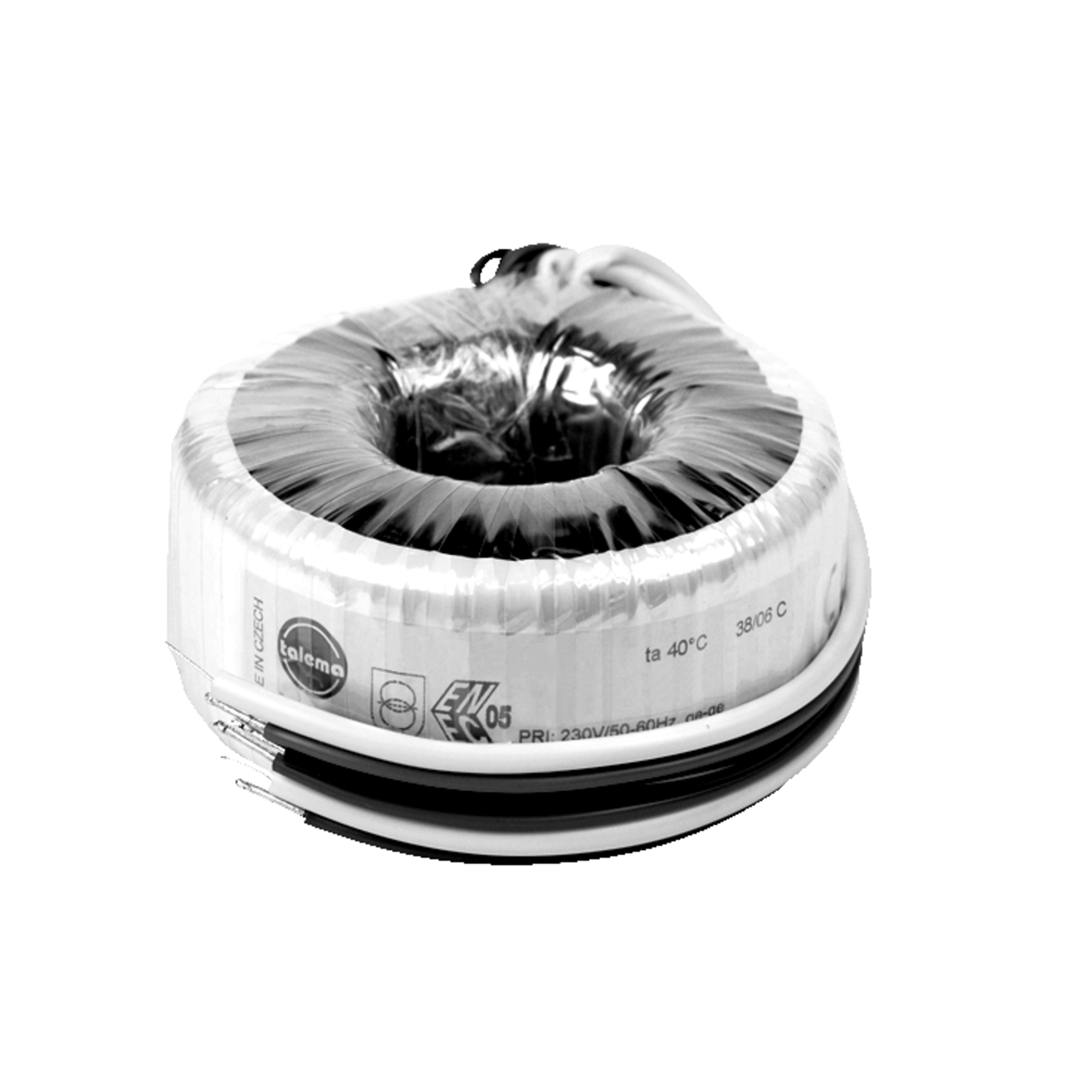

Talema Transformer TRT300 Ringkern 300VA 230V 2x25V
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
8 Pcs. in stock
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 01.07.2023
Article discontinued
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Transformer
- Series
- TRT300
- Core
- Ringkern
- Performance
- 300 VA
- Primary Voltage
- 230 V
- Secondary Voltage
- 2 x 25 V
- RoHS-Conform
Specifications
Open all

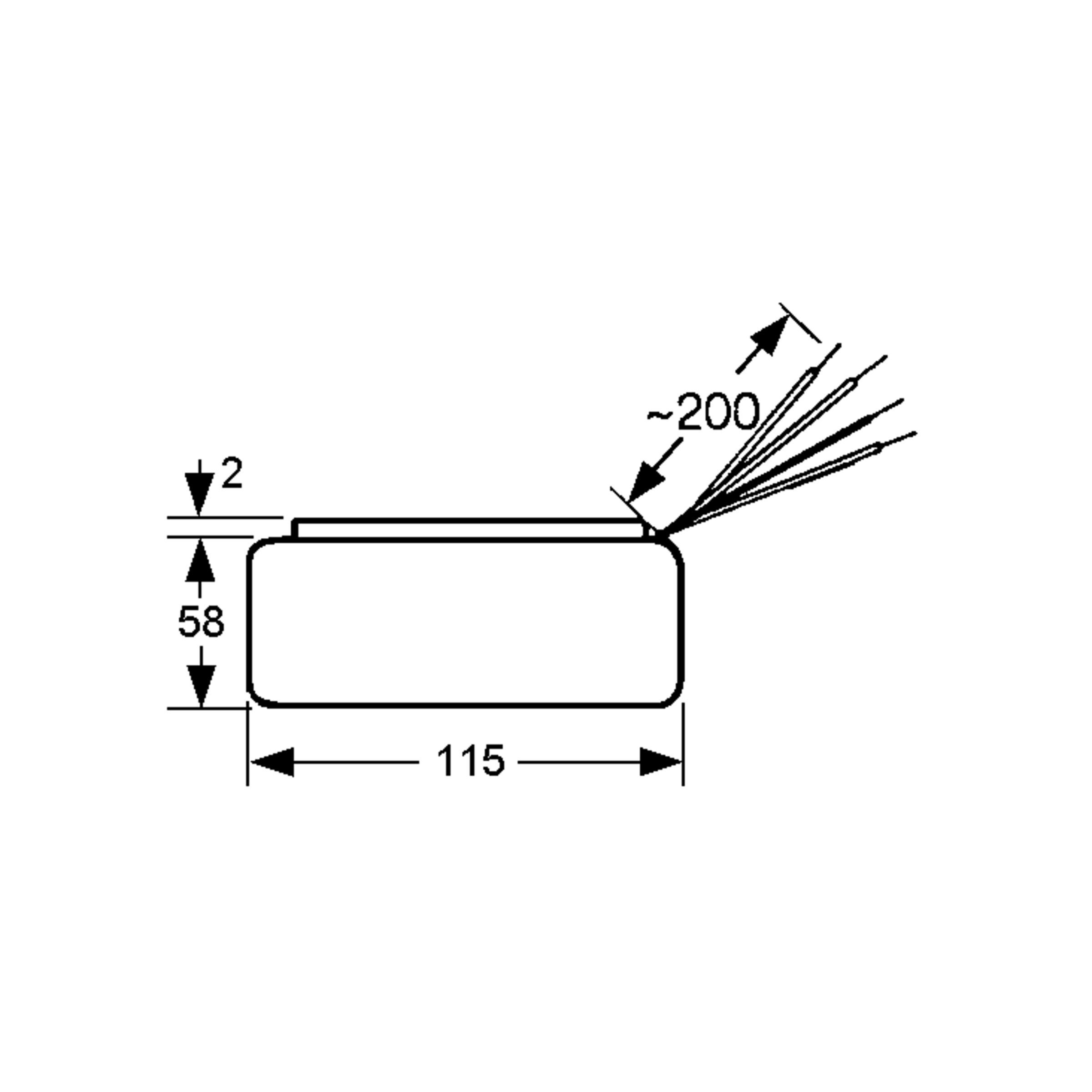

Dimensions and Weights
- Dimension: Height
- 58 mm
- Diameter
- 115 mm
- Weight
- 2,500 g
Technical Features
- Number of inputs
- 1
- Primary Voltage
- 230 V
- Number of outputs
- 2
- Secondary Voltage
- 2 x 25 V
- No-load current, typ. (230V)
- 17 mA
- Performance
- 300 VA
- Core loss, typ.
- 1.7 W
- Copper loss, typical (120°C)
- 22.5 W
Safety/Certifications
- Approvals
- CE
- ENEC05
- Kema Keur
