19306-P1S02

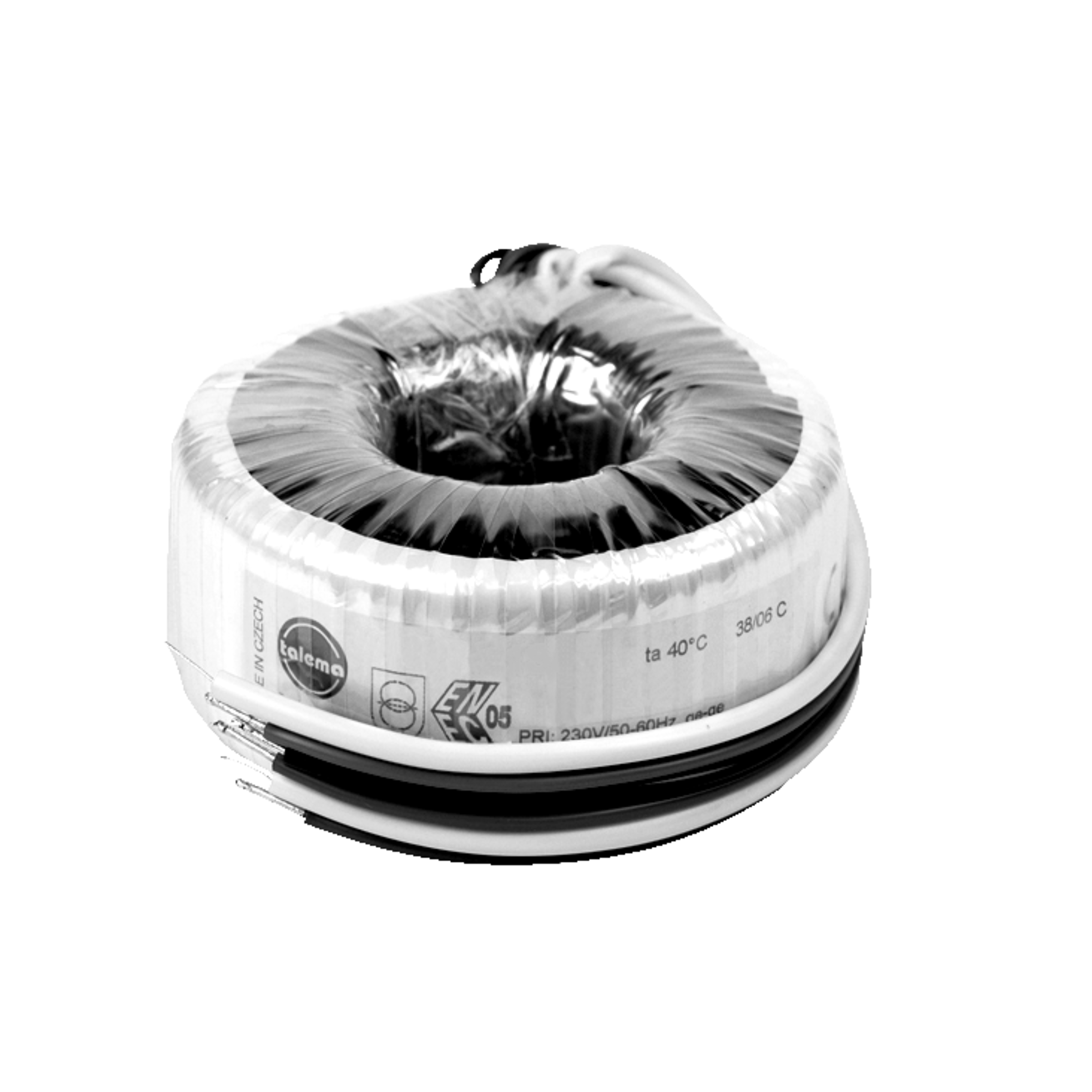

Talema Transformer TRT225 Ringkern 225VA 230V 2x30V
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Back Order
0 Pcs.
0 Pcs.
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 11.07.2023
Article discontinued
Data Sheet
ECAD Model
Prices
Manufacturer bundle 250 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 250 or multiple of 250)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Transformer
- Series
- TRT225
- Core
- Ringkern
- Performance
- 225 VA
- Primary voltage
- 230 V
- Secondary voltage
- 2 x 30 V
- RoHS-Conform
Specifications
Open all

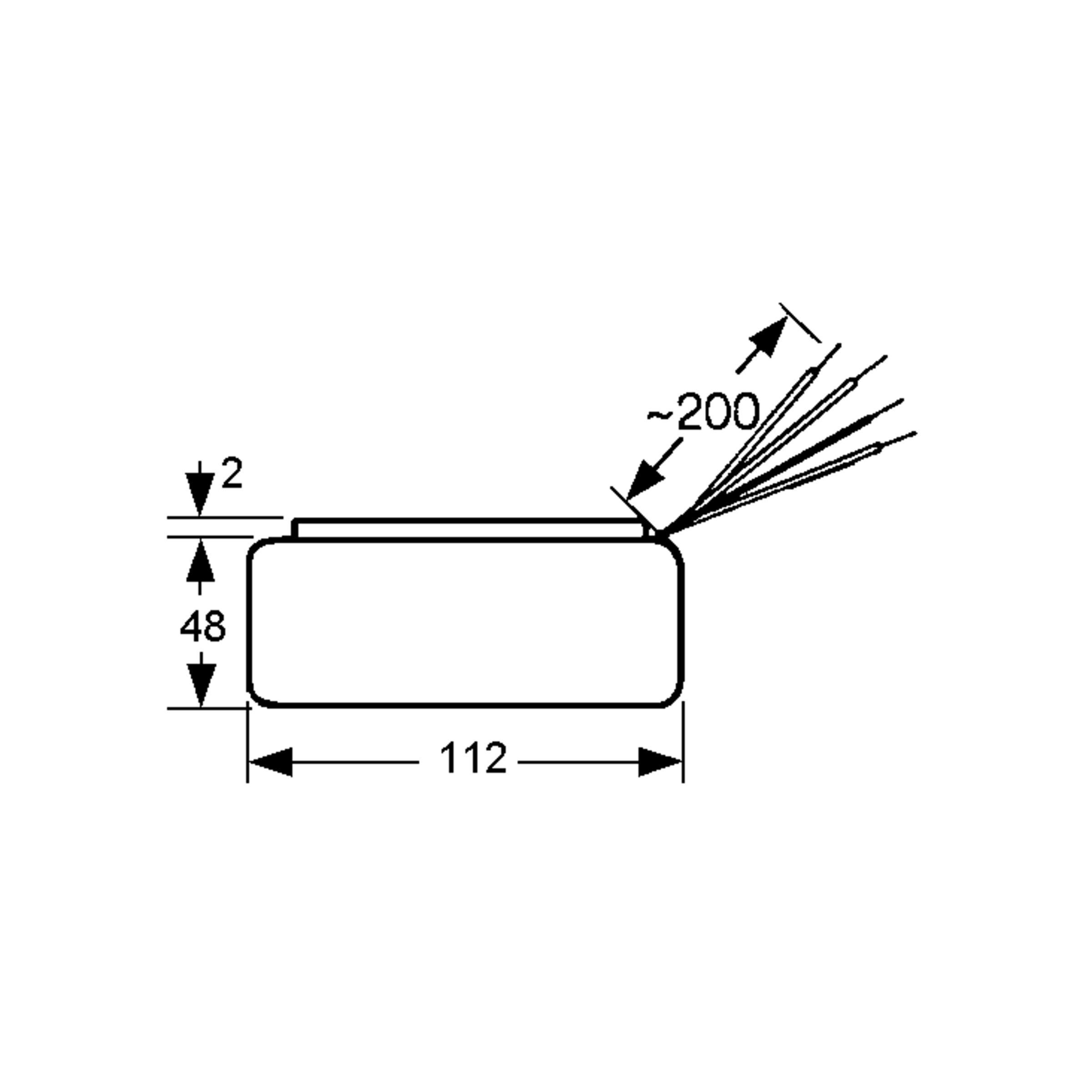

Dimensions and weights
- Dimension: Height
- 48 mm
- Diameter
- 112 mm
- Weight
- 2,100 g
Technical features
- Number of inputs
- 1
- Primary voltage
- 230 V
- Number of outputs
- 2
- Secondary voltage
- 2 x 30 V
- No-load current, typ. (230V)
- 14 mA
- Performance
- 225 VA
- Core loss, typ.
- 1.3 W
- Copper loss, typical (120°C)
- 21.3 W
Safety/Certifications
- Approvals
- CE
- ENEC05
- Kema Keur
