TSM60NE048PW C0G

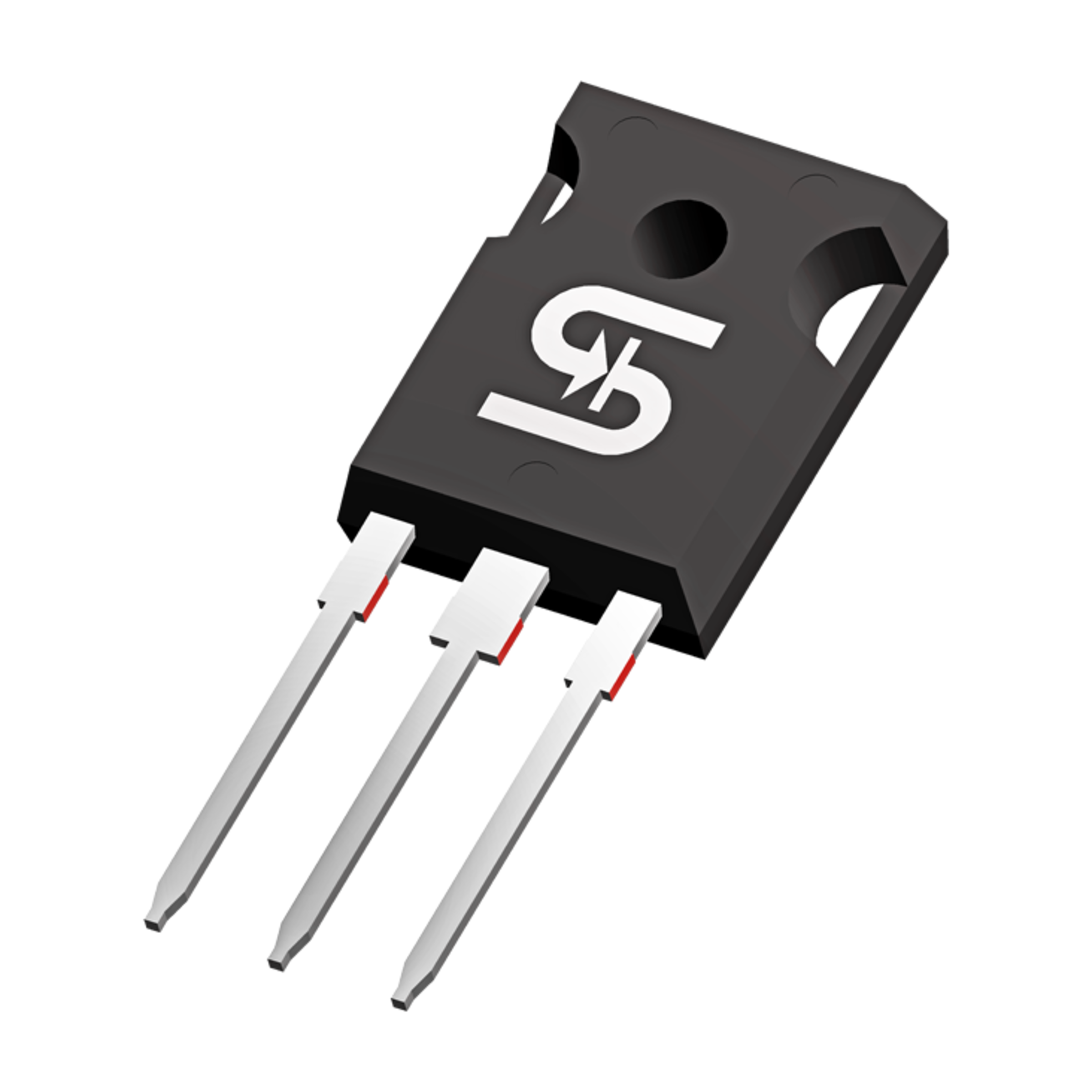

Taiwan Semiconductor THT Power MOSFET N-Channel 431W 48mOhm  TO-247

Image similar
NEW
Manufacturer Part No.
TSM60NE048PW C0G
Schukat Part No.
TSM60NE048PW C0G
Manufacturer
Taiwan Semiconductor
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Back Order
900 Pcs.
Planned delivery time
Ø 45 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 300 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 900 or multiple of 300)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Number of Channels
1
Polarity
N-Channel
(Pd) Power Dissipation
431 W
(RDS(on)) Drain-Source Widerstand max.
48 mOhm
Manufacturer Package
TO-247
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Taiwan Semiconductor
Type
  • Power MOSFET
Series
  • TSM60NE_
Product group
  • U8380 TSC Power MOSFETs TSM_CF, TSM_CI, TSM_CZ ITO220_, TO220
Packaging
  • Tube
Assembly Type
  • THT
Pin Count
  • 3
Manufacturer Package
  • TO-247

Operating conditions

Operating Temperature Min.
  • -55 °C
Operating Temperature Max.
  • 150 °C
Storage Temperature Min.
  • -55 °C
Storage Temperature Max.
  • 150 °C

Electrical properties

(Uds) Max. Drain-Source Voltage Q1
  • 600 V
(Uds) Max. Drain-Source Voltage
  • 600 V
  • 600 V
(Ugs) Gate-Source Voltage Q1
  • 61 V
(Ugs) Gate-Source Voltage
  • 61
  • 61
(Ugs th) Gate-Source Threshold Voltage Q1
  • 30 V
(Ugs th) Gate-Source Threshold Voltage
  • 30 V
  • 30 V
Number of Channels
  • 1
Polarity
  • N-Channel
(Pd) Power Dissipation
  • 431 W
(RDS(on)) Drain-Source Widerstand max.
  • 48 mOhm
(Qg) Gate Charge Q1
  • 114 nC
(Qg) Gate Charge
  • 114 nC
  • 114 nC
