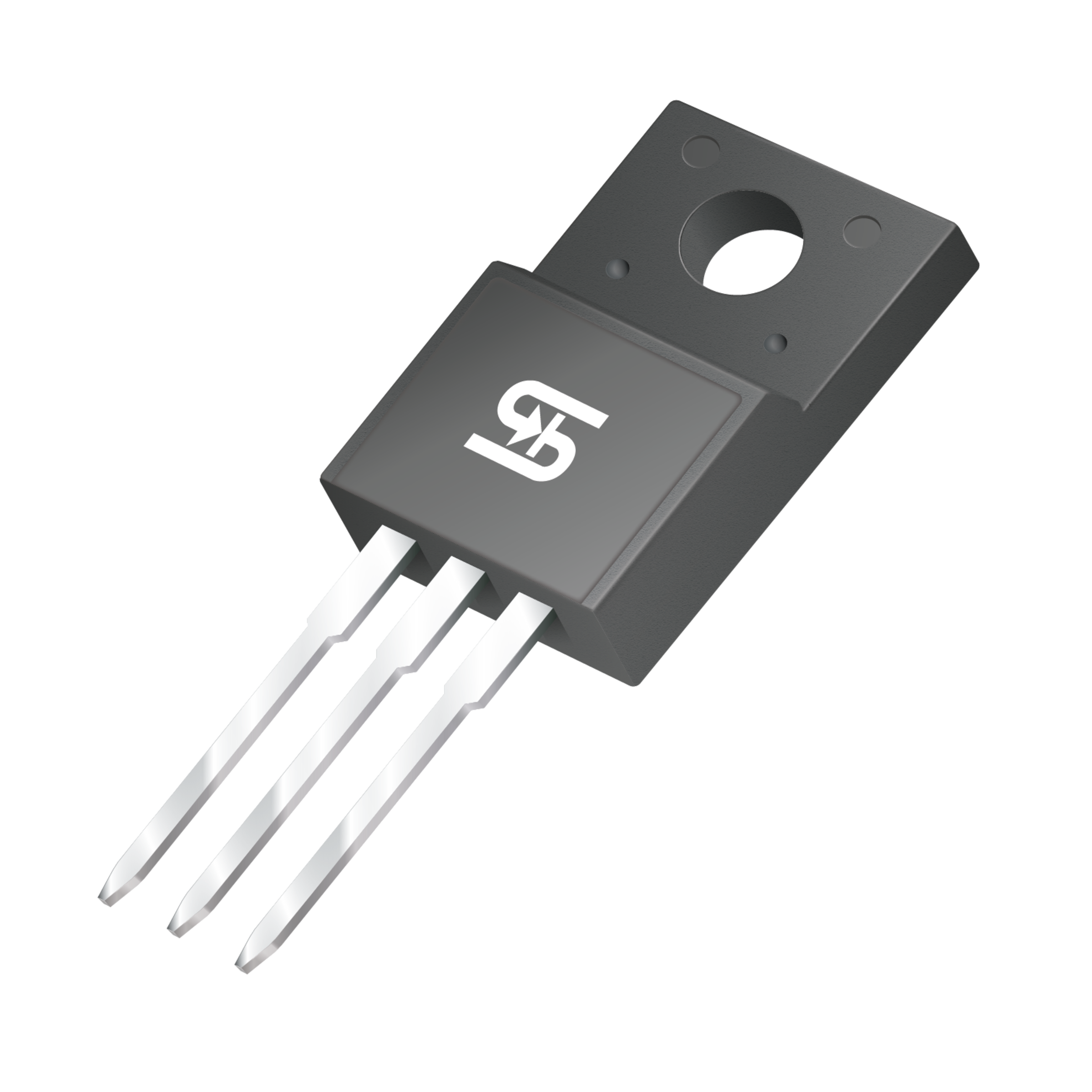

TSM60NC165CI C0G

Taiwan Semiconductor THT Power MOSFET N-Channel 24A 89W 165mOhm  ITO-220

Image similar
Manufacturer Part No.
TSM60NC165CI C0G
Schukat Part No.
TSM60NC165CI C0G
Manufacturer
Taiwan Semiconductor
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Back Order
4.000 Pcs.
Planned delivery time
Ø 9 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 2000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 4000 or multiple of 2000)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Number of Channels
1
Polarity
N-Channel
(Id) Continuous Drain Current
24 A
24 A
(Pd) Power Dissipation
89 W
(RDS(on)) Drain-Source Widerstand max.
165 mOhm
Manufacturer Package
ITO-220
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Taiwan Semiconductor
Type
  • Power MOSFET
Series
  • TSM060NC
Product group
  • U8380 TSC Power MOSFETs TSM_CF, TSM_CI, TSM_CZ ITO220_, TO220
Packaging
  • Tube
Assembly Type
  • THT
Pin Count
  • 3
Manufacturer Package
  • ITO-220

Operating conditions

Operating Temperature Min.
  • -55 °C
Operating Temperature Max.
  • 150 °C
Storage Temperature Min.
  • -55 °C
Storage Temperature Max.
  • 150 °C

Electrical properties

(Uds) Max. Drain-Source Voltage Q1
  • 600 V
(Uds) Max. Drain-Source Voltage
  • 600 V
  • 600 V
(Id) Continuous Drain Current Q1
  • 24 A
(Id) Continuous Drain Current
  • 24 A
  • 24 A
(Ugs) Gate-Source Voltage Q1
  • 30 V V
(Ugs) Gate-Source Voltage
  • 30 V
  • 30 V
Number of Channels
  • 1
Polarity
  • N-Channel
(Pd) Power Dissipation
  • 89 W
(RDS(on)) Drain-Source Widerstand max.
  • 165 mOhm
(Qg) Gate Charge Q1
  • 38 nC
(Qg) Gate Charge
  • 38 nC
  • 38 nC
