TSM2N7002AKDCU6 RFG

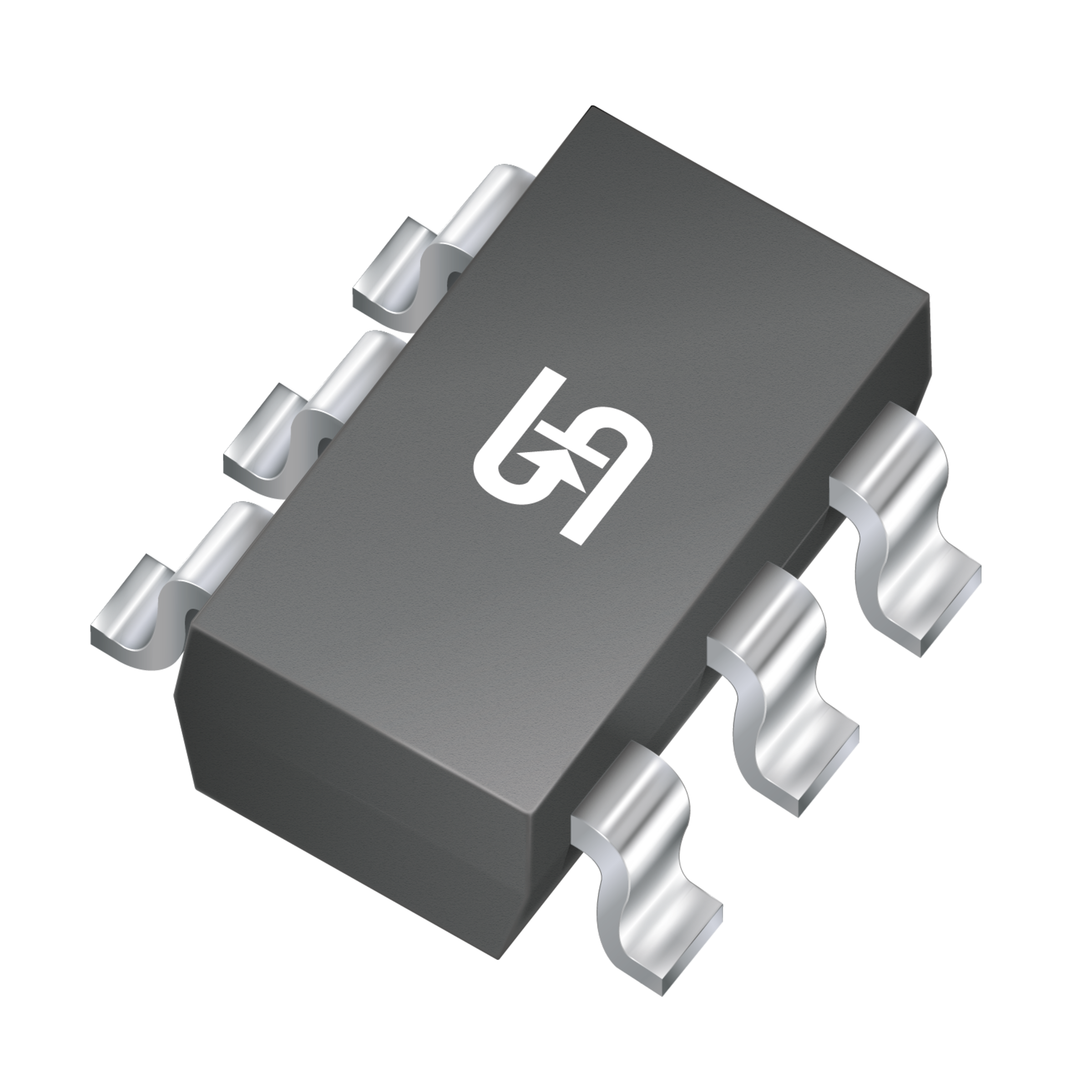

Taiwan Semiconductor SMD/SMT Power MOSFET N-Channel 0,22A 0,24W 3.000mOhm SOT-363
Manufacturer Part No.
TSM2N7002AKDCU6 RFG
Schukat Part No.
TSM2N7002AKDCU6RFG
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.500 Pcs. in stock
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 20.05.2026
Article discontinued
Data Sheet
ECAD Model
Prices
Manufacturer bundle 3000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Number of Channels
- 2
- Polarity
- N-Channel
- (Id) Continuous Drain Current
- 0,22 A
- (Pd) Power Dissipation
- 0.24 W
- (RDS(on)) Drain-Source Resistance Max.
- 3,000 mOhm
- Manufacturer Package
- SOT-363
- RoHS-Conform
Specifications
Open all
Operating conditions
- Barrier Layer temperature, min. (TJ)
- -55 °C
- Barrier Layer Temperature, max. (TJ)
- 150 °C
- Storage Temperature Min.
- -55 °C
- Storage Temperature Max.
- 150 °C
Electrical Properties
- (Uds) Max. Drain-Source Voltage
- 60 V
- (Id) Continuous Drain Current
- 0,22 A
- (Ugs) Gate-Source Voltage
- 20 V
- (Ugs th) Gate-Source Threshold Voltage
- 1,5 V
- Number of Channels
- 2
- Polarity
- N-Channel
- (Pd) Power Dissipation
- 0.24 W
- (RDS(on)) Drain-Source Resistance Max.
- 3,000 mOhm
- (Qg) Gate Charge
- 0,67 nC
